Filament non-woven drainage geotextiles are used in water conservancy, highway and other projects

  • Filament nonwoven roadbed geotextileMaterial: PET
    Color: white, black, green, orange, statistics coloration customization
    Specifications: 100g-800g
    Length: 50-200m
    Certificate: CE/ISO9001
    Reinforced and constant non-woven geotextile

  • If there are any special requirements, please inform our customer service personnel (color, length, width)




Contact Now E-Mail Telephone WhatsApp
Product Details

                           Filament non-woven drainage geotextiles are used in water conservancy, highway and other projects

Product introduction;

Long Fiber Geotextile is a versatile and highly effective material used in various civil engineering and construction projects. It is made from high-quality polyester or polypropylene fibers that are mechanically bonded to form a resilient and durable fabric.

Long Fiber Geotextile is designed to provide reinforcement, separation, filtration, and drainage capabilities in a wide range of applications. Its long fibers offer superior tensile strength, tear resistance, and dimensional stability, making it ideal for challenging environments.

 Filament non-woven drainage geotextiles are used in water conservancy, highway and other projects Filament non-woven drainage geotextiles are used in water conservancy, highway and other projects

Product characteristics;

1.High tensile strength and tear resistance

2.Excellent filtration properties

3.Superior dimensional stability

4.Resistant to biological and chemical degradation

5.Easy installation and handling

6.Cost-effective solution for various civil engineering projects

Filament non-woven drainage geotextiles are used in water conservancy, highway and other projects Filament non-woven drainage geotextiles are used in water conservancy, highway and other projects

Application:

1.Road and Highway Construction: Long Fiber Geotextile is widely used in road and highway construction for soil reinforcement, separation, and filtration. It helps in stabilizing the soil, preventing lateral movement, and maintaining the integrity of the roadbed.

2.Railroad Construction: Long Fiber Geotextile is used in railway projects to improve the stability and load-bearing capacity of the soil. It prevents the migration of fine particles, reduces settlement, and reinforces the railway tracks.

3.Erosion Control: Long Fiber Geotextile is used in erosion control measures to prevent soil erosion and stabilize slopes. It is commonly used in shoreline protection, riverbank stabilization, and coastal engineering projects.

4.Landfill and Environmental Projects: Long Fiber Geotextile is used in landfill construction to provide separation between waste materials and the underlying soil. It aids in drainage and filtration, preventing contamination of surrounding soil and groundwater.

5.Retaining Walls and Embankments: Long Fiber Geotextile is used in the construction of retaining walls and embankments to provide reinforcement and stability. It helps to distribute loads and reduce settlement, preventing potential failures.

6.Stormwater Management: Long Fiber Geotextile is used in stormwater management systems to filter out sediment and prevent clogging of drainage systems. It allows for efficient water flow and helps in removing pollutants before the water is discharged.

7.Agriculture and Landscaping: Long Fiber Geotextile is used in agricultural applications for soil stabilization, weed control, and erosion prevention. It can also be used for landscaping purposes to separate different soil layers and prevent mixing.

8.Sports Field Construction: Long Fiber Geotextile is used in the construction of sports fields to provide drainage and filtration capabilities. It helps to maintain the stability and performance of the field by preventing waterlogged areas.

Road construction, highway water conservancy Spunbonded nonwoven Filament non-woven drainage geotextiles are used in water conservancy, highway and other projects


Specifications

Filament Needled Non-woven Geotextile Technical  Specifications ( GB/T17639-2008)

Type
TW100TW150TW200TW250TW300TW350TW400TW450TW500

Nominal Breaking Strength KN/m

4.5

7.510152025304050

MD/CD Break Strength≥KN/m

4.5

7.5

10

15

20

25

30

40

50

Elongation At Break%

                                                  40%-80%

CBR KN

0.8

1.61.92.93.95.36.47.98.5

MD/CD Tearing Strength

0.14

0.21

0.28

0.42

0.56

0.70

0.82

1.10

1.25

Thickness(mm)

0.8

1.21.62.22.83.44.25.56.8

Unit Weight Tolerance%

-5

Eos90(95),mm

0.05-0.2

Vertical Peability Coefficient cm/s

K*(10-1~10-3)K=1.0-9.9

Width Deviation

-0.5

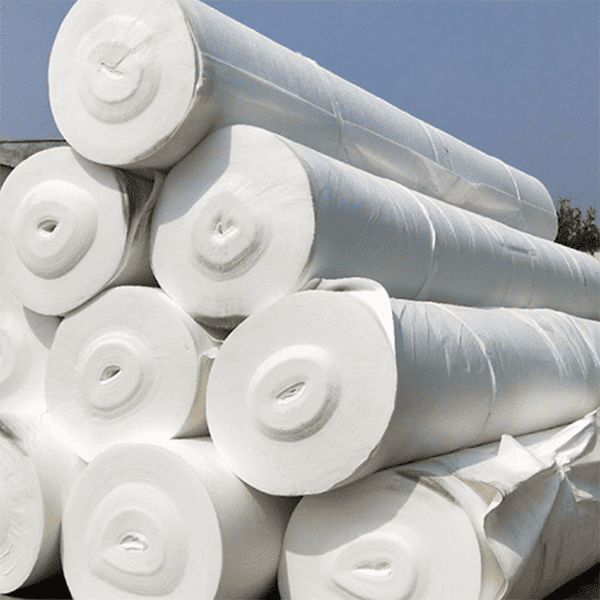

Packing of Top Quality Nonwoven Polypropylene Geotextile Price

You can freely choose PE film or PP woven bag for outer packaging, and there are paper tubes of different sizes inside the product for you to choose freely.

Road construction, highway water conservancy Spunbonded nonwoven Road construction, highway water conservancy Spunbonded nonwoven




  • 100

Staple Fiber Needled Non-woven Geotextile Technical  Specifications ( GB/T17638-1998)

No.

Item

Specifications

Note

100

150

200

250

300

350

400

450

500

600

800

1

Unit area mass  deviation

-8

-8

-8

-8

-7

-7

-7

-7

-6

6

-6



2

Thickness mm≥

0.9

1.3

1.7

2.1

2.4

2.7

3.0

3.3

3.6

4.1

5.0

3

Width deviation

-0.5

4

Breaking strength

2.5

4.5

6.5

8.0

9.5

11

12.5

14.0

16.0

19.0

25.0

Vertical and horizontal

5

Elongation at break %

20-100

6

CBR bursting strength

0.3

0.6

0.8

1.2

1.4

1.8

2.1

2.4

2.7

3.2

4.0



7

Equivalent aperture

0.07-0.2



8

Vertical permeability  coefficient

K*(10-1~10-3

K=1.0-9.9

9

Tear strength

0.08

0.12

0.16

0.20

0.24

0.28

0.33

0.38

0.42

0.46

0.6

Vertical and  horizontal
