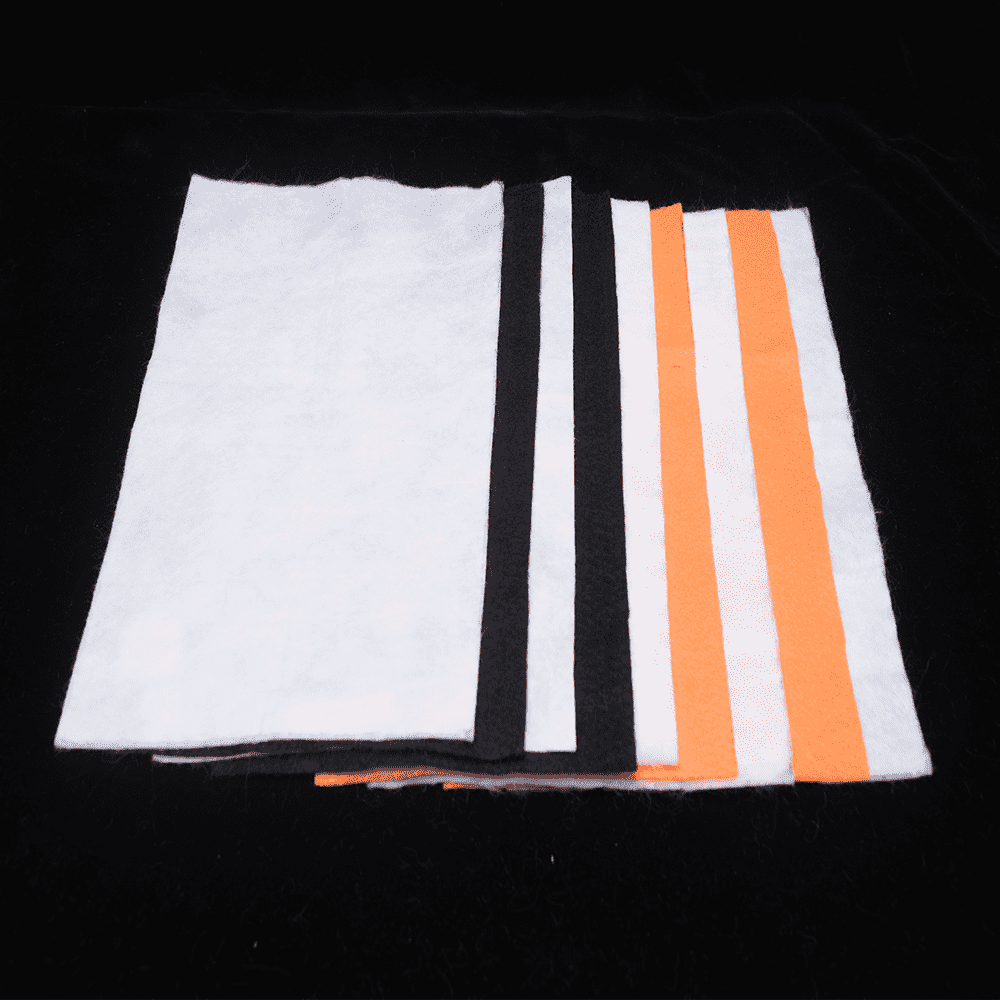

High quality geotextile for road construction
Spunbonded nonwoven
Material: PET/PP
Colors: white, black, green, orange, personalized for statistical coloring
Specification: 100g-800g
Length: 50-100m
Certificate: CE/ISO9001
Support personalized hues and width lengths. Please inform purchaser carrier if there are any different necessities
Fishpond permeable Filament geotextile
Product introduction;
Tunnel geotextile is a unique kind of geotechnical cloth extensively used in tunnel engineering. It is commonly made of artificial fibers such as polypropylene or polyester and undergoes extraordinary processing.
Product characteristics;
1.Dispersion of soil gravity: Tunnel geotextiles can forestall horizontal and vertical displacement of the soil by way of dispersing the soil gravity, thereby lowering soil agreement and lateral deformation.
2.Enhancing the power of soil: Tunnel geotextile can decorate the tensile and shear electricity of soil, enhance the balance and bearing ability of the soil.
3.Drainage and filtration function: Tunnel geotextile has fantastic drainage and filtration functions, which can efficaciously do away with water and impurities from the soil, forestall harm and blockage of the soil layer
Application scope;
4.Strengthening tunnel surrounding rock: Tunnel geotextiles can be used to decorate the steadiness and bearing potential of tunnel surrounding rock.
5.Isolation and Protection of Tunnel Structures: Tunnel geotextiles can be used to isolate and defend tunnel structures, stopping soil erosion and damage.
6.Drainage and anti-seepage: Tunnel geotextiles can be used for tunnel drainage and anti-seepage, keeping dryness and steadiness internal the tunnel
7.Soil steadiness and slope protection: Tunnel geotextiles can be used for soil steadiness and slope safety to stop soil landslides and collapses.
Specifications
Staple Fiber Needled Non-woven Geotextile Technical Specifications ( GB/T17638-1998) | |||||||||||||
No. | Item | Specifications | Note | ||||||||||
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |||
1 | Unit area mass deviation | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 |
|
2 | Thickness mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
3 | Width deviation | -0.5 | |||||||||||
4 | Breaking strength | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | Vertical and horizontal |
5 | Elongation at break % | 20-100 | |||||||||||
6 | CBR bursting strength | 0.3 | 0.6 | 0.8 | 1.2 | 1.4 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 |
|
7 | Equivalent aperture | 0.07-0.2 |
| ||||||||||
8 | Vertical permeability coefficient | K*（10-1～10-3） | K=1.0-9.9 | ||||||||||
9 | Tear strength | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Vertical and horizontal |
Packing of Top Quality Nonwoven Polypropylene Geotextile Price
You can freely choose PE film or PP woven bag for outer packaging, and there are paper tubes of different sizes inside the product for you to choose freely.
Staple Fiber Needled Non-woven Geotextile Technical Specifications ( GB/T17638-1998) | |||||||||||||
No. | Item | Specifications | Note | ||||||||||
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |||
1 | Unit area mass deviation | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | 6 | -6 |
|
2 | Thickness mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
3 | Width deviation | -0.5 | |||||||||||
4 | Breaking strength | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | Vertical and horizontal |
5 | Elongation at break % | 20-100 | |||||||||||
6 | CBR bursting strength | 0.3 | 0.6 | 0.8 | 1.2 | 1.4 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 |
|
7 | Equivalent aperture | 0.07-0.2 |
| ||||||||||
8 | Vertical permeability coefficient | K*（10-1～10-3） | K=1.0-9.9 | ||||||||||
9 | Tear strength | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Vertical and horizontal |
