High Strength Road Stabilization Fabric Woven PET Geotextile
High Strength Road Stabilization Fabric Woven PET Geotextile-Staple fiber needle-punched nonwoven geotextiles use PET staple fibers as the main raw material and are produced by non-woven technology. Good flexibility, corrosion resistance and oxidation resistance.
●Material: PET fiber
●Color: white, black, gray
●Length: 50m-100m
●Width: 0.5-6m
●Certificate: CE/ISO9001
●Type: Acupuncture
High Strength Road Stabilization Fabric Woven PET Geotextile
PET non-woven geotextiles have good anti-seepage and corrosion resistance, so that geotextiles are widely used in railways, highways, tunnels, and coastal tidal flat projects for isolation, reverse filtration, reinforcement, protection, and drainage.
Product Features：
Good antimicrobial performance, no damage to microorganisms;
The thickness of the product is suitable, convenient to mix with asphalt pavement, and shape an isolation layer after combining with sticky layer oil, which has the characteristic of water-resistant and warmth preservation;
Good flexibility and corrosion resistance
Due to its mild weight, it can be packed in accordance to sure requirements, and it is very handy for transportation, storage and construction.
Application：

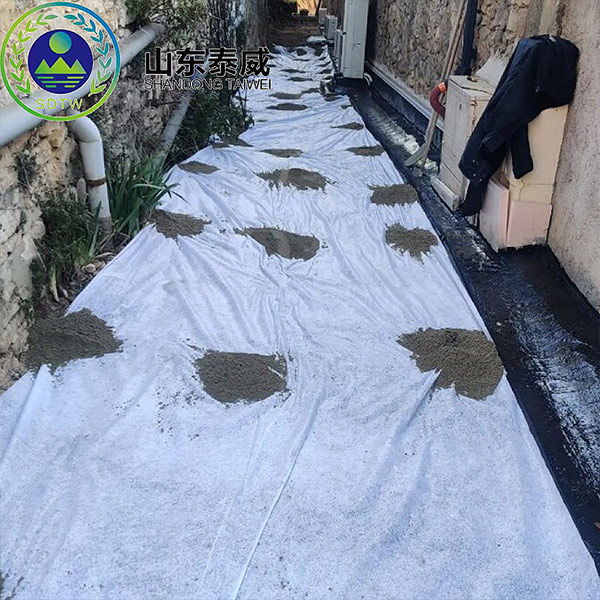

The product has excellent water permeability, filterability and durability, and can be widely used in railways, highways, sports halls, dams, hydraulic structures, tunnels, coastal tidal flats, reclamation, environmental protection and other projects.
Function:
Utilize the true air permeability and water permeability of geotextiles to let water go with the flow through, thereby successfully keeping the misplaced sand.
Widely used in cement concrete pavement and roadbed, mild weight, excessive strength, excessive tensile strength, appropriate for each tough and bendy pavement, lengthy provider life, helps to stop street reflection cracks;
Use geotextiles to beautify the tensile power and deformation resistance of the soil, beautify the steadiness of the constructing structure, and enhance the fantastic of the soil.
Specifications
Staple Fiber Needled Non-woven Geotextile Technical Specifications ( GB/T17638-1998) | |||||||||||||
No. | Item | Specifications | Note | ||||||||||
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |||
1 | Unit area mass deviation | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 |
|
2 | Thickness mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
3 | Width deviation | -0.5 | |||||||||||
4 | Breaking strength | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | Vertical and horizontal |
5 | Elongation at break % | 20-100 | |||||||||||
6 | CBR bursting strength | 0.3 | 0.6 | 0.8 | 1.2 | 1.4 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 |
|
7 | Equivalent aperture | 0.07-0.2 |
| ||||||||||
8 | Vertical permeability coefficient | K*（10-1～10-3） | K=1.0-9.9 | ||||||||||
9 | Tear strength | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Vertical and horizontal |

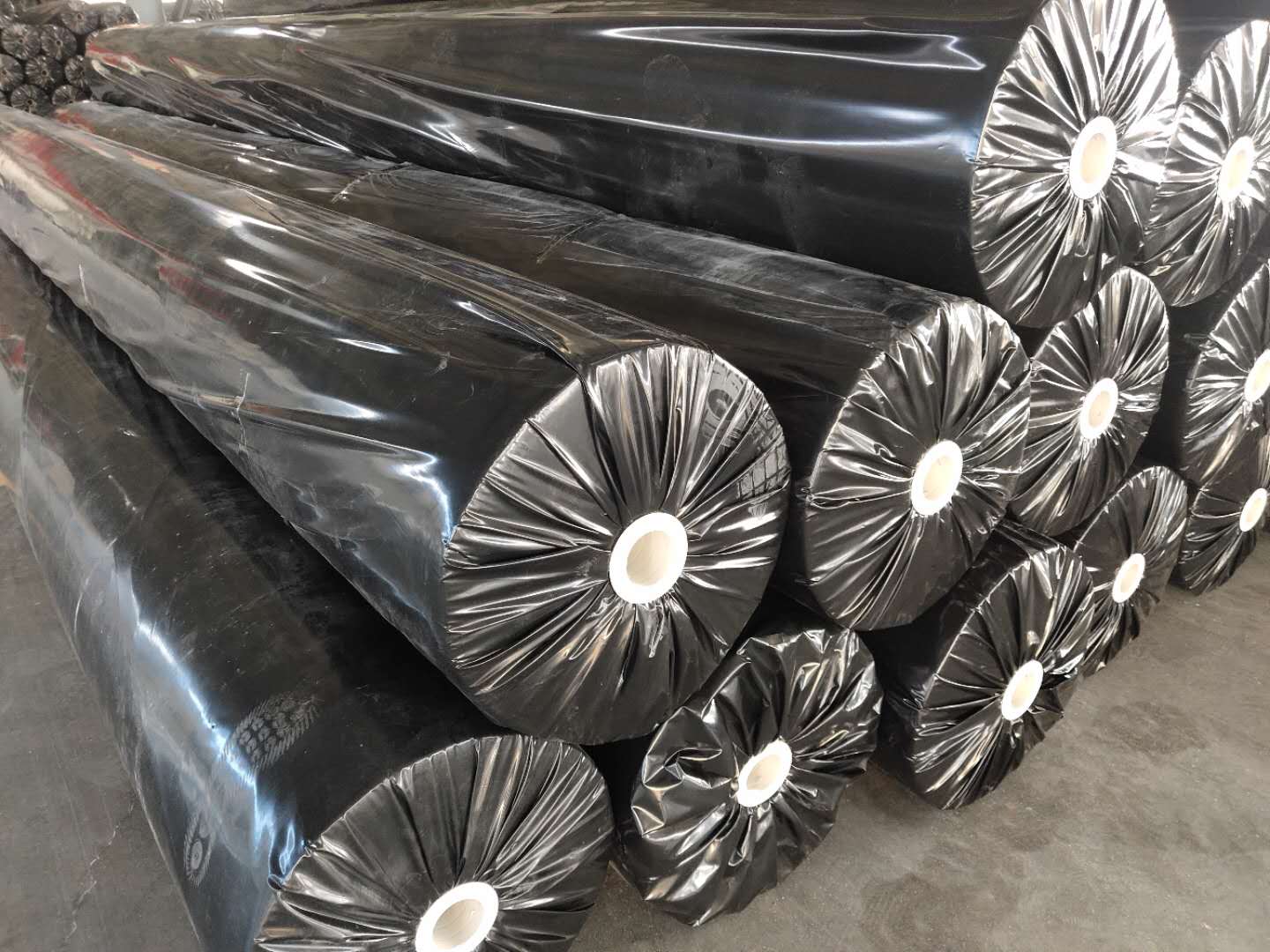

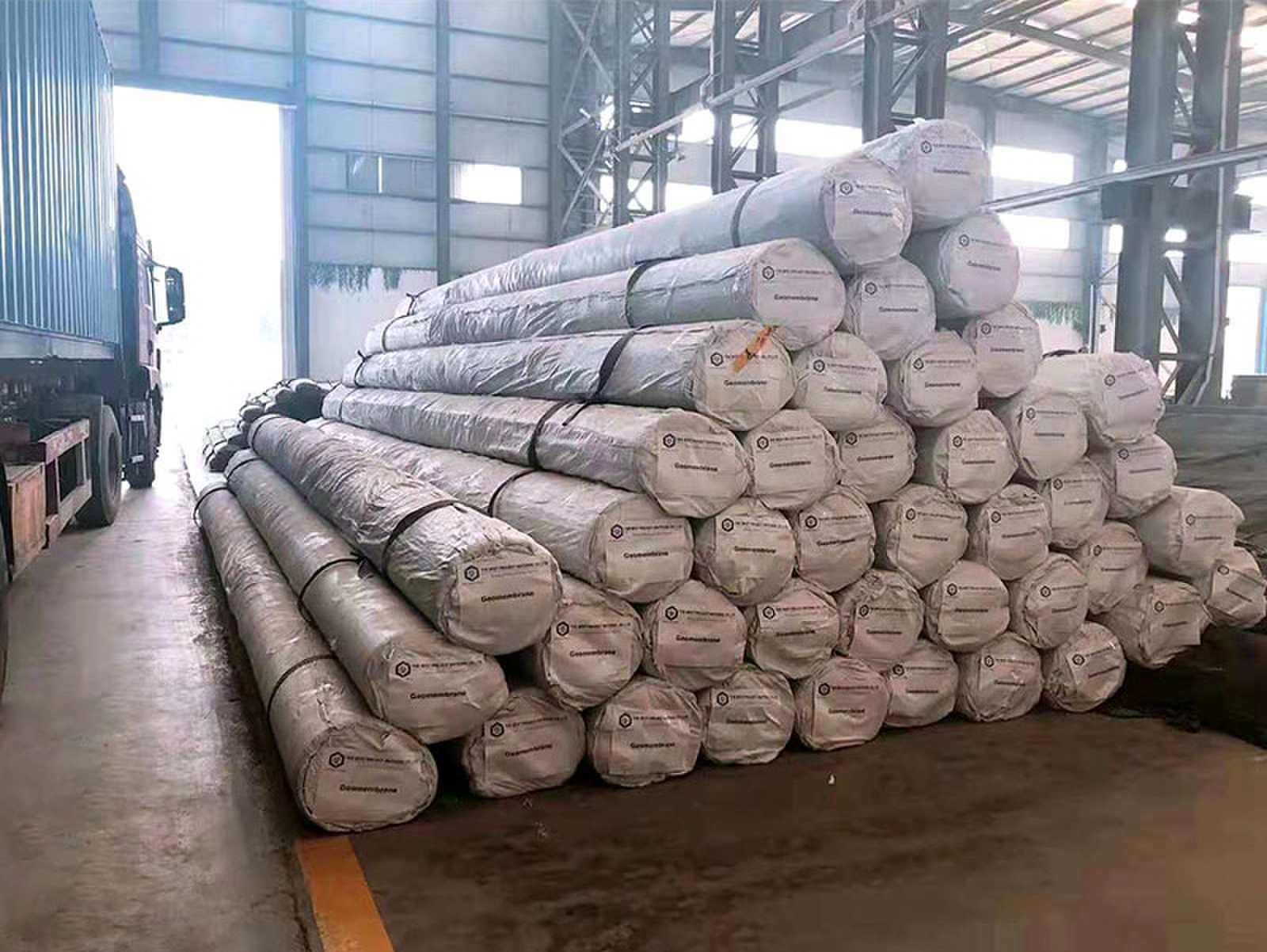

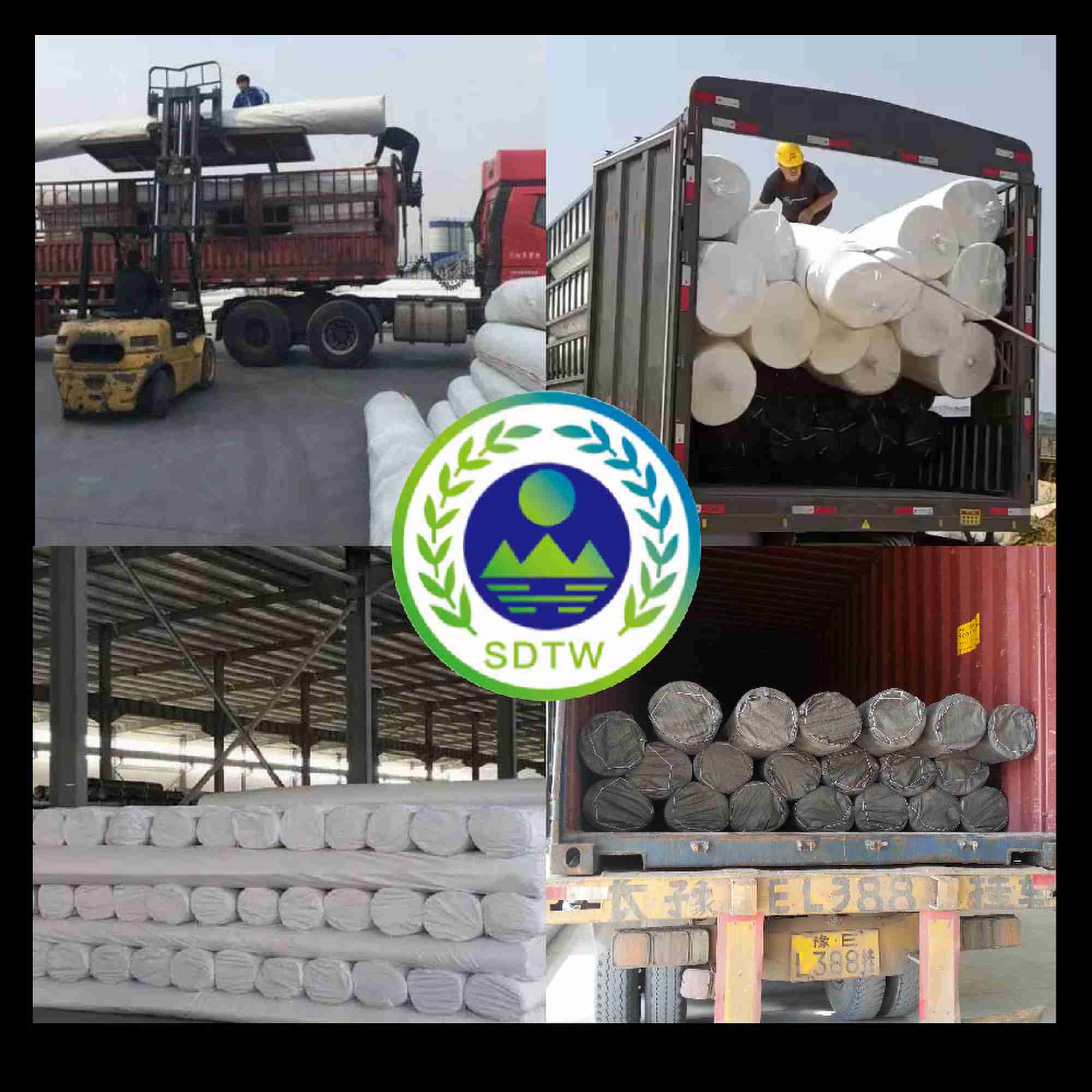

Packing of High Strength Road Stabilization Fabric Woven PET Geotextile
You can freely choose PE film or PP woven bag for outer packaging, and there are paper tubes of different sizes inside the product for you to choose freely.
FAQ
Q: Can I have samples?
A: Yes, we are happy to send free samples to check the quality, and "you only have to bear" the shipping cost.
Q: What's the lead time for samples?
A: Current sample needs 1 day, customized sample needs 5-7 days,
Q: What express do you use to send samples?
A: We usually ship samples by DHL, FEDEX. It usually takes 5-7 days to arrive.
Q: What's the payment terms?
A: Our usual payment term is T/T Paypal.
Q: Can you produce according to my standard?
A: Yes, we can customize for you according to your size.
Q: How about the delivery time?
A: Usually the production time is 10-15 days. It will be determined by the order quantity.
Staple Fiber Needled Non-woven Geotextile Technical Specifications ( GB/T17638-1998) | |||||||||||||
No. | Item | Specifications | Note | ||||||||||
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |||
1 | Unit area mass deviation | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | 6 | -6 |
|
2 | Thickness mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
3 | Width deviation | -0.5 | |||||||||||
4 | Breaking strength | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | Vertical and horizontal |
5 | Elongation at break % | 20-100 | |||||||||||
6 | CBR bursting strength | 0.3 | 0.6 | 0.8 | 1.2 | 1.4 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 |
|
7 | Equivalent aperture | 0.07-0.2 |
| ||||||||||
8 | Vertical permeability coefficient | K*（10-1～10-3） | K=1.0-9.9 | ||||||||||
9 | Tear strength | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Vertical and horizontal |
