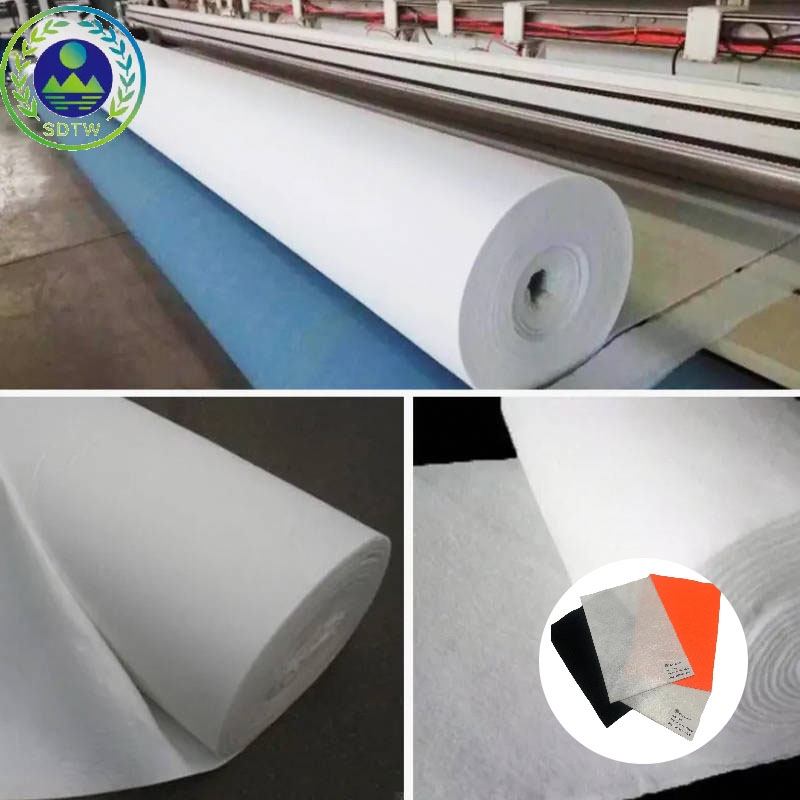

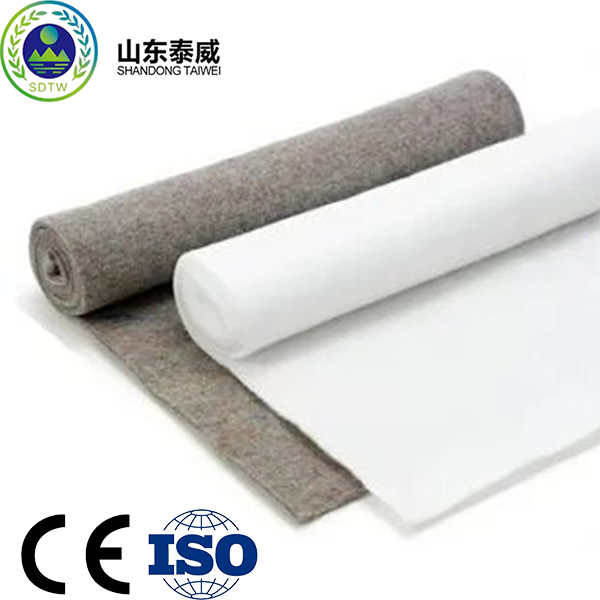

Needle Punched Non-woven PET Geotextile
Needle Punched PET Geotextile in China - Needle Punched PET Geotextile in China can trade everyday engineering assets and developing methods, making enchancment safer, contributing to environmental protection, and fixing vital troubles in engineering setting up greater economically, effectively and durably.
●Material:Polyester
●Color: White,Black,Orange
●Unit weight:100gsm-800gsm
●Length: 50m-100m
●Width: 1-6.2m
●Certificate: CE /ISO9001
●Type: Needle Punched
Needle Punched Non-woven PET Geotextile
Product features
●Strength - Under the identical weight specification, the tensile energy in all instructions is greater than different needle-punched non-woven fabrics;
●Anti-ultraviolet mild - has a very excessive anti-ultraviolet ability;
●Extremely excessive temperature resistance overall performance - excessive temperature resistance up to 230 ℃, nonetheless continues structural integrity and unique bodily residences underneath excessive temperature;
Application field
●As the reinforcement in the backfill of the retaining wall, or as the panel for anchoring the retaining wall. Build wrapped retaining walls or abutments.
●Strengthen the flexible pavement, repair cracks on the road, and prevent reflective cracks on the pavement.
●Increase the stability of gravel slope and reinforced soil, prevent soil erosion and freezing damage of soil at low temperature.
●The isolation layer between the road ballast and the subgrade, or the isolation layer between the subgrade and the soft foundation.
Product implementation standards: national standard (GB/T 17639-2008)
| Filament Spunbonded Needled Non-woven Geotextile Technical Specifications | ||||||||||
| Item | Index | |||||||||
| Index breaking strength（KN/m） | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | |
| 1 | Vertical and horizontal rupture strength / (KN/ m) | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
| 2 | Vertical and horizontal standard strength corresponding to elongation % | 40-80 | ||||||||
| 3 | CBR bursting strength /KN | 0.8 | 1.6 | 1.9 | 2.9 | 3.9 | 5.3 | 6.4 | 7.9 | 8.5 |
| 4 | Vertical and horizontal tearing strength /KN | 0.14 | 0.21 | 0.28 | 0.42 | 0.56 | 0.70 | 0.82 | 1.10 | 1.25 |
| 5 | Equivalent aperture O90(95)>/mm | 0.05-0.20 | ||||||||
| 6 | Vertical permeability coefficient | K*(10-1～10-3）and K=1.0～9.9 | ||||||||
| 7 | Thickness / mm≥ | 0.8 | 1.2 | 1.6 | 2.2 | 2.8 | 3.4 | 4.2 | 5.5 | 6.8 |
| 8 | Width deviation | -0.5 | ||||||||
| 9 | Unit area mass deviation | -5 | ||||||||

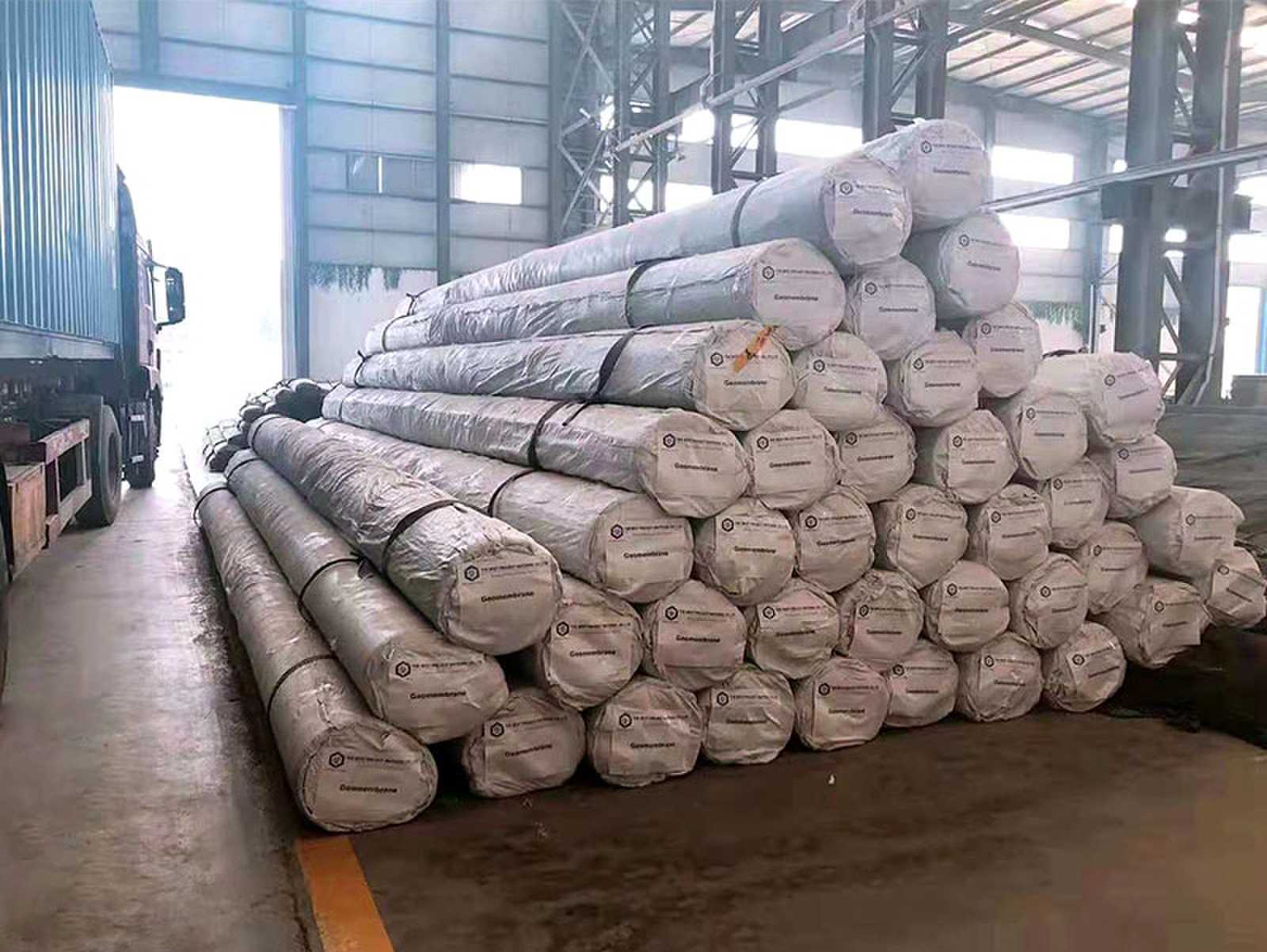

Packing of Needle Punched Non-woven PET Geotextile
You can freely choose PE film or PP woven bag for outer packaging, and there are paper tubes of different sizes inside the product for you to choose freely.
Strength of the company
1.Senior engineers with increased than 10 years experiencelead our professional technical team;
2.Establish test cease end result database for each batch of products;
3.Raw fabric QC system,production approach QC system,pre-shipment QC system;
4.Taiwei can grant installationand technical guidance services;
5.Third party take a appear at or inspection;
6.Sample availability: A4 dimension sample or smaller size is on hand in free cost.
