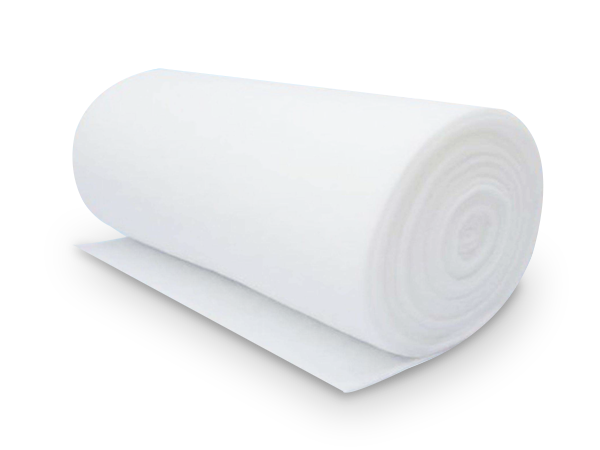

Slope drainage non-woven geotextile

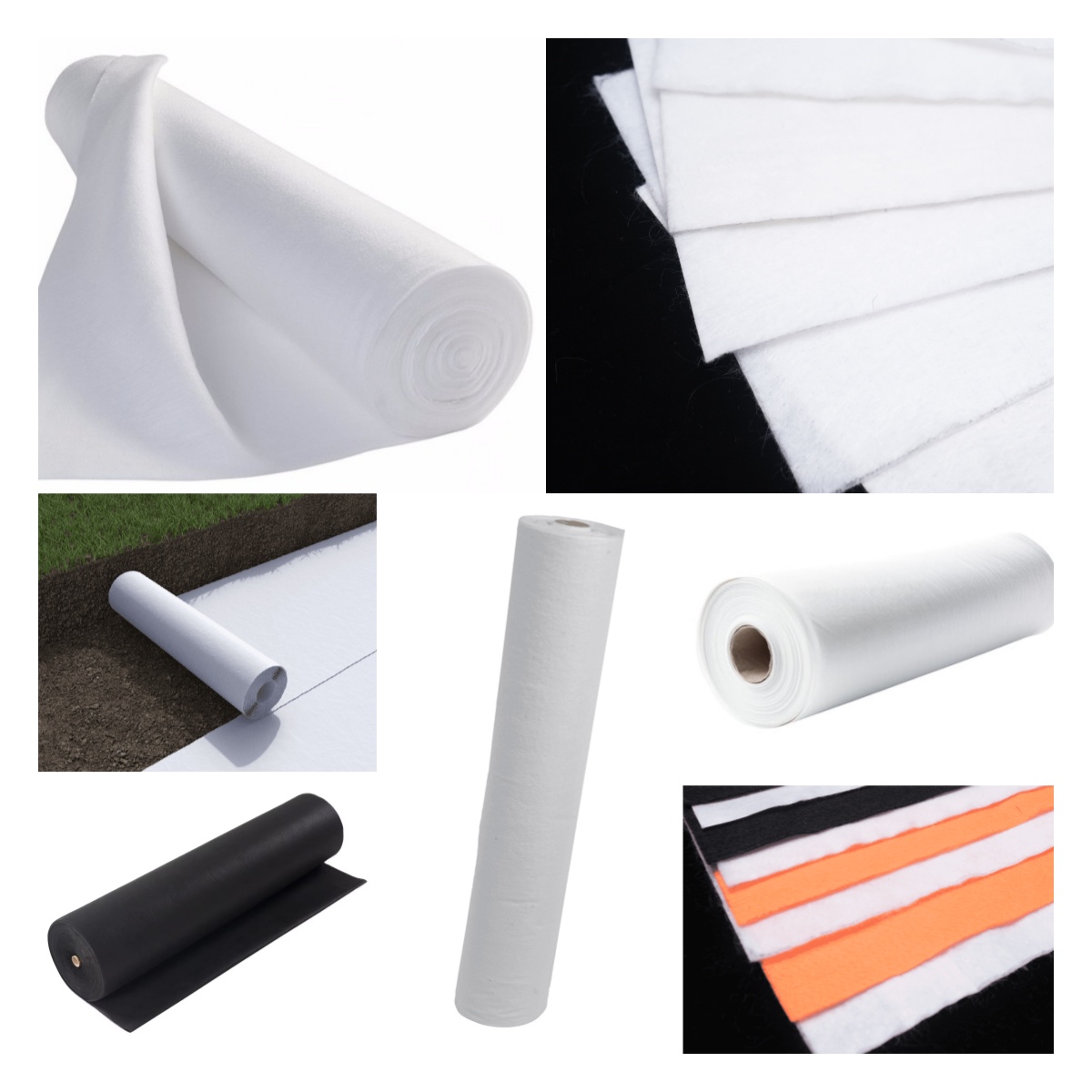

PET nonwoven geotextile is a type of nonwoven fabric produced from polyester fibers through a needle punching process. It is widely utilized in civil engineering, horticulture, and environmental conservation initiatives.
This material is characterized by its exceptional tear and tensile strength, which greatly enhances soil stability and aids in the mitigation of soil erosion.
Product descriptions from the supplier
:
:
:
:
:
: 1m-7m（Customizable）
: 50m-200m/Roll (Customizable)
:
:
: ISO9001/ISO14001/ISO45001/CE-CCSD23010543609/CRCC
: Within 10 years （Based on actual product conditions）
: Online technical support, installation training, on-site guidance..
Product features
1. Exceptional strength: PET needle-punched non-woven geotextile exhibits remarkable tensile strength and durability, effectively enhancing the tensile capacity of the soil.
2. Resistance to corrosion: The utilization of PET material endows this geotextile with excellent resistance to corrosion, making it suitable for use in highly challenging soil environments.
3. Resistance to aging: PET needle-punched non-woven geotextile demonstrates a high level of resistance to aging, maintaining its original performance characteristics over an extended period.
4. Water permeability: Typically, PET needle-punched non-woven geotextile possesses outstanding water permeability, facilitating soil drainage and minimizing water accumulation within the soil.
5. Simplified installation: PET geotextile is flexible and easy to handle, allowing for straightforward cutting, laying, and splicing, and can be customized on-site to enhance construction efficiency.

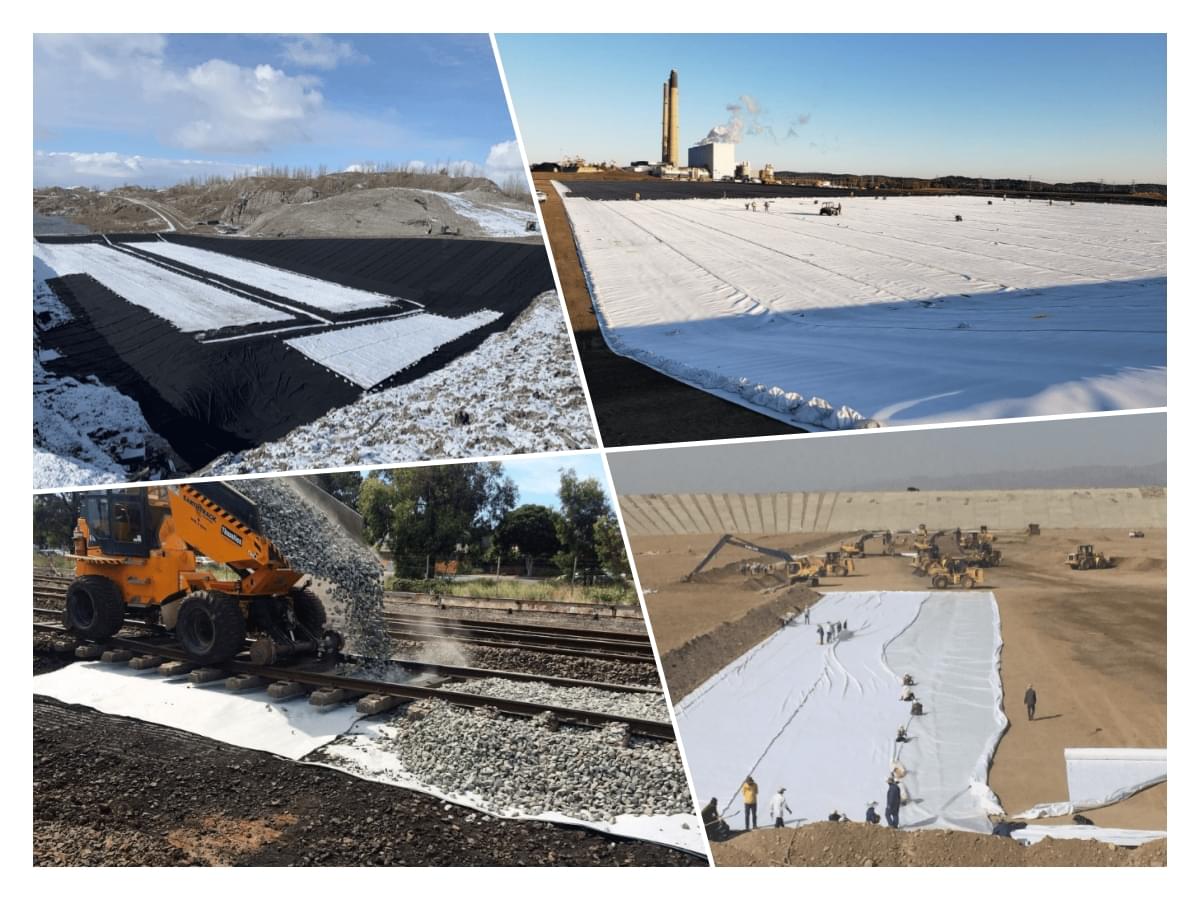

Product Application
1. Road engineering: Non-woven geotextiles serve as effective materials for reinforcing road bases and improving subgrade conditions, thereby enhancing the load-bearing capacity and stability of road surfaces, ultimately extending their service life.

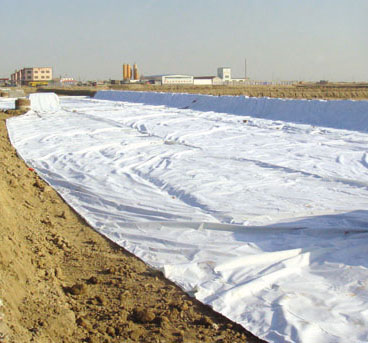

2. Water conservancy projects: In the context of water management, Non-woven geotextiles are utilized in riverbanks, dams, and reservoir applications to prevent soil erosion, stabilize slopes, and safeguard the integrity of water conservation structures.
3. Environmental engineering: Non-woven geotextiles play a crucial role in landfill applications by providing anti-seepage and anti-corrosion solutions, as well as facilitating biogas collection and other significant projects aimed at protecting the environment and preventing groundwater contamination.
4. Landscape engineering: Non-woven geotextiles are employed in soil preparation, garden cultivation, and root protection, contributing to the aesthetic enhancement and sustainability of outdoor green spaces.
5. Mining engineering: In mining operations, non-woven geotextiles are applied for slope stabilization, preventing seepage in tailings ponds, promoting mine greening, and other initiatives to ensure the safety of the mining environment and personnel.
Product indicators
| Properties | Test Method | Unit | TW-CJ 100 | TW-CJ 150 | TW-CJ 200 | TW-CJ 250 | TW-CJ 300 | TW-CJ 400 | TW-CJ 500 | TW-CJ 600 | TW-CJ 800 |
| Tensile Strength | EN ISO 10319 | kN/m | 7 | 11 | 16 | 20 | 21 | 27 | 34 | 40 | 45 |
| Tensile Elongation(MD/TD) | EN ISO 10319 | % | 80/70 | 80/70 | 80/70 | 80/70 | 80/70 | 85/70 | 85/70 | 90/70 | 95/75 |
| CBRPuncture Resistance | EN ISO 12236 | N | 1100 | 1700 | 2350 | 3000 | 3500 | 4500 | 5700 | 7000 | 9000 |
| Pore Size O90 | EN ISO 12956 | µm | 130 | 100 | 100 | 95 | 85 | 85 | 80 | 80 | 80 |
| Permeability | EN ISO 11058 | L/m2/s | 140 | 125 | 115 | 90 | 75 | 55 | 45 | 35 | 20 |
| Weathering Resistance | EN 12224 | % | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Exposure Time | EN 13249 | days | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Chemical Resistance | EN 14030 | % | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Microbiological Resistance | EN 12225 | % | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Weight | EN ISO 9864 | g/m2 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 | 800 |
| Roll Width | - | m | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Roll Length | - | m | 300 | 250 | 150 | 150 | 100 | 100 | 75 | 50 | 50 |

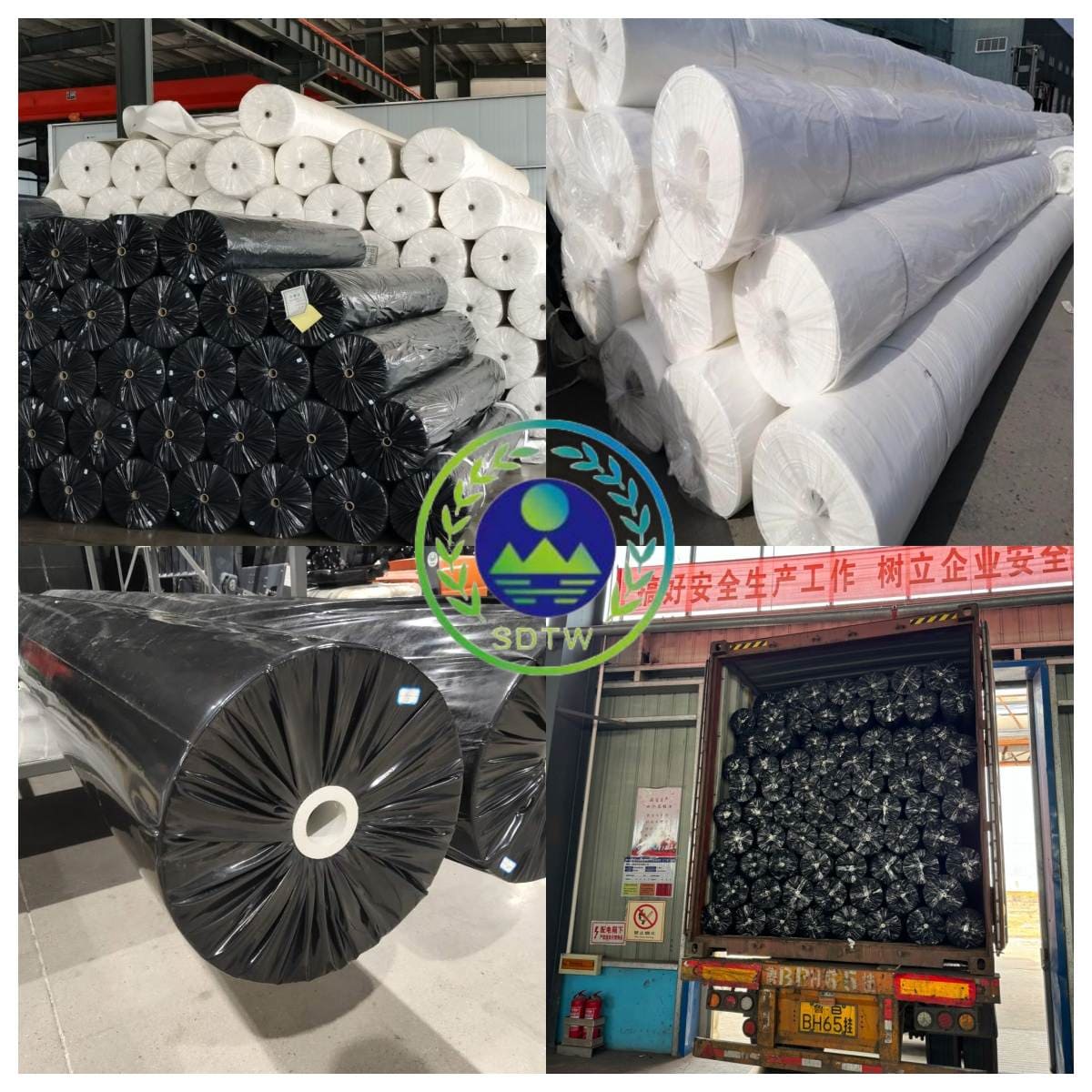

Packaging and Transportation
Company Introduction
FAQ
Can you design for us?
We have a professional design team to help our clients with their design work.
Do you accept processing orders?
We provide OEM and ODM services to customers.
Can we get the sample from your factory?
We can provide you with samples for free, but you need to pay the express fee before the first cooperation.
Can you have our brand printed on your products?
Yes. If you can meet our MOQ, we can print your logo on the product and packaging.
How do you guarantee the quality of the product for us?
We have a professional quality control team, and each product is strictly inspected before shipment.
How long is your delivery time?
Small orders take about one week, large orders need to be negotiated based on factory orders.
What is your method of payment?
We accept T/T, L/C, Western Union or negotiation. Don't worry about anything, if you have any questions please feel free to contact us.
