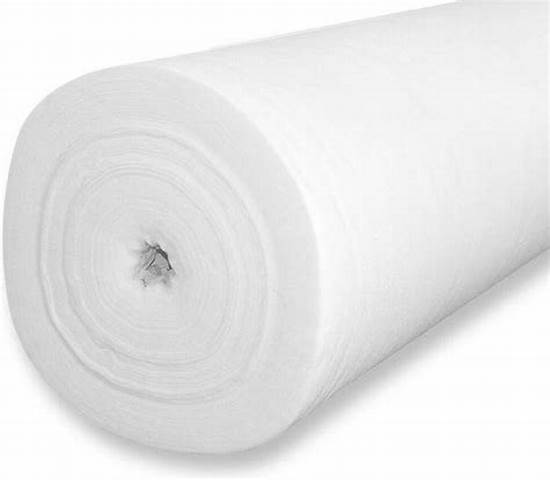

Non woven geotextiles for foundations
PP non-woven geotextile is a non-woven fabric made of polypropylene fiber and is typically used in civil engineering, gardening and environmental safety fields. Compared with common geotextiles, PP non-woven geotextiles have greater strength, higher water and air permeability.
Product descriptions from the supplier

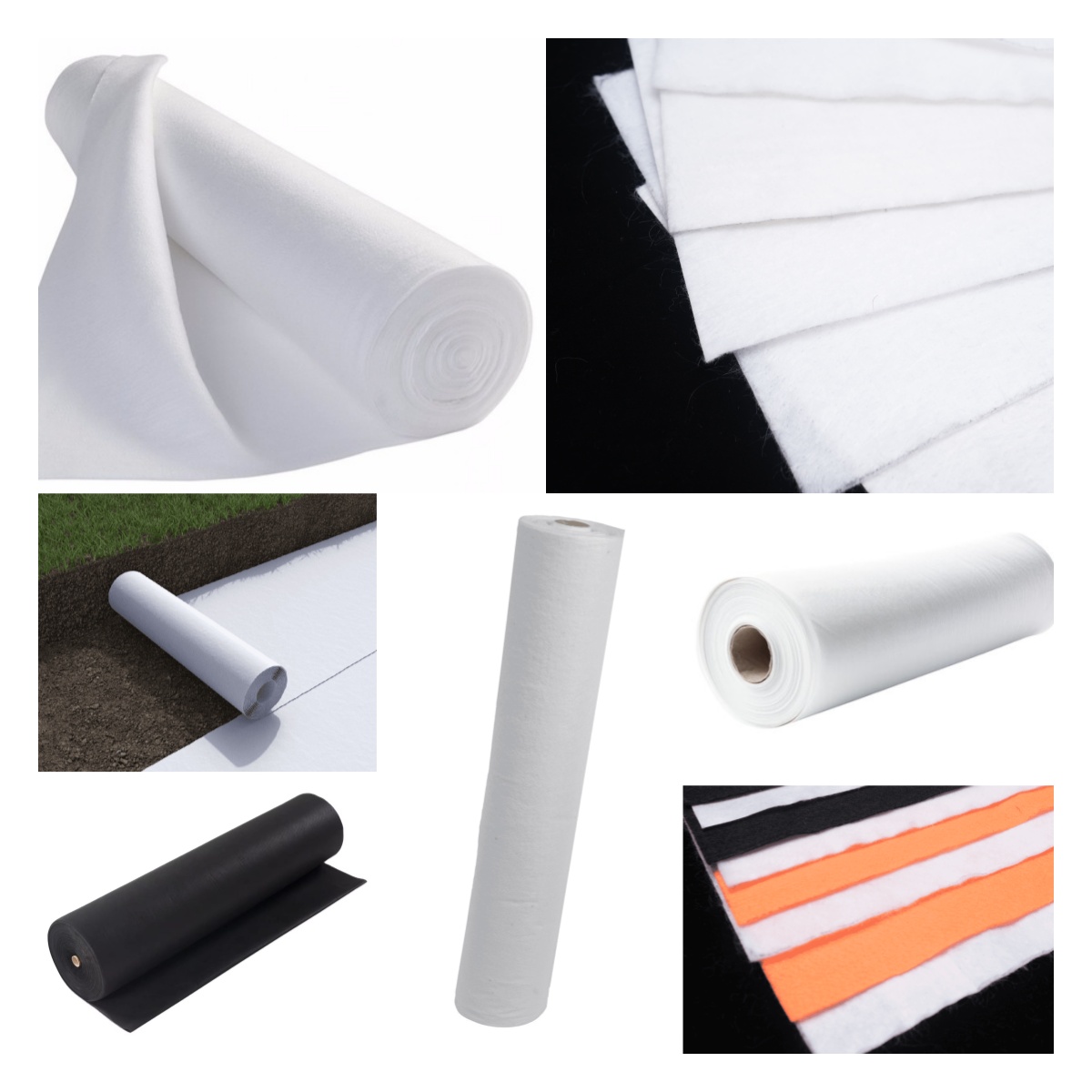

Non-woven geotextile :
TW(Taiwei) :
Shandong, China :
: PP (Polypropylene)
100-800g/SQM :
1m-6m(Customizable) :
50m-200m/Roll (Customizable) :
White, Black, Green, Gray (Customizable) :
Black PE film or woven bags(Please consult if you have other packaging requirements) :
: ISO9001/ISO14001/ISO45001/CE-CCSD23010543609/CRCC
: Within 10 years (Based on actual product conditions)
: Online technical support, installation training, on-site guidance..
Product features
1. Exceptional strength: PP geotextiles exhibit high tensile strength and tear resistance, significantly enhancing soil stability.
2. Resistance to corrosion: The polypropylene composition of PP geotextiles provides excellent resistance to corrosion, making them suitable for a variety of environmental conditions.
3. Durability against aging: PP geotextiles possess effective anti-aging properties, ensuring consistent performance over an extended period.
4. Permeability to water and air: These geotextiles offer a degree of water and air permeability, which is advantageous for maintaining soil moisture stability and facilitating drainage.
5. Eco-friendliness: PP geotextiles are environmentally friendly materials that do not contribute to air pollution and align with sustainable development goals.

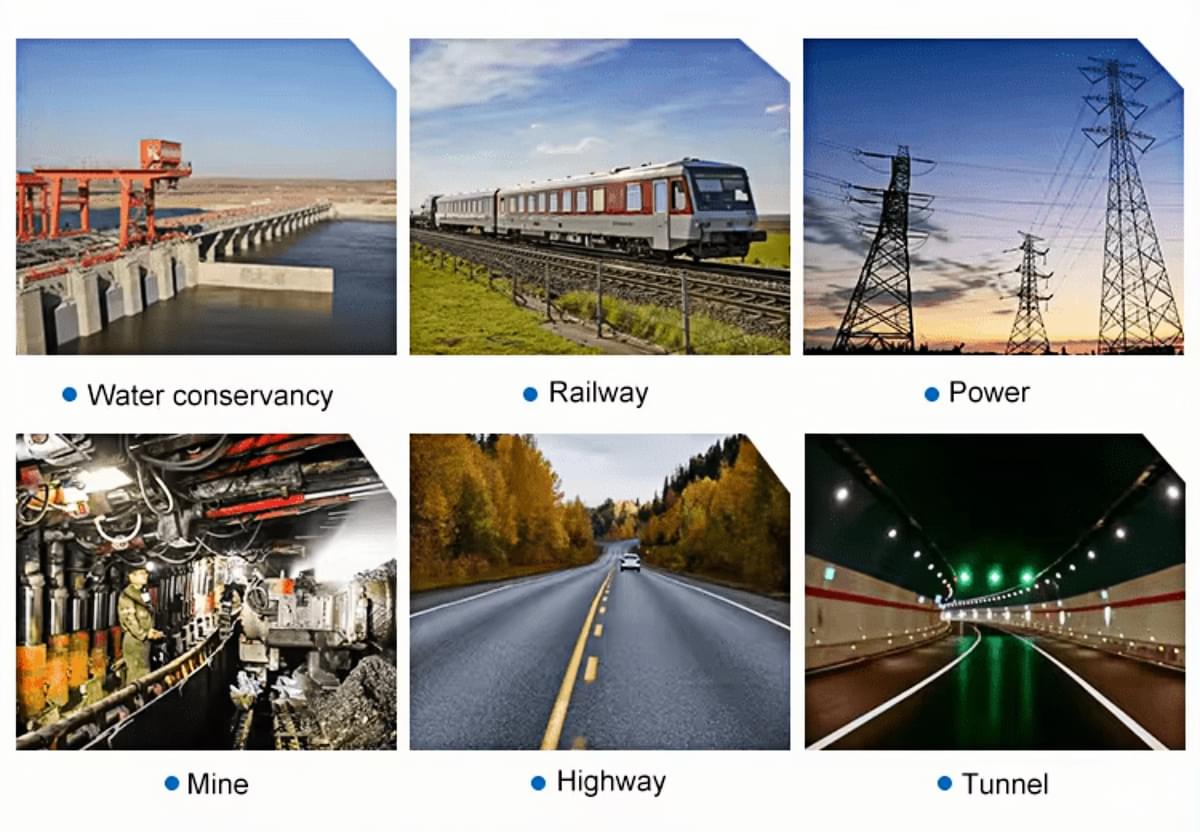

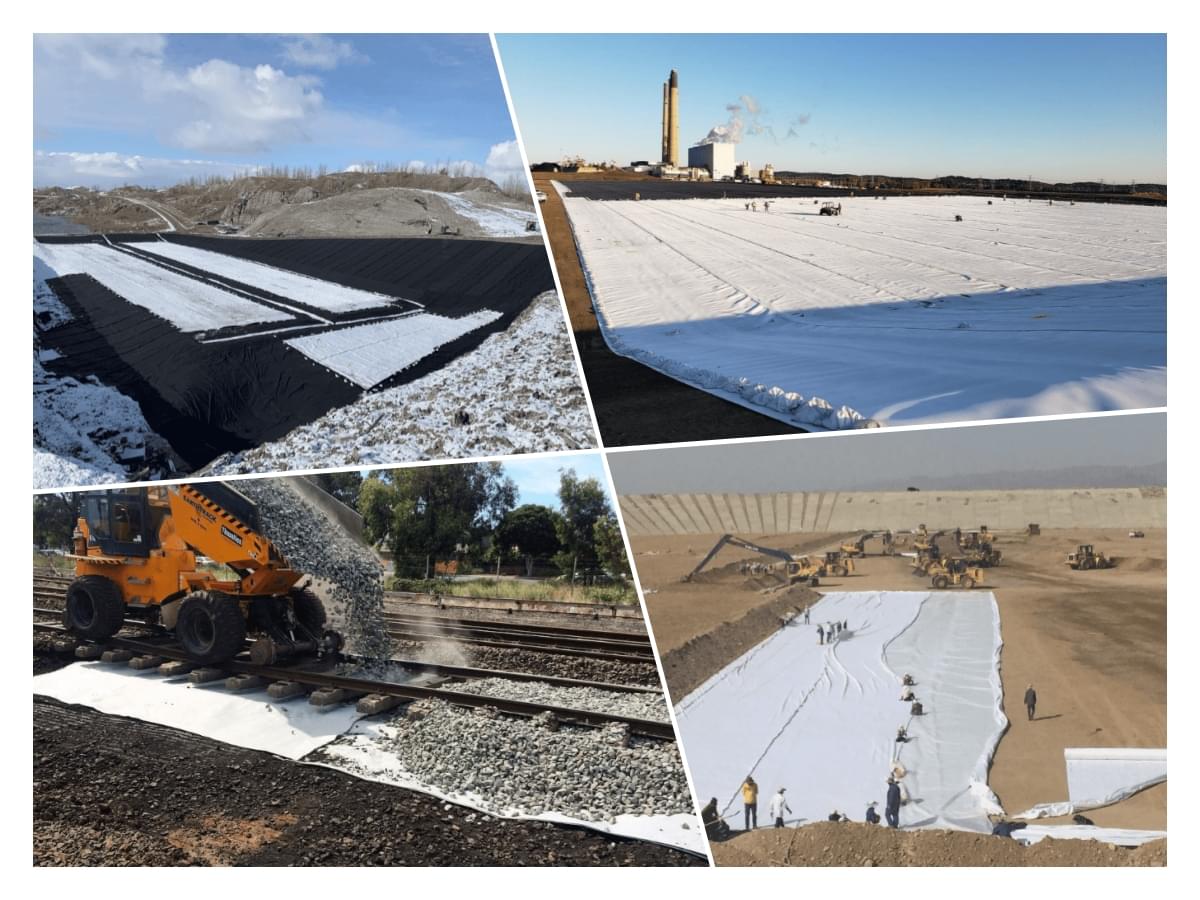

Product Application
1. Road engineering: Polypropylene (PP) geotextiles serve to enhance and drain the road base, mitigate roadbed deformation or settlement, and improve the load-bearing capacity and stability of the roadway.
2. Water conservancy projects: In the realm of water conservancy, PP geotextiles are frequently employed to reinforce dams, prevent erosion of riverbanks, minimize leakage at the base of reservoirs, and bolster soil and water conservation efforts.
3. Environmental protection projects: PP geotextiles can be utilized in environmental protection initiatives, functioning as an anti-seepage layer in landfills and as a protective layer in composting sites to prevent leakage and safeguard soil and water resources.
4. Construction projects: Within construction endeavors, PP geotextiles can act as foundational load-bearing reinforcement materials, waterproofing materials for walls, and anti-seepage materials for basements, thereby enhancing the stability and durability of the structure.

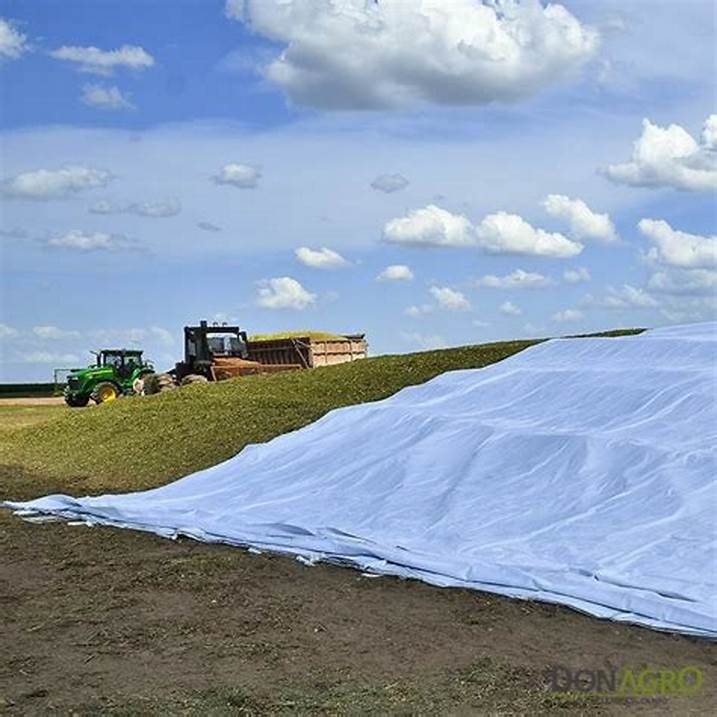

5. Landscaping projects: In landscaping applications, PP geotextiles can be implemented as a soil cover or planting layer to promote soil preservation and support plant growth.
Product indicators
Properties | Test Method | Unit | TW-DP 100 | TW-DP 150 | TW-DP 200 | TW-DP 250 | TW-DP 300 | TW-DP 350 | TW-DP 400 | TW-DP 500 | TW-DP 600 | TW-DP 700 | TW-DP 800 |
Tensile Strength (MD/TD) | ASTM D4595 | kN/m | 6 | 9.5 | 13 | 17 | 19 | 23 | 26 | 34 | 38 | 42 | 48 |
Tensile Elongation (MD/TD) | ASTM D4595 | % | 50 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
Grab Tensile Strength (MD/TD) | ASTM D4632 | N | 450 | 550 | 730 | 1000 | 1100 | 1400 | 1700 | 2000 | 2500 | 2700 | 3000 |
Grab Elongation (MD/TD) | ASTM D4632 | % | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 70 | 70 |
Trapezoidal Tear Strength (MD/TD) | ASTM D4533 | N | 220 | 270 | 330 | 430 | 450 | 540 | 610 | 770 | 810 | 900 | 1000 |
CBR Burst Strength | ASTM D6241 | N | 1250 | 1800 | 2300 | 2800 | 3200 | 3600 | 4500 | 5600 | 6400 | 7500 | 8000 |
Pore Size O90 | ASTM D4751 | µm | 110 | 110 | 110 | 100 | 100 | 90 | 80 | 70 | 70 | 70 | 70 |
Water Flow Q100 | ASTM D4491 | L/m2/s | 250 | 235 | 210 | 190 | 170 | 160 | 125 | 100 | 80 | 60 | 60 |
U.V. Resistance | ASTM D4355 | %@500h | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
Thickness | ASTM D5199 | mm | 1 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.4 | 4.2 | 4.6 | 5 |
Weight | ASTM D5261 | g/m2 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 700 | 800 |
Roll Width | - | m | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Roll Length | - | m | 250 | 250 | 150 | 150 | 100 | 100 | 100 | 75 | 50 | 50 | 50 |

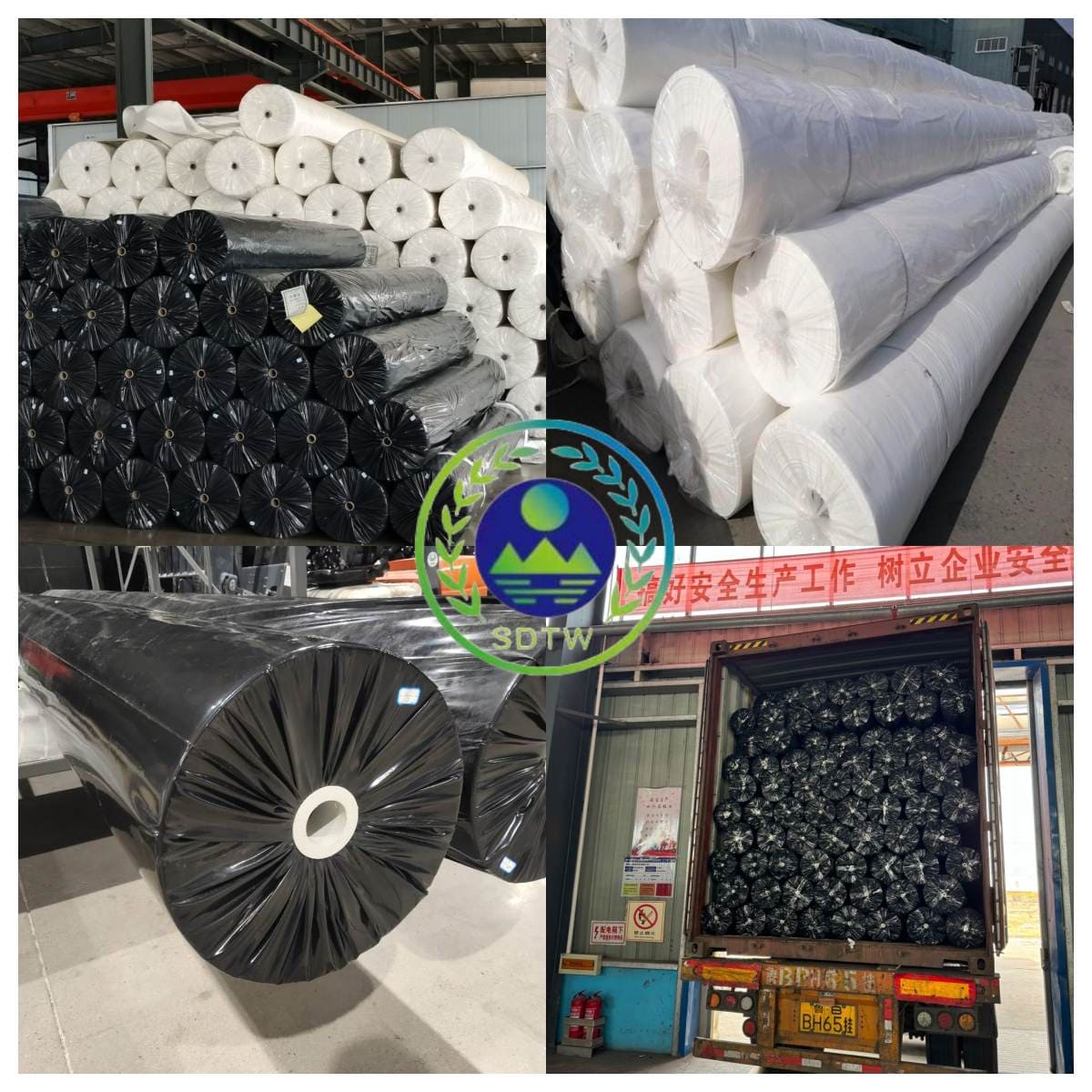

Packaging and Transportation
Company Introduction
FAQ
Can you design for us?
We have a professional design team to help our clients with their design work.
Do you accept processing orders?
We provide OEM and ODM services to customers.
Can we get the sample from your factory?
We can provide you with samples for free, but you need to pay the express fee before the first cooperation.
Can you have our brand printed on your products?
Yes. If you can meet our MOQ, we can print your logo on the product and packaging.
How do you guarantee the quality of the product for us?
We have a professional quality control team, and each product is strictly inspected before shipment.
How long is your delivery time?
Small orders take about one week, large orders need to be negotiated based on factory orders.
What is your method of payment?
We accept T/T, L/C, Western Union or negotiation. Don't worry about anything, if you have any questions please feel free to contact us.
