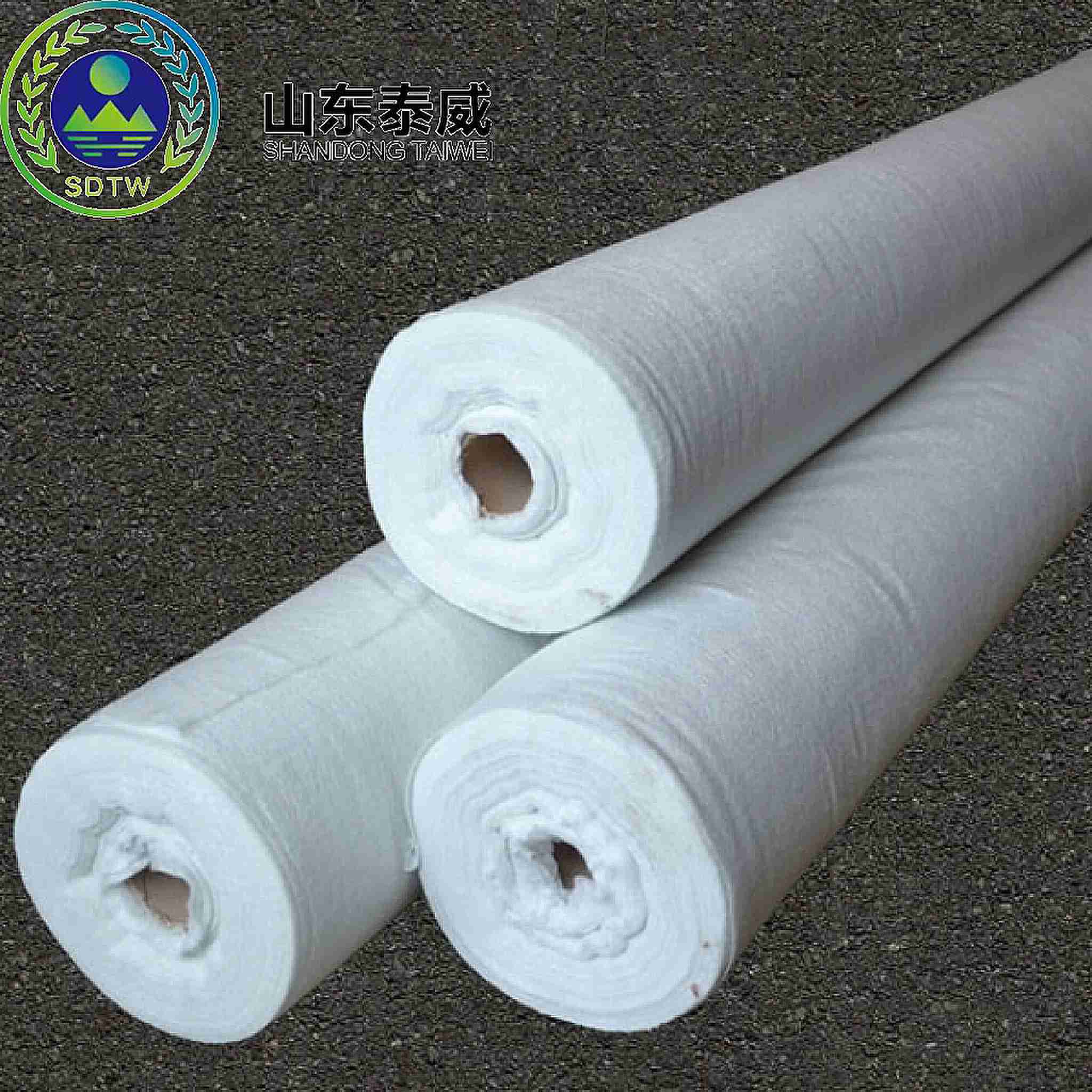

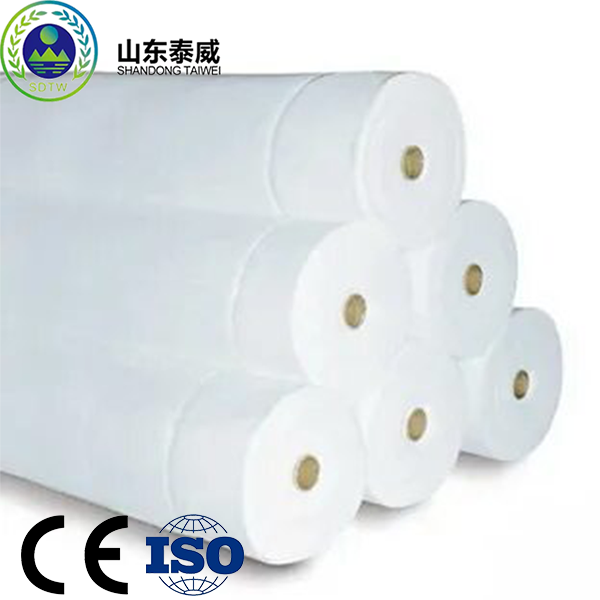

Top Quality Nonwoven Polypropylene Geotextile Price
Top Quality Nonwoven Polypropylene Geotextile PriceStaple fiber needle-punched nonwoven geotextiles can be used as reinforcement substances for railway roads, as nicely as airport runway subgrades and reinforcement substances for street repairs in swampy areas;
●Material: Polypropylene fiber
●Color: white, black, gray
●Length: 50m-100m
●Width: 0.5-6m
●Certificate: CE/ISO9001
●Type: Acupuncture
Top Quality Nonwoven Polypropylene Geotextile Price
Staple fiber needledgeotextiles are more often than not used in water wells, comfort wells, or filter layers of baroclinic pipes in water conservancy projects, and can additionally be used in roads, airports, railways, synthetic rockfill, etc. isolation layer.
Product Features:
Filtration: When water flows from the washing fabric soil layer into the coarse cloth soil layer, the appropriate air permeability and water permeability of the needle-punched geotextile are used to keep the steadiness of the water and soil engineering.
Reinforcement: Use needle geotextiles to decorate the tensile power and deformation resistance of the soil, make bigger the balance of the constructing structure, and enhance the high-quality of the soil.
Protection: Effectively diffuse, transmit or decompose focused stress, stop the soil from being broken via external forces, and defend the soil.
Isolation: Using staple fiber needle-punched geotextiles to separate constructing substances with extraordinary bodily properties, particle size, distribution, consistency and density.
Application:
The product has excellent water permeability, filterability and durability, and can be widely used in railways, highways, sports halls, dams, hydraulic structures, tunnels, coastal tidal flats, reclamation, environmental protection and other projects.
Function:
Utilize the accurate air permeability and water permeability of needle-punched geotextiles to permit water to omit through, and efficiently intercept soil particles, spun yarns, small stones, etc. to keep the steadiness of water and soil engineering.
Effectively diffuse, transmit or decompose the focused stress, stop the soil from being broken via exterior force, and defend the soil.
The drainage potential of the geotextile is proportional to the thickness of the geotextile. Generally speaking, the thicker the thickness, the higher the drainage capability of the geotextile
As insulation material, frost and freeze protection.
Specifications
Staple Fiber Needled Non-woven Geotextile Technical Specifications ( GB/T17638-1998) | |||||||||||||
No. | Item | Specifications | Note | ||||||||||
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |||
1 | Unit area mass deviation | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 |
|
2 | Thickness mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
3 | Width deviation | -0.5 | |||||||||||
4 | Breaking strength | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | Vertical and horizontal |
5 | Elongation at break % | 20-100 | |||||||||||
6 | CBR bursting strength | 0.3 | 0.6 | 0.8 | 1.2 | 1.4 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 |
|
7 | Equivalent aperture | 0.07-0.2 |
| ||||||||||
8 | Vertical permeability coefficient | K*(10-1~10-3) | K=1.0-9.9 | ||||||||||
9 | Tear strength | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Vertical and horizontal |
Packing of Top Quality Nonwoven Polypropylene Geotextile Price
You can freely choose PE film or PP woven bag for outer packaging, and there are paper tubes of different sizes inside the product for you to choose freely.
FAQ
Q1. Can your business customize products?
A: Yes, we can make it according to your needs.
Q2. How to confirm mass production?
A: Make samples according to your needs and ship to you for approval, ready for production after confirming all details.
Q3. How can I get products from you to check the quality?
A: You can provide us your technical details, then we will provide the sample as your specification, or you can send us the sample, and we can make the same specification sample for you. Usually the shipping time is about 5-10 days.
Q4. Is there any charge for samples?
According to our company policy, samples are free, and you only need to bear the shipping cost. We will refund the shipping cost if you place the order.
Q5. What is the minimum order quantity (MOQ) of your products?
A: Our MOQ is USD 3000.
Q6. What about your shipping time? Can we get our items on time?
A: Usually around 2-5 weeks after order confirmed. The actual shipping time depends on the order quantity.
Q7. What about your exchange and fee terms?
A: Payment: 30% deposit paid by T/T and confirmed order, 70% stability paid by T/T before delivery.
Staple Fiber Needled Non-woven Geotextile Technical Specifications ( GB/T17638-1998) | |||||||||||||
No. | Item | Specifications | Note | ||||||||||
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |||
1 | Unit area mass deviation | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | 6 | -6 |
|
2 | Thickness mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
3 | Width deviation | -0.5 | |||||||||||
4 | Breaking strength | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | Vertical and horizontal |
5 | Elongation at break % | 20-100 | |||||||||||
6 | CBR bursting strength | 0.3 | 0.6 | 0.8 | 1.2 | 1.4 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 |
|
7 | Equivalent aperture | 0.07-0.2 |
| ||||||||||
8 | Vertical permeability coefficient | K*(10-1~10-3) | K=1.0-9.9 | ||||||||||
9 | Tear strength | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Vertical and horizontal |
