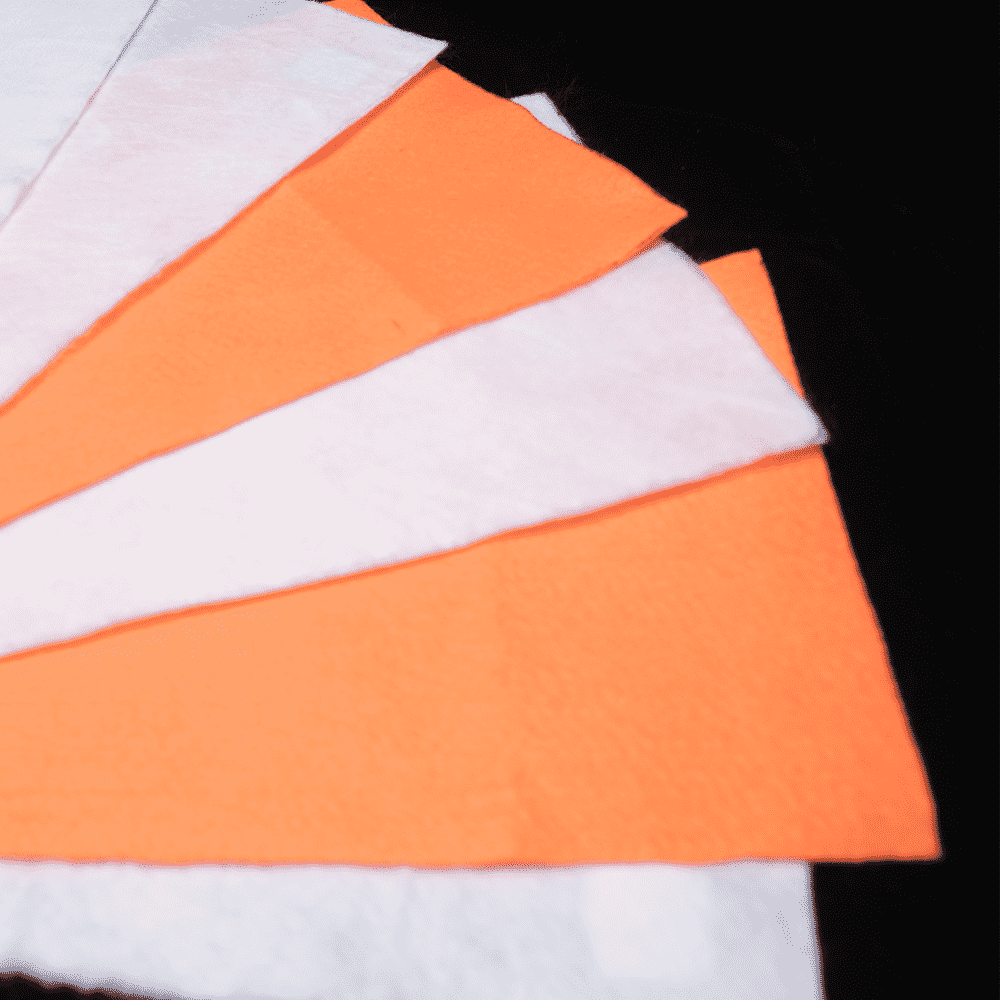

Port specific Short silk geotextile
Spunbonded nonwoven
Material: PET/PP
Colors: white, black, green, orange, personalized for statistical coloring
Specification: 100g-800g
Length: 50-100m
Certificate: CE/ISO9001
Support personalized hues and width lengths. Please inform purchaser carrier if there are any different necessities
Port specific Short silk geotextile
Product introduction;
Port geotextile is a material used to prevent soil erosion and enhance soil stability. It is usually made of synthetic fiber materials such as high-strength polyester or polypropylene, and undergoes special treatment to improve its weather resistance and chemical resistance.
Product characteristics;
Preventing soil erosion: Port geotextiles can firmly fix the soil in place, prevent soil from being eroded by factors such as water flow and waves, and thus protect the land from damage.
2.Enhancing foundation stability: By laying port geotextiles on the foundation, the overall stability and bearing capacity of the foundation can be effectively increased, preventing loosening and deformation of the foundation.
Application scope;
3.Providing filtration function: The microporous structure of port geotextile allows water to pass through, while preventing the loss of larger soil particles, playing a filtering role and maintaining soil stability.
4.Slope protection: Port geotextile can also be used for slope protection, effectively preventing slope collapse and landslides by fixing the soil and preventing water flow erosion.
Specifications
Staple Fiber Needled Non-woven Geotextile Technical Specifications ( GB/T17638-1998) | |||||||||||||
No. | Item | Specifications | Note | ||||||||||
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |||
1 | Unit area mass deviation | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 |
|
2 | Thickness mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
3 | Width deviation | -0.5 | |||||||||||
4 | Breaking strength | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | Vertical and horizontal |
5 | Elongation at break % | 20-100 | |||||||||||
6 | CBR bursting strength | 0.3 | 0.6 | 0.8 | 1.2 | 1.4 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 |
|
7 | Equivalent aperture | 0.07-0.2 |
| ||||||||||
8 | Vertical permeability coefficient | K*(10-1~10-3) | K=1.0-9.9 | ||||||||||
9 | Tear strength | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Vertical and horizontal |
Packing of Top Quality Nonwoven Polypropylene Geotextile Price
You can freely choose PE film or PP woven bag for outer packaging, and there are paper tubes of different sizes inside the product for you to choose freely.
Staple Fiber Needled Non-woven Geotextile Technical Specifications ( GB/T17638-1998) | |||||||||||||
No. | Item | Specifications | Note | ||||||||||
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |||
1 | Unit area mass deviation | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | 6 | -6 |
|
2 | Thickness mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
3 | Width deviation | -0.5 | |||||||||||
4 | Breaking strength | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | Vertical and horizontal |
5 | Elongation at break % | 20-100 | |||||||||||
6 | CBR bursting strength | 0.3 | 0.6 | 0.8 | 1.2 | 1.4 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 |
|
7 | Equivalent aperture | 0.07-0.2 |
| ||||||||||
8 | Vertical permeability coefficient | K*(10-1~10-3) | K=1.0-9.9 | ||||||||||
9 | Tear strength | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Vertical and horizontal |
