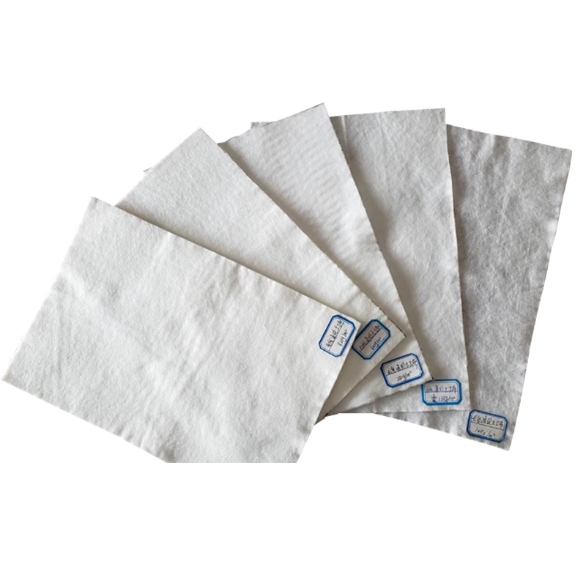

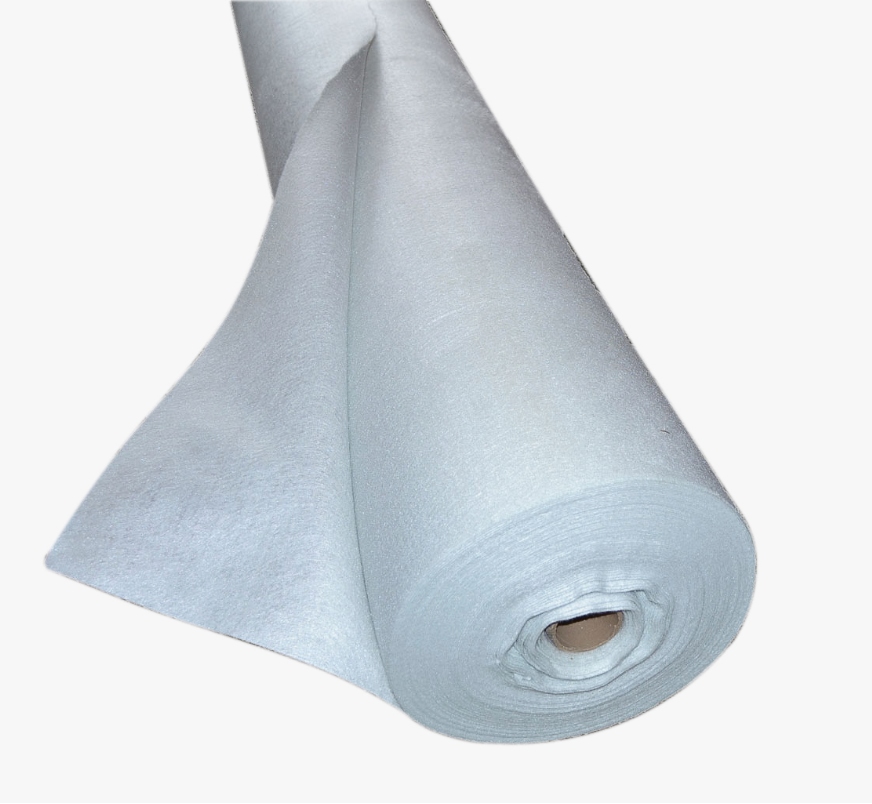

200g spunbond needle punched nonwoven geotextile fabric

Non-woven geotextiles have the benefits of appropriate water permeability, excessive tensile strength, robust strain resistance, and resistance to acid and alkali corrosion.

It can be used in soil reinforcement, waterproofing, filtration, isolation, safety and different fields.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product descriptions from the supplier

Type: Nonwoven geotextile

Brand: TW（Taiwei）

Place Of Origin: Shandong, China

Material: PP/PET (Polypropylene/Polyester)

Gram Weight: 100-800g/SQM

Width: 1m-7m（Customizable）

Length: 50m-200m/Roll (Customizable)

Color: White, Black, Green, Gray (Customizable)

Package: Black PE film or woven bags（Please consult if you have other packaging requirements）

Certificate: ISO9001/ISO14001/ISO45001/CE-CCSD23010543609/CRCC

After-sales guarantee: Within 10 years （Based on actual product conditions）

Technical Services: Online technical support, installation training, on-site guidance..

Product features

1. High strength: Non-woven geotextiles have excessive tensile electricity and anti-rupture properties, which can efficaciously decorate the steadiness and bearing capability of the soil.

2. Water permeability: Non-woven geotextiles have precise water permeability, which can preserve the water permeability of the soil, decrease soil erosion, and enhance the water retention of the soil.

3. Protectiveness: Non-woven geotextiles can efficiently forestall soil erosion and damage, and defend the steadiness and security of engineering buildings such as land and dams.

4. Corrosion resistance: Non-woven geotextiles are typically made of corrosion-resistant uncooked materials, have desirable corrosion resistance, and can adapt to engineering wants underneath extraordinary environmental conditions.

5. Convenient construction: Non-woven geotextiles are mild and soft, convenient to lay and construct, and can be reduce and spliced as wished to enhance development efficiency.

Product Application

1. Road engineering: Non-woven geotextiles can be used for avenue base reinforcement and basis improvement, enhance the bearing capability and steadiness of the avenue surface, and lengthen the carrier lifestyles of the avenue surface.

2. Water conservancy projects: Non-woven geotextiles can be used in river channels, dams and reservoir initiatives to stop soil erosion, toughen slopes, and guard water conservancy task structures.

3. Environmental engineering: Non-woven geotextiles can be used in landfill anti-seepage, anti-corrosion, biogas series and different initiatives to shield the surroundings and stop groundwater from being polluted.

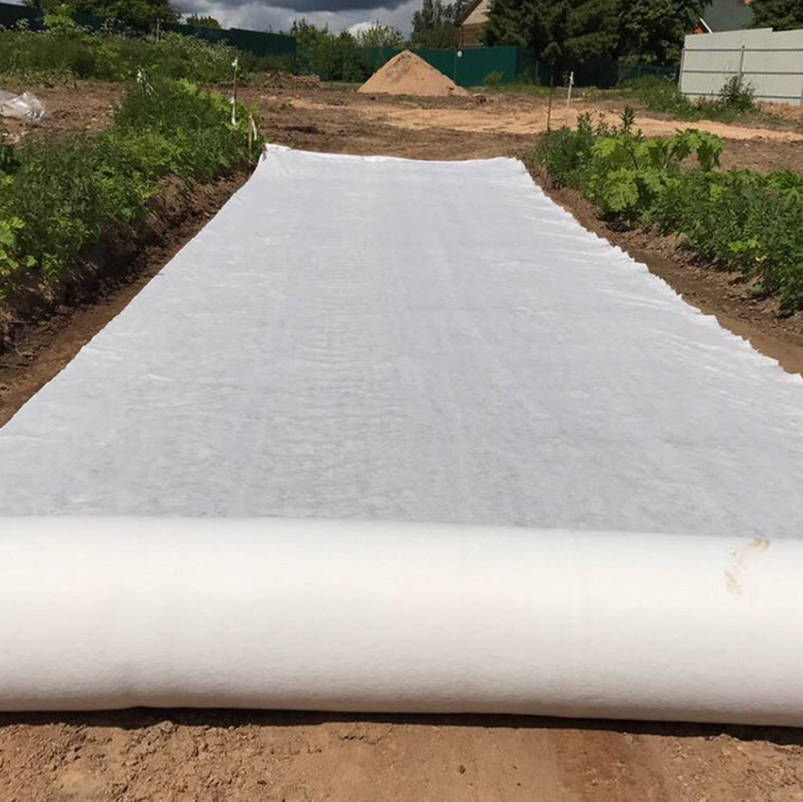

4. Garden engineering: Non-woven geotextiles can be used for soil preparation, garden planting, plant root protection, etc., to enhance the beautification impact and increase surroundings of backyard inexperienced space.

5. Mining engineering: Non-woven geotextiles can be used in mine slope stabilization, tailings pond anti-seepage, mine greening and different tasks to shield the mine surroundings and personnel safety.

Product indicators

Properties	Test Method	Unit	TW-CJ 100	TW-CJ 150	TW-CJ 200	TW-CJ 250	TW-CJ 300	TW-CJ 400	TW-CJ 500	TW-CJ 600	TW-CJ 800
Tensile Strength	EN ISO 10319	kN/m	7	11	16	20	21	27	34	40	45
Tensile Elongation(MD/TD)	EN ISO 10319	%	80/70	80/70	80/70	80/70	80/70	85/70	85/70	90/70	95/75
CBRPuncture Resistance	EN ISO 12236	N	1100	1700	2350	3000	3500	4500	5700	7000	9000
Pore Size O90	EN ISO 12956	µm	130	100	100	95	85	85	80	80	80
Permeability	EN ISO 11058	L/m2/s	140	125	115	90	75	55	45	35	20
Weathering Resistance	EN 12224	%	90	90	90	90	90	90	90	90	90
Exposure Time	EN 13249	days	30	30	30	30	30	30	30	30	30
Chemical Resistance	EN 14030	%	100	100	100	100	100	100	100	100	100
Microbiological Resistance	EN 12225	%	100	100	100	100	100	100	100	100	100
Weight	EN ISO 9864	g/m2	100	150	200	250	300	400	500	600	800
Roll Width	-	m	7	7	7	7	7	7	7	7	7
Roll Length	-	m	300	250	150	150	100	100	75	50	50
