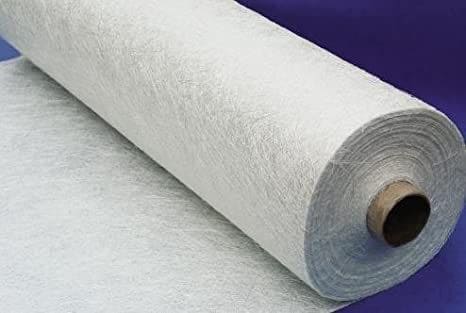

Dam Filtration Filament Nonwoven Geotextile
PET geotextile is made of non-woven technology. The PET fiber is melted, sprayed, high-speed air flow and other processing processes to form a network structure, and then processed by heat setting, compaction, coating and other processes.
PET geotextile is a geotechnical material made of polyester fiber.
1. Has high tensile strength and good anti-penetration properties
2. Excellent corrosion resistance
3. Has good waterproof performance and breathability
Product descriptions from the supplier
Overview
Type: PET Non woven Geotextile
Brand: TaiWei
Material: 100% PET
Warranty service: within 10 years
Country of Origin: China
Raw Materials: Polyester chips/fibers
Width: 1-7m
Length: 50-200m (customizable)
Weight/m2: 100-800g
Color:white, black, orange, supports custom colors
After-sales service: online technical support, online installation training, product standard testing, free spare parts, returns and exchanges.

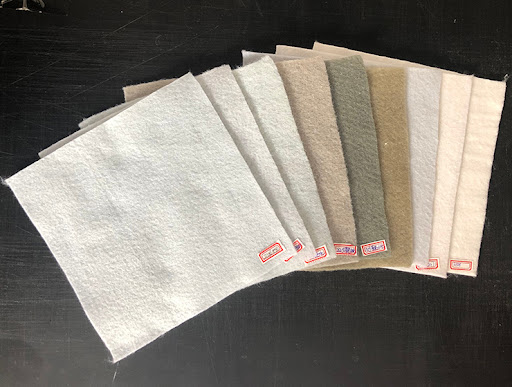

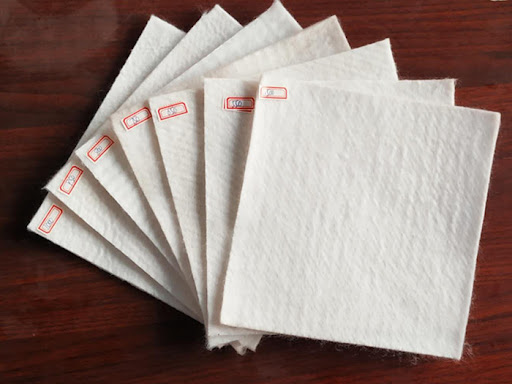

Product Display
Product Features
1. High strength: PET geotextile has high tensile strength and tensile resistance, which can effectively reinforce the soil structure and improve the bearing capacity of the soil.
2. Corrosion resistance: PET geotextile has good corrosion resistance, can adapt to the engineering needs under various environmental conditions, and maintain its stability and service life.
3. Good water permeability: PET geotextile has good water permeability, which is conducive to soil drainage and water retention, preventing soil erosion and water loss.
4. Environmental protection: PET geotextile is made of polyester fiber as raw material, has environmental protection characteristics, and meets the requirements of sustainable development.
5. Easy construction: PET geotextile is light and soft, easy to cut, lay and splice, and can be customized on site according to needs to improve construction efficiency.
6. High permeability: PET geotextile has good soil permeability, which is conducive to the balanced distribution of water inside the soil and improves the stability and drainage performance of the soil.
Product Application
1. Road engineering: Non-woven geotextiles can be used for road base reinforcement and foundation improvement, improve the bearing capacity and stability of the road surface, and extend the service life of the road surface.
2. Water conservancy projects: Non-woven geotextiles can be used in river channels, dams and reservoir projects to prevent soil erosion, reinforce slopes, and protect water conservancy project structures.
3. Environmental engineering: Non-woven geotextiles can be used in landfill anti-seepage, anti-corrosion, biogas collection and other projects to protect the environment and prevent groundwater from being polluted.
4. Garden engineering: Non-woven geotextiles can be used for soil preparation, lawn planting, plant root protection, etc., to improve the beautification effect and growth environment of garden green space.
5. Mining engineering: Non-woven geotextiles can be used in mine slope stabilization, tailings pond anti-seepage, mine greening and other projects to protect the mine environment and personnel safety.
Filament Spunbonded Needled Non-woven Geotextile Technical Specifications | ||||||||||
Item | Index | |||||||||
Index breaking strength(KN/m) | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | |
1 | Vertical and horizontal rupture strength / (KN/ m) | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
2 | Vertical and horizontal standard strength corresponding to elongation % | 40-80 | ||||||||
3 | CBR bursting strength /KN | 0.8 | 1.6 | 1.9 | 2.9 | 3.9 | 5.3 | 6.4 | 7.9 | 8.5 |
4 | Vertical and horizontal tearing strength /KN | 0.14 | 0.21 | 0.28 | 0.42 | 0.56 | 0.70 | 0.82 | 1.10 | 1.25 |
5 | Equivalent aperture O90(95)>/mm | 0.05-0.20 | ||||||||
6 | Vertical permeability coefficient | K*(10-1~10-3)and K=1.0~9.9 | ||||||||
7 | Thickness / mm≥ | 0.8 | 1.2 | 1.6 | 2.2 | 2.8 | 3.4 | 4.2 | 5.5 | 6.8 |
8 | Width deviation | -0.5 | ||||||||
9 | Unit area mass deviation | -5 |
