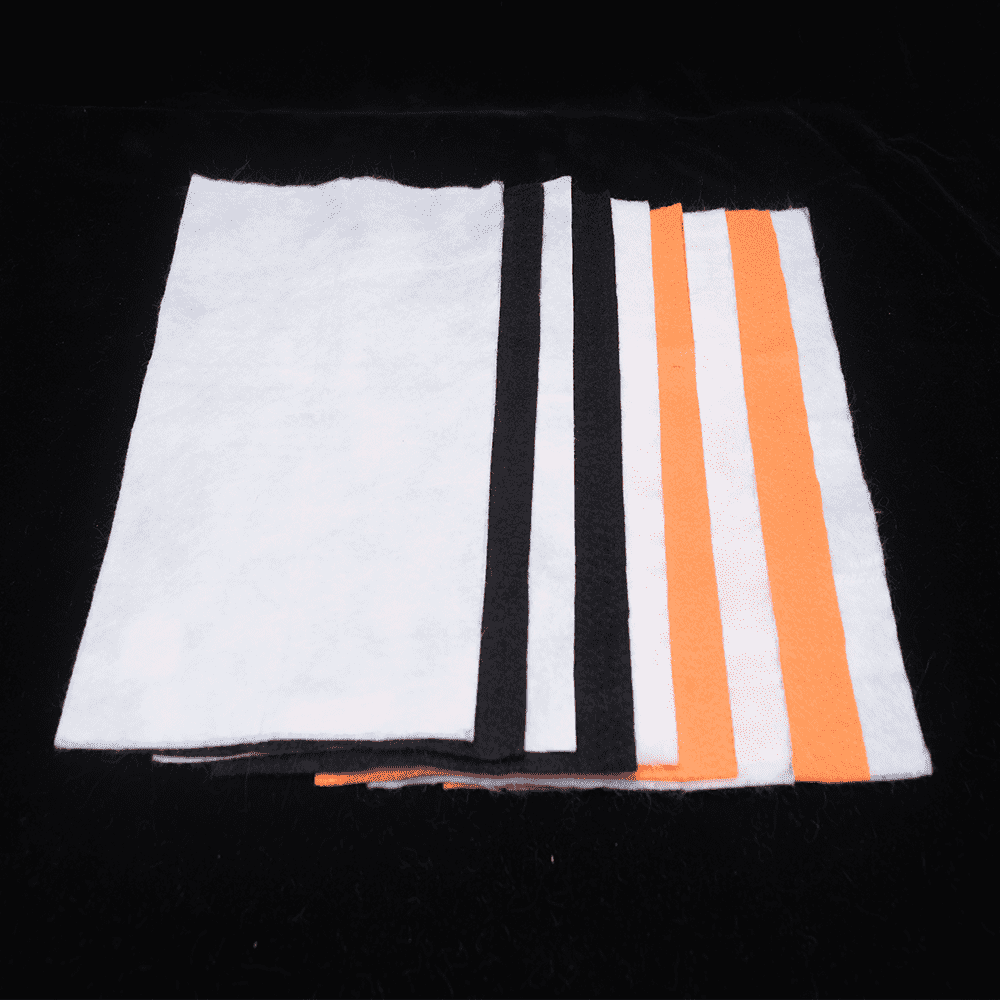

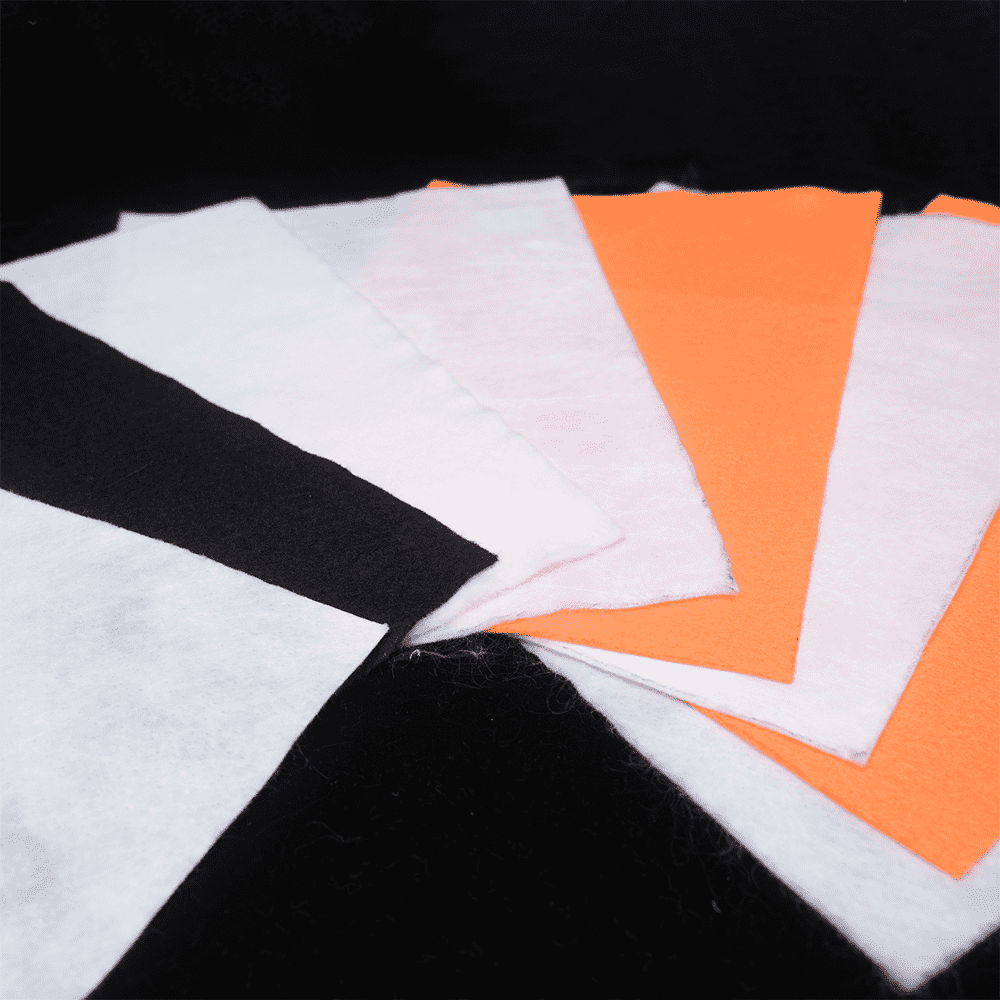

White black orange non-woven Spunbonded nonwoven
Spunbonded nonwoven
Material: PET/PP
Colors: white, black, green, orange, personalized for statistical coloring
Specification: 100g-800g
Length: 50-100m
Certificate: CE/ISO9001
Support personalized hues and width lengths. Please inform purchaser carrier if there are any different necessities
White black orange non-woven Spunbonded nonwoven
Product introduction;
Non woven geotextile is on the whole made of PP or PET as uncooked substances and produced the use of non-woven technology. It has features such as isolation, filtration, drainage, protection, and maintenance.
Product characteristics;
Flexibility grade, corrosion resistance, acid and alkali resistance, antioxidant; It has good water permeability, filtration and isolation performance, and is convenient for construction.
Application scope;
It is mainly used for strengthening, filtering, isolation and drainage of water conservancy, environmental protection, highways, dams, coastal mudflat and other projects
Specifications
Staple Fiber Needled Non-woven Geotextile Technical Specifications ( GB/T17638-1998) | |||||||||||||
No. | Item | Specifications | Note | ||||||||||
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |||
1 | Unit area mass deviation | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 |
|
2 | Thickness mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
3 | Width deviation | -0.5 | |||||||||||
4 | Breaking strength | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | Vertical and horizontal |
5 | Elongation at break % | 20-100 | |||||||||||
6 | CBR bursting strength | 0.3 | 0.6 | 0.8 | 1.2 | 1.4 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 |
|
7 | Equivalent aperture | 0.07-0.2 |
| ||||||||||
8 | Vertical permeability coefficient | K*（10-1～10-3） | K=1.0-9.9 | ||||||||||
9 | Tear strength | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Vertical and horizontal |
Packing of Top Quality Nonwoven Polypropylene Geotextile Price
You can freely choose PE film or PP woven bag for outer packaging, and there are paper tubes of different sizes inside the product for you to choose freely.
Staple Fiber Needled Non-woven Geotextile Technical Specifications ( GB/T17638-1998) | |||||||||||||
No. | Item | Specifications | Note | ||||||||||
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |||
1 | Unit area mass deviation | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | 6 | -6 |
|
2 | Thickness mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
3 | Width deviation | -0.5 | |||||||||||
4 | Breaking strength | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | Vertical and horizontal |
5 | Elongation at break % | 20-100 | |||||||||||
6 | CBR bursting strength | 0.3 | 0.6 | 0.8 | 1.2 | 1.4 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 |
|
7 | Equivalent aperture | 0.07-0.2 |
| ||||||||||
8 | Vertical permeability coefficient | K*（10-1～10-3） | K=1.0-9.9 | ||||||||||
9 | Tear strength | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Vertical and horizontal |
