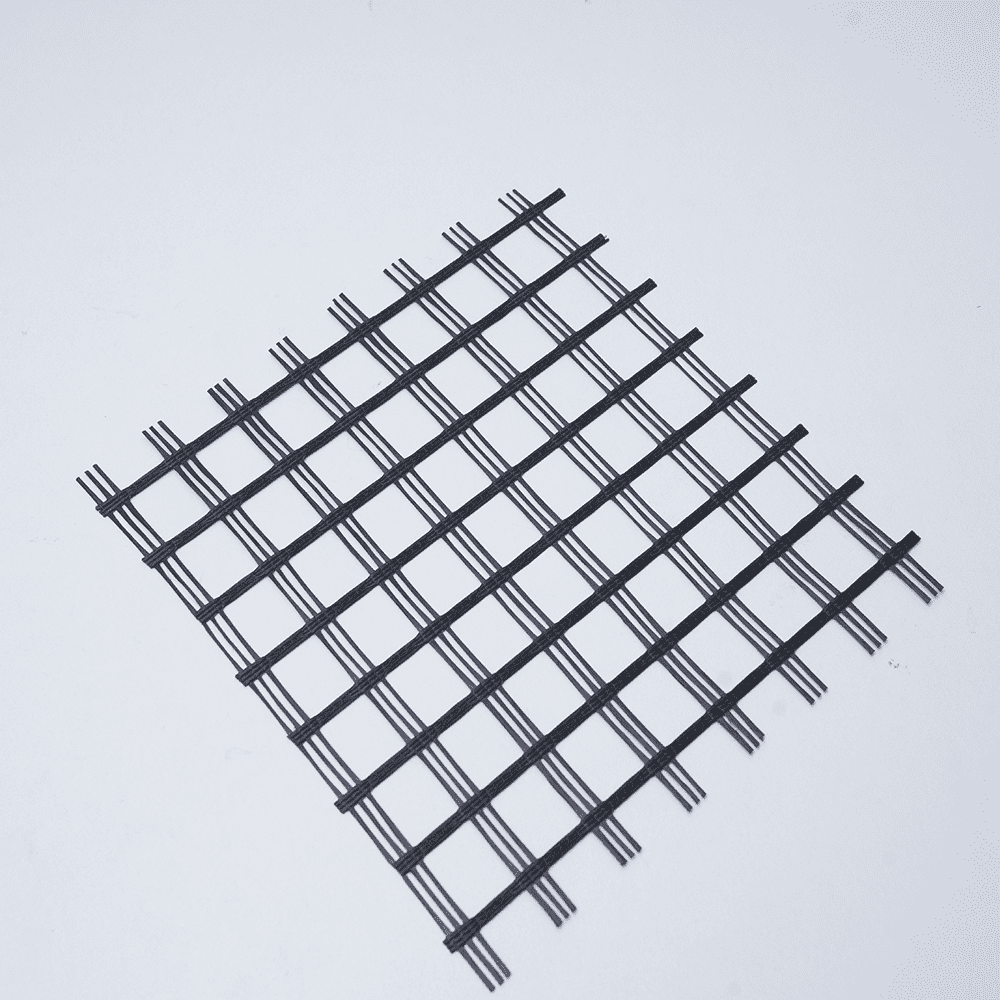

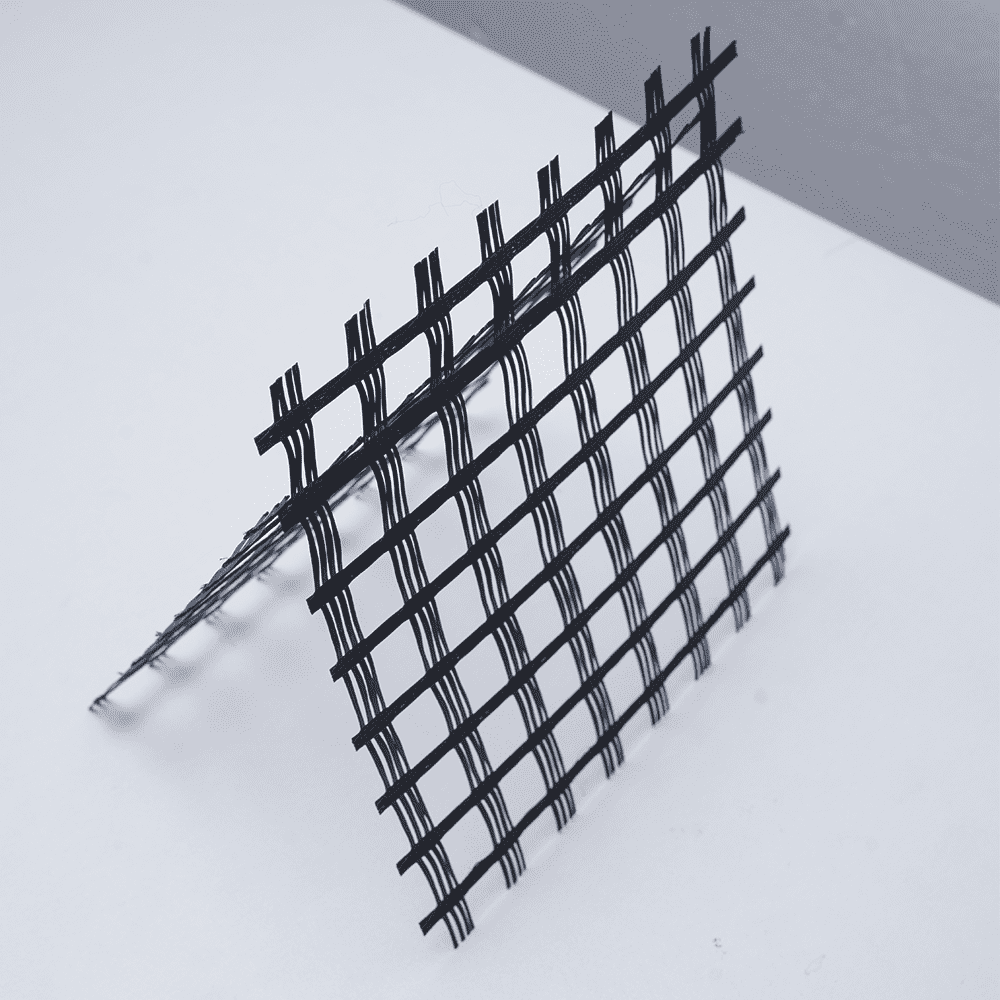

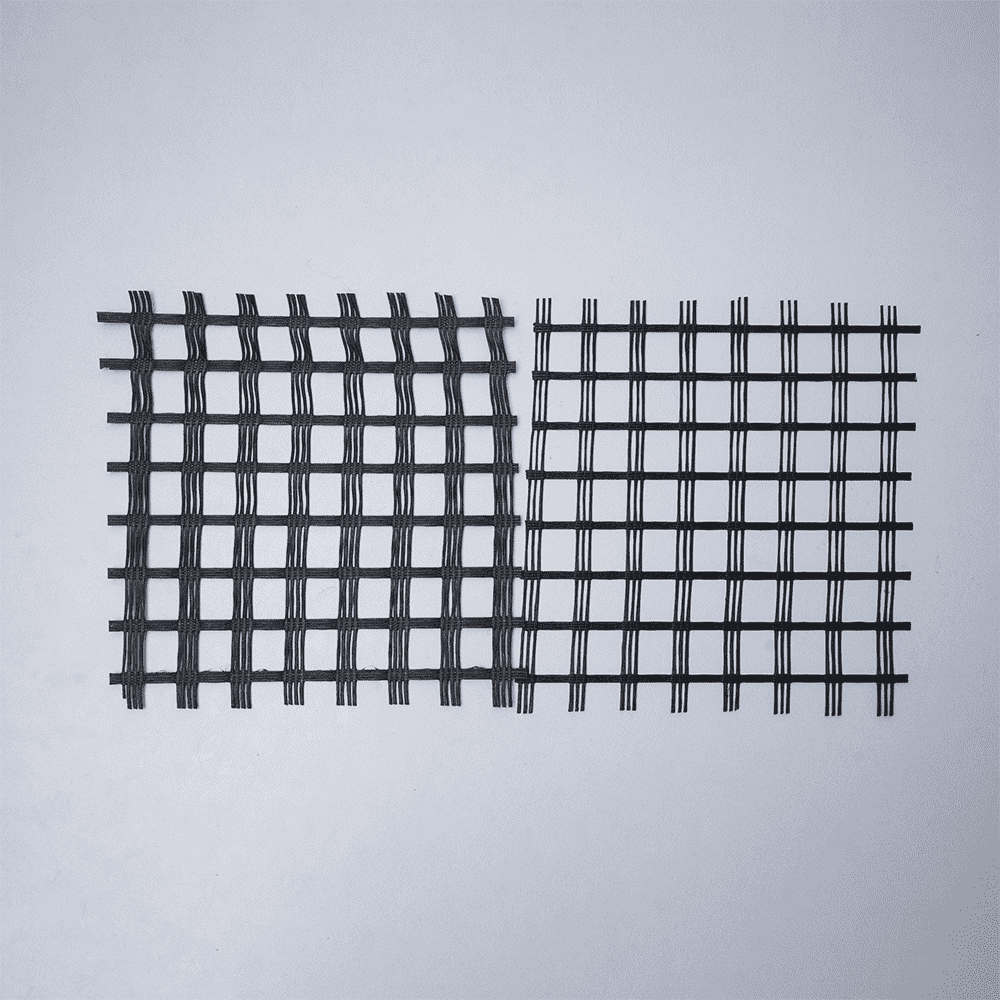

Expressway railway and port Geogrid Mesh

Geogrids are divided into

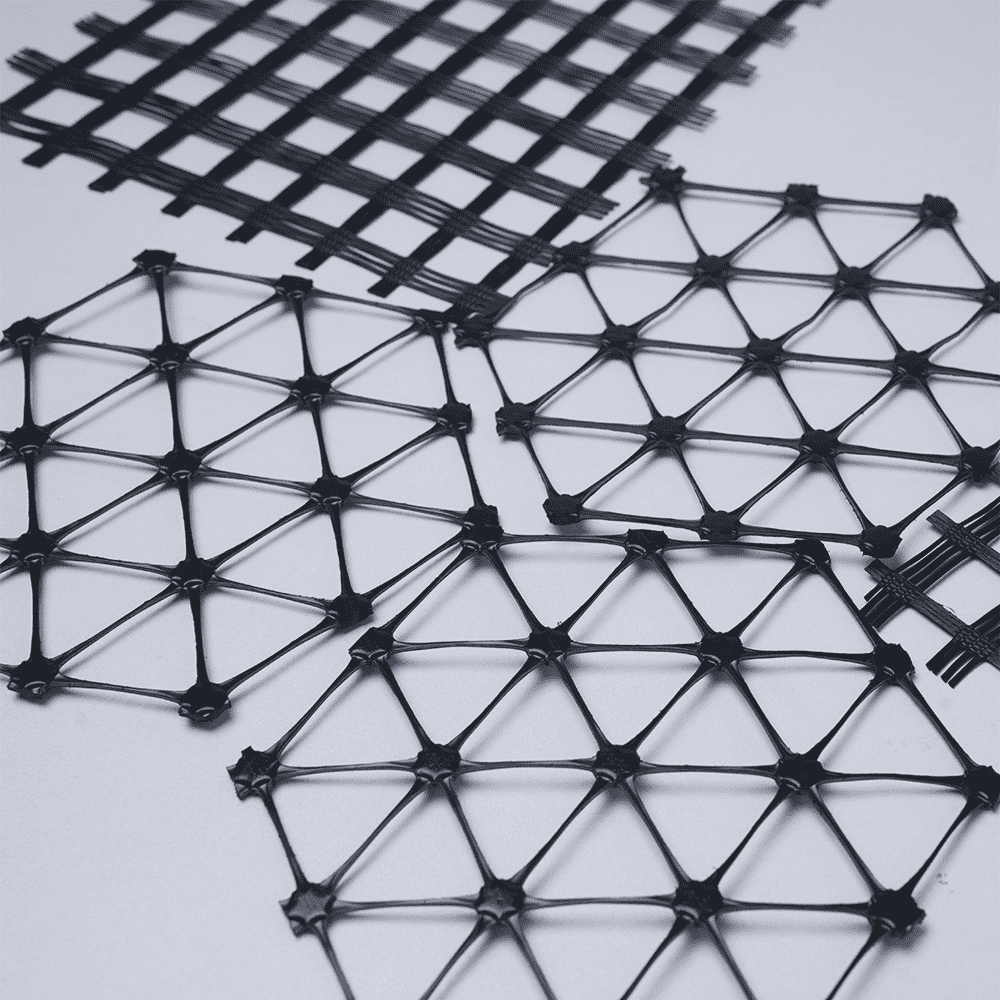

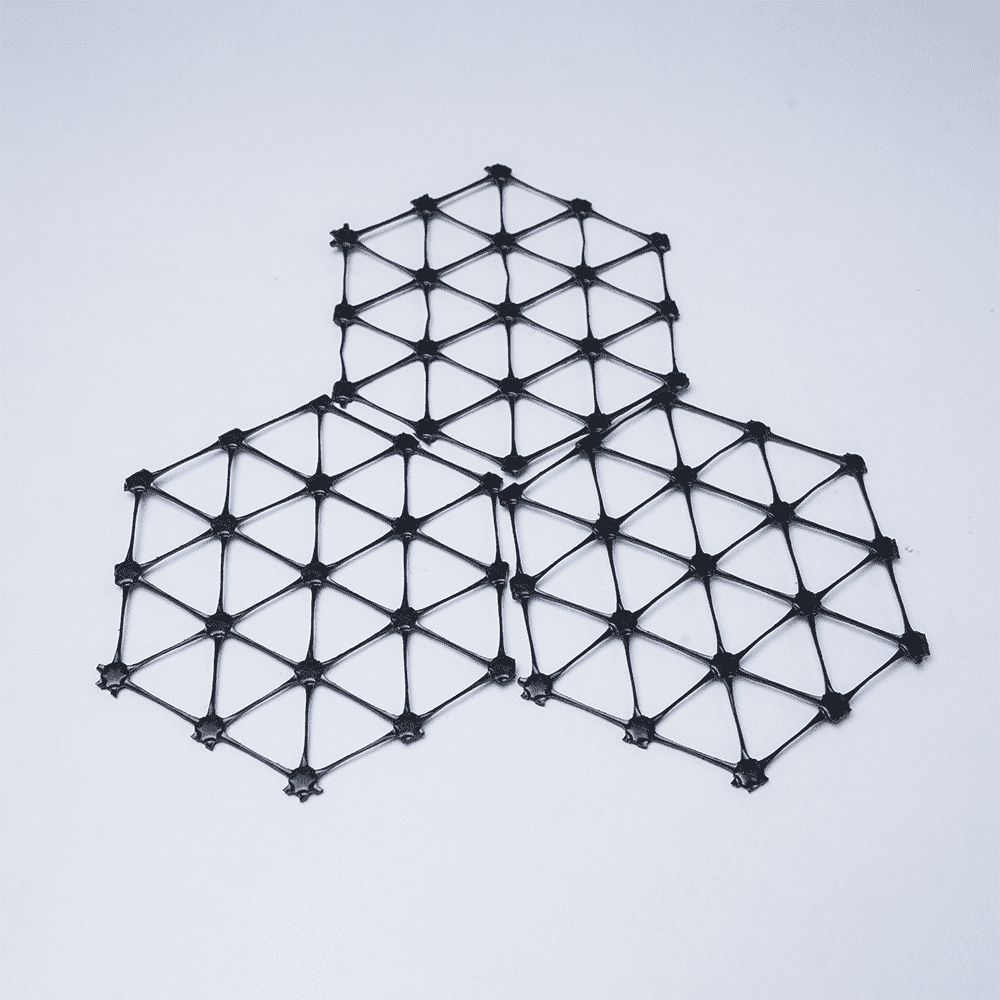

1.There are 4 most important categories of plastic geogrids, metal plastic geogrids, glass fiber geogrids, and polyester warp knitted polyester geogrids.
2.Grille is a two-dimensional grid or three-d grid with a sure top fashioned by using thermoplastic or molded excessive polymer substances such as polypropylene and polyvinyl chloride.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product specifications: TGDG35,TGDG50,TGDG80, TGDG120,TGDG160.TGDG260,TGDG300. etc., Width 1~3meters.

Expressway railway and port Geogrid Mesh

Features:

The products have high strength, elongation rate, high temperature resistance, light weight, and corrosion resistance. It can enhance the road surface and disperse the bearing stress of the road surface, extending the service life of the road surface

Expressway railway and port Geogrid Mesh

Application :

lt is appropriate for roadbed reinforcement such as highways, municipal roads, railways, and airstrips; dams forrivers and seas are strengthened; fences for orchards, vegetable plots, livestock, land, etc. are relevant to highways, municipalroads. railways. and airplanes. Reinforcement of the strengthened earth preserving wall of the runway and river dam.

Expressway railway and port Geogrid Mesh

One-way Stretch Plastic Geogrid GB/T17689-1999
Item	Specification
Item	TGDG25	TGDG35	TGDG50	TGDG80	TGDG110	TGDG150	TGDG170	TGDG200	TGDG220	TGDG240	TGDG260	TGDG280	TGDG300
Tensile strength KN/m≥	25	35	50	80	110	150	170	200	220	240	260	280	300
Standard elongation %≤	10.0
Tensile strength at 2% elongation KN/m≥	6	10	12	26	30	39	45	56	59	65	78	84.5	90
Tensile strength at 5% elongation KN/m≥	12	22	28	48	60	77	90	112	120	132	157	170	182
Creep Ultimate Strength KN/m≥	11	15	21	30.2	41	49	57	64	71.5	79	86	91.5	100
Width (m)	1～3

Packing of One-way Stretch Plastic Geogrid

Strengthening the Highway with Retaining Wall and Roadbed Geogrid Mesh

One-way Stretch Plastic Geogrid GB/T17689-1999
Item	Specification
Item	TGDG25	TGDG35	TGDG50	TGDG80	TGDG110	TGDG150	TGDG170	TGDG200	TGDG220	TGDG240	TGDG260	TGDG280	TGDG300
Tensile strength KN/m≥	25	35	50	80	110	150	170	200	220	240	260	280	300
Standard elongation %≤	10.0
Tensile strength at 2% elongation KN/m≥	6	10	12	26	30	39	45	56	59	65	78	84.5	90
Tensile strength at 5% elongation KN/m≥	12	22	28	48	60	77	90	112	120	132	157	170	182
Creep Ultimate Strength KN/m≥	11	15	21	30.2	41	49	57	64	71.5	79	86	91.5	100
Width (m)	1～3
