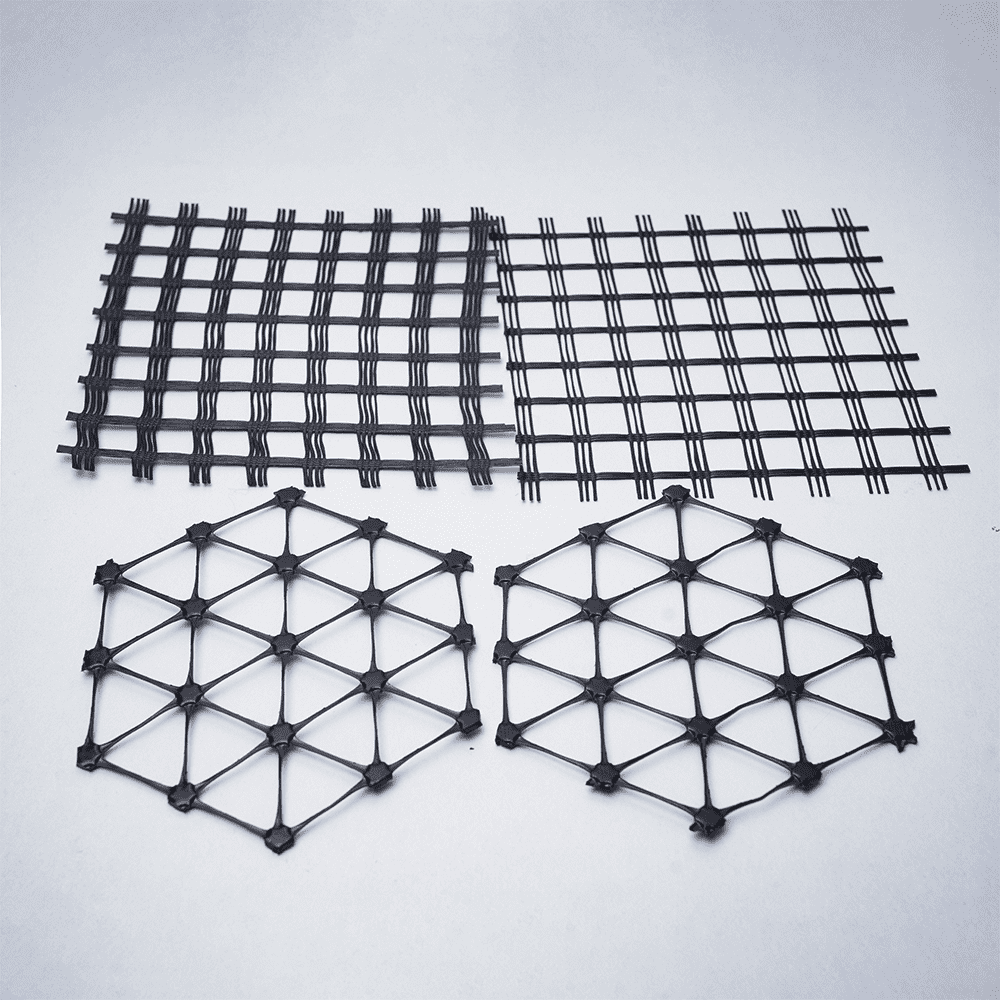

road construction airport construction Geogrid Mesh

Geogrids are divided into
1.There are four most necessary classes of plastic geogrids, steel plastic geogrids, glass fiber geogrids, and polyester warp knitted polyester geogrids.
2.Grille is a two-dimensional grid or three-d grid with a certain pinnacle usual by using the use of thermoplastic or molded immoderate polymer supplies such as polypropylene and polyvinyl chloride.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product specifications: TGDG35,TGDG50,TGDG80, TGDG120,TGDG160.TGDG260,TGDG300. etc., Width 1~3meters.

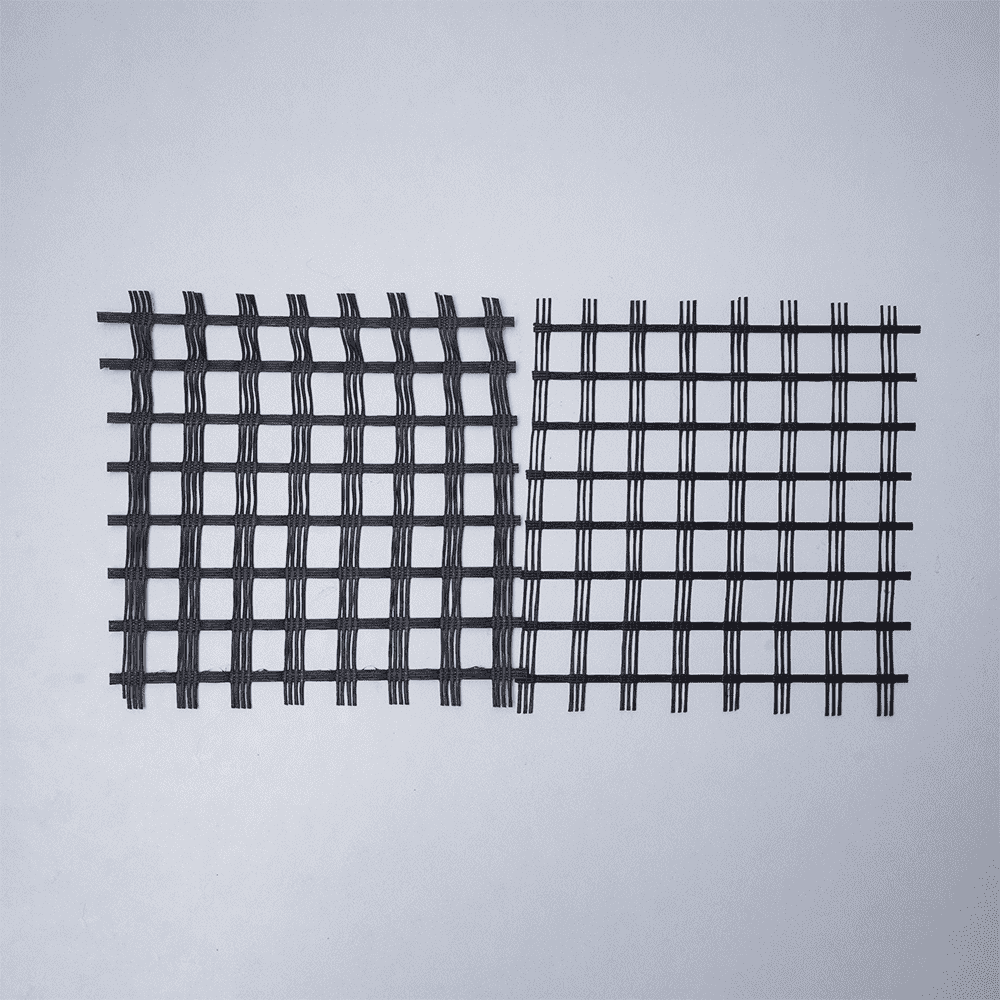

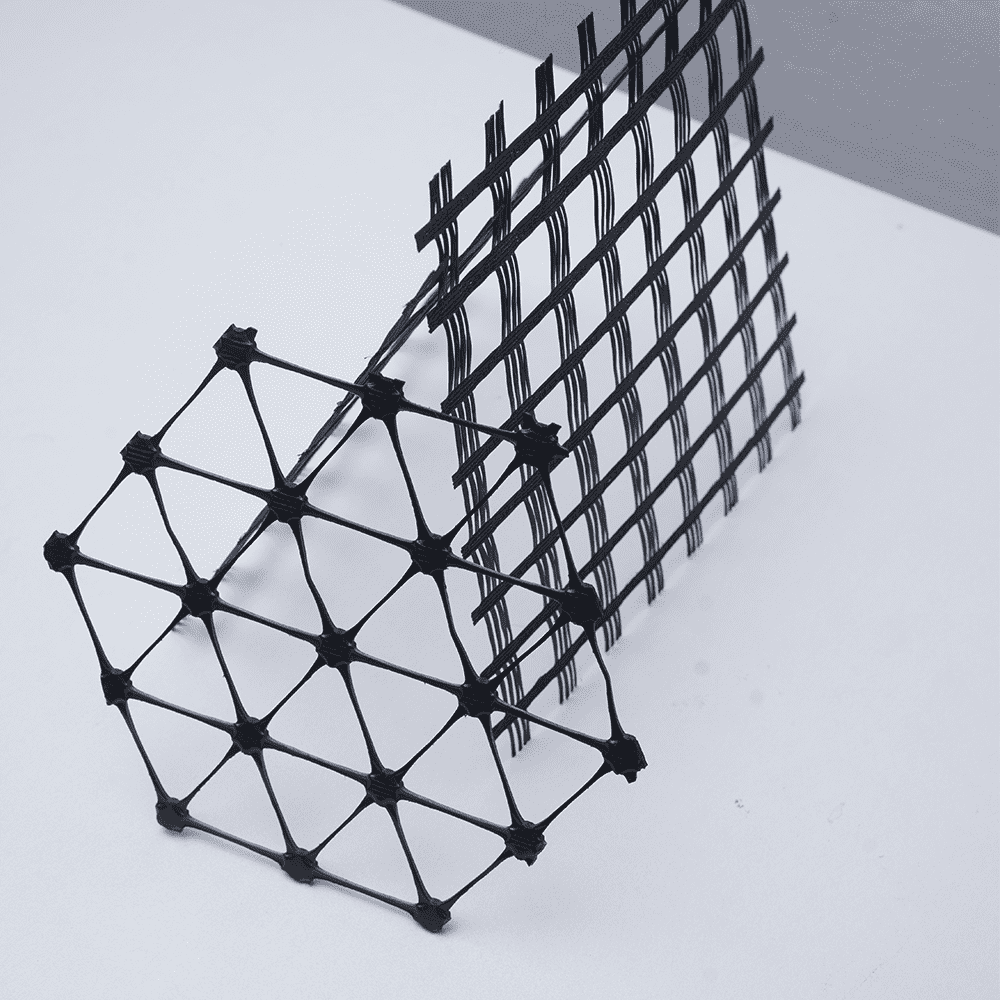

road construction airport construction Geogrid Mesh

Features:
The merchandise have excessive strength, elongation rate, excessive temperature resistance, mild weight, and corrosion resistance. It can decorate the street floor and disperse the bearing stress of the street surface, extending the carrier existence of the street floor

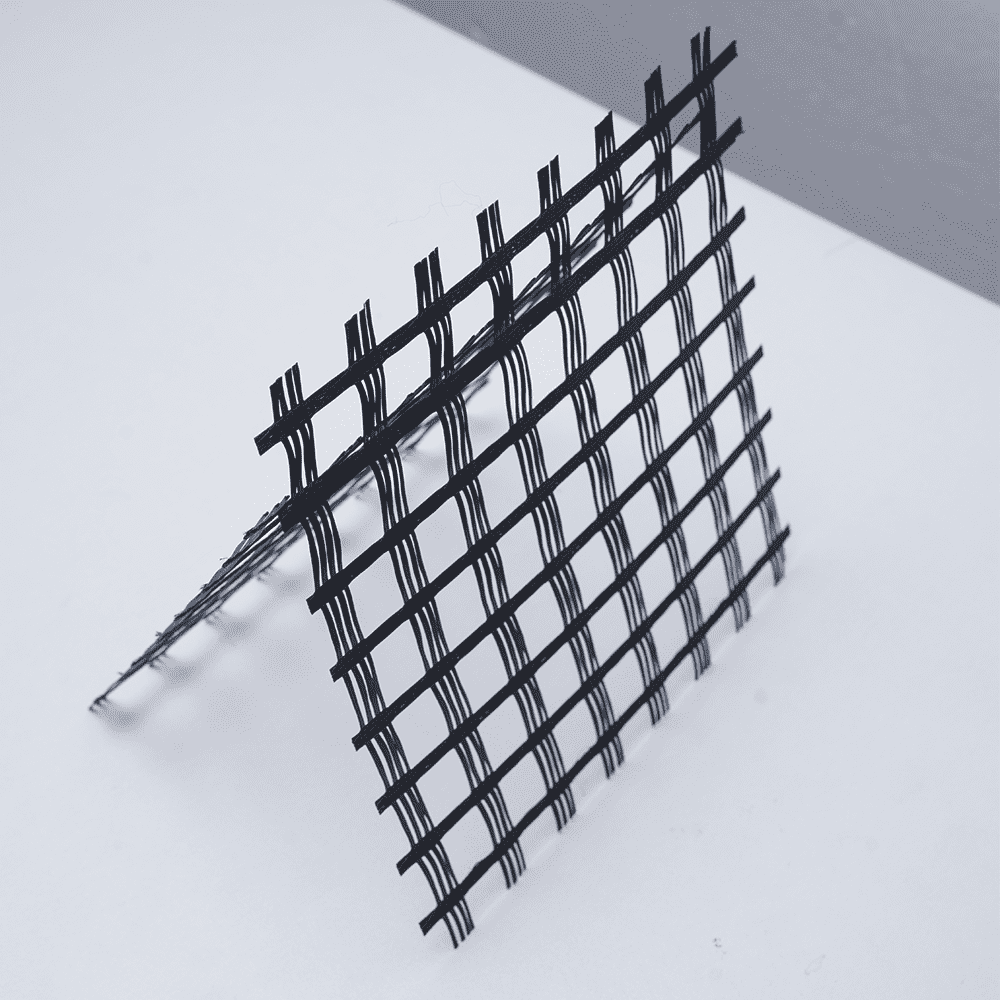

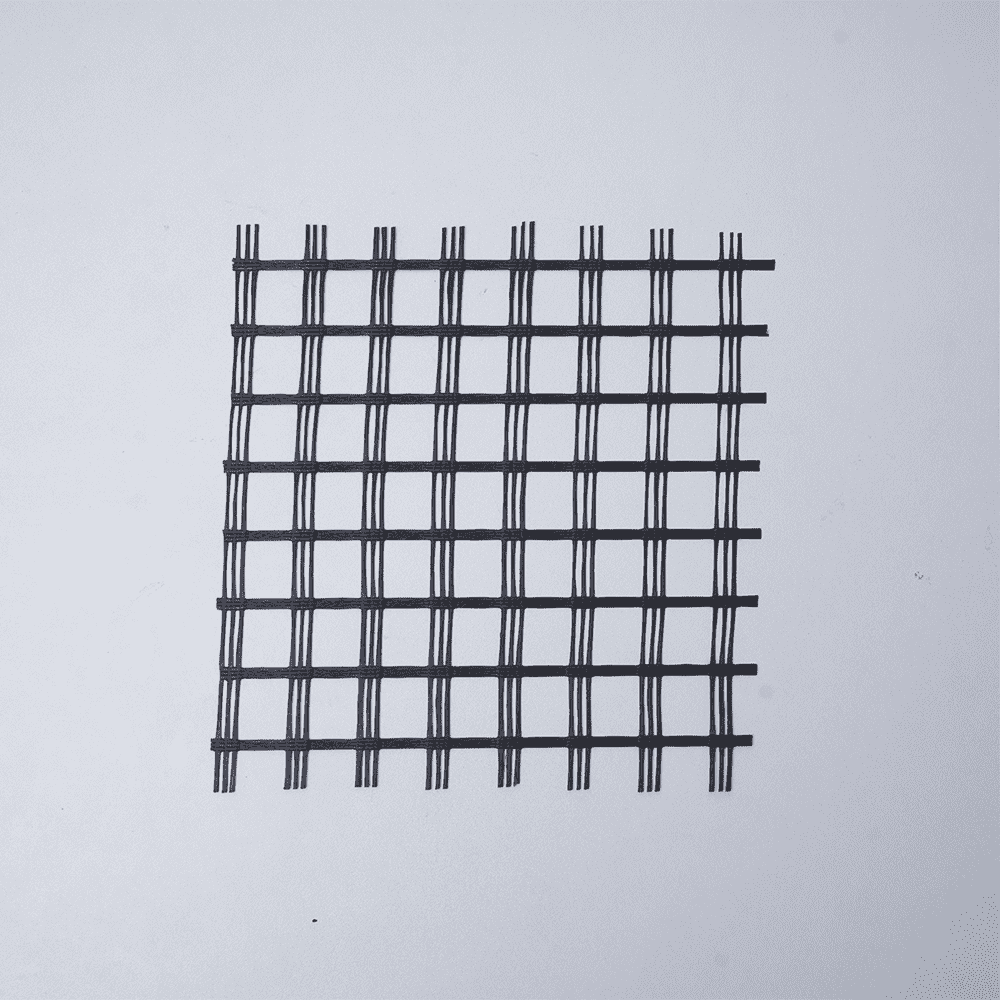

road construction airport construction Geogrid Mesh

Application :
lt is gorgeous for roadbed reinforcement such as highways, municipal roads, railways, and airstrips; dams forrivers and seas are strengthened; fences for orchards, vegetable plots, livestock, land, etc. are applicable to highways, municipalroads. railways. and airplanes. Reinforcement of the reinforced earth retaining wall of the runway and river dam.

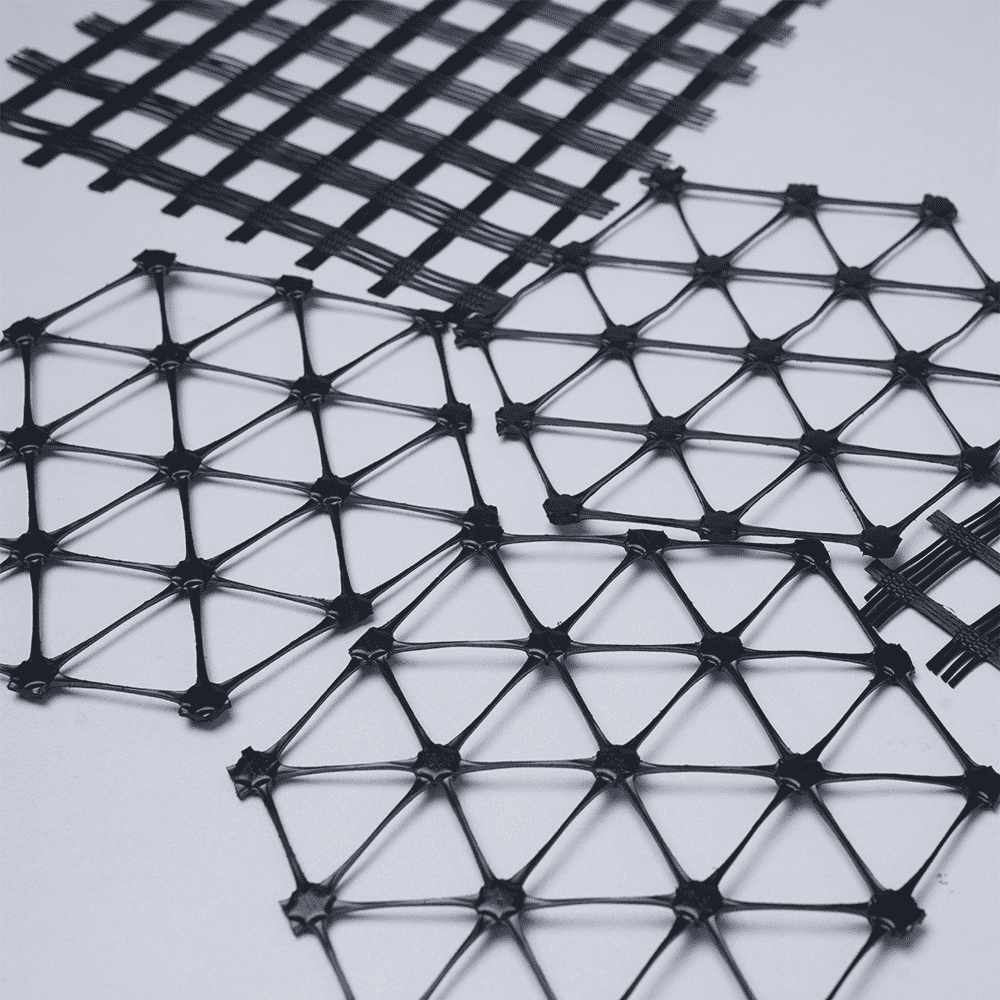

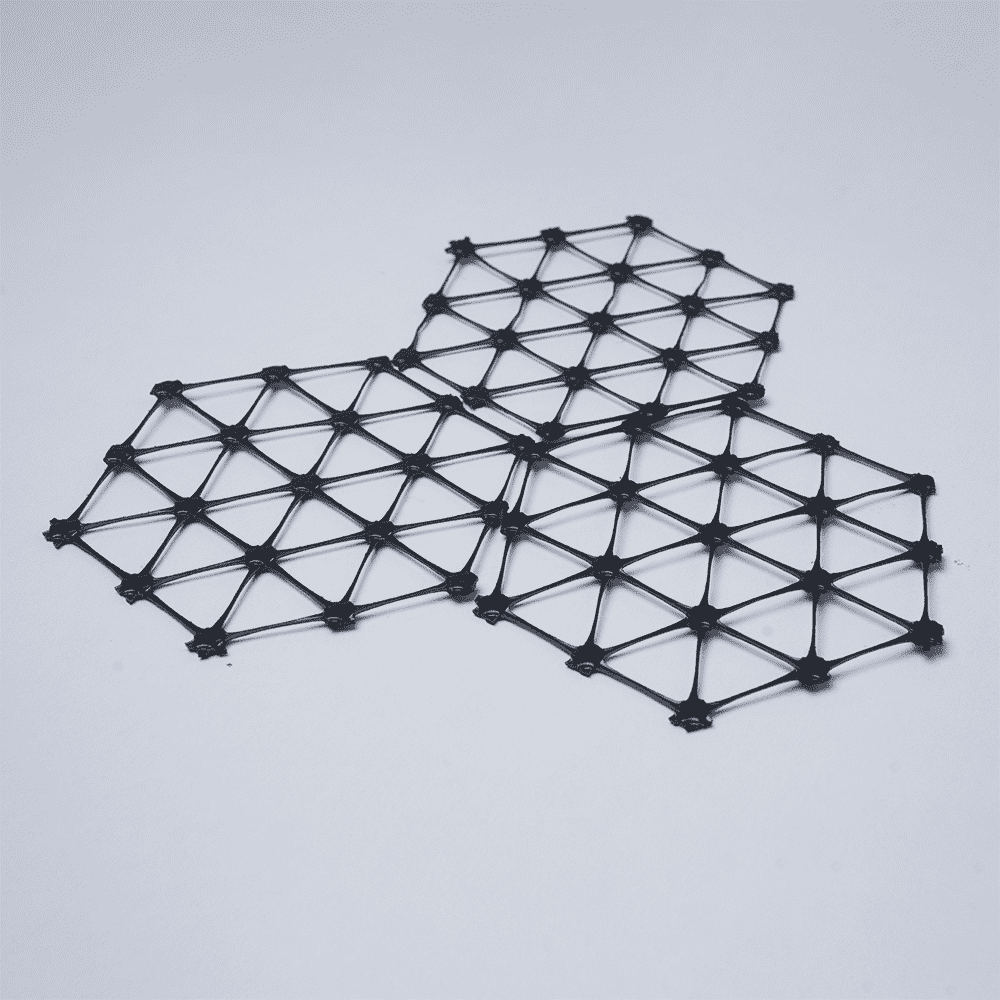

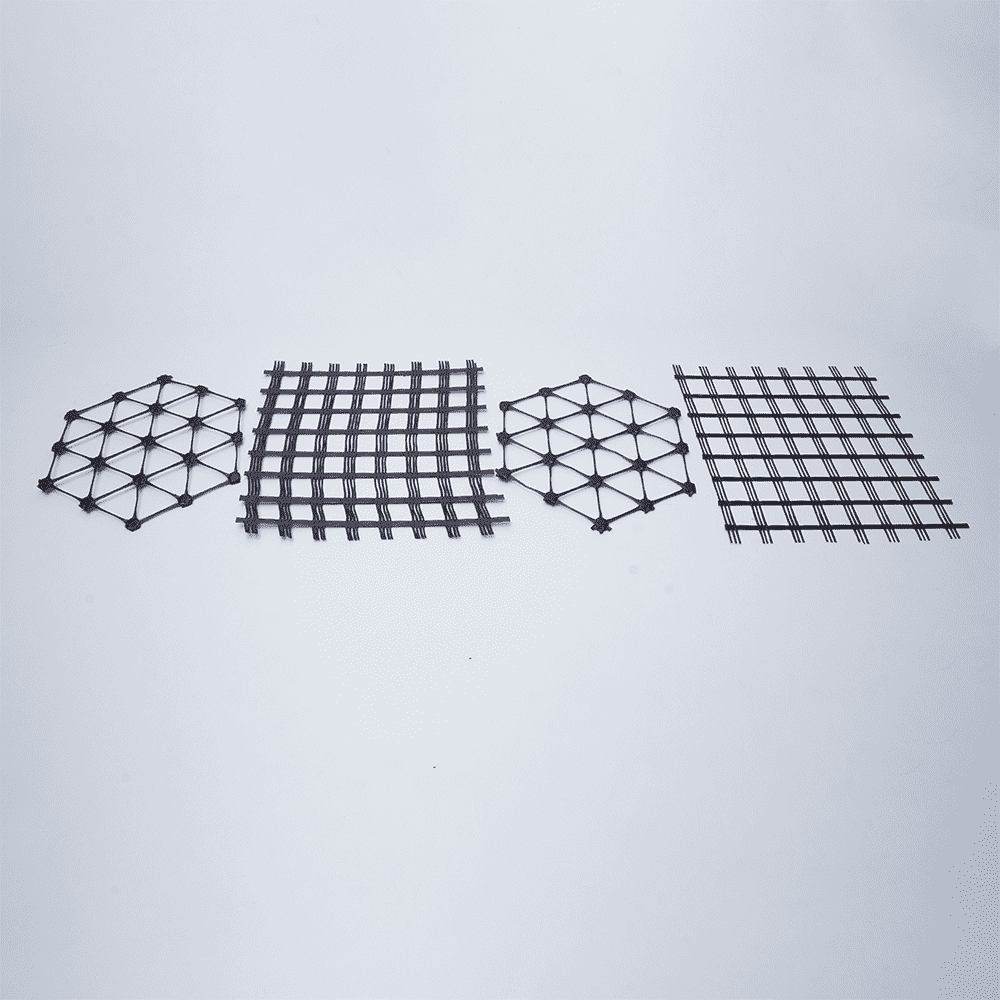

road construction airport construction Geogrid Mesh

One-way Stretch Plastic Geogrid GB/T17689-1999
Item	Specification
Item	TGDG25	TGDG35	TGDG50	TGDG80	TGDG110	TGDG150	TGDG170	TGDG200	TGDG220	TGDG240	TGDG260	TGDG280	TGDG300
Tensile strength KN/m≥	25	35	50	80	110	150	170	200	220	240	260	280	300
Standard elongation %≤	10.0
Tensile strength at 2% elongation KN/m≥	6	10	12	26	30	39	45	56	59	65	78	84.5	90
Tensile strength at 5% elongation KN/m≥	12	22	28	48	60	77	90	112	120	132	157	170	182
Creep Ultimate Strength KN/m≥	11	15	21	30.2	41	49	57	64	71.5	79	86	91.5	100
Width (m)	1～3

Packing of One-way Stretch Plastic Geogrid

Strengthening the Highway with Retaining Wall and Roadbed Geogrid Mesh

One-way Stretch Plastic Geogrid GB/T17689-1999
Item	Specification
Item	TGDG25	TGDG35	TGDG50	TGDG80	TGDG110	TGDG150	TGDG170	TGDG200	TGDG220	TGDG240	TGDG260	TGDG280	TGDG300
Tensile strength KN/m≥	25	35	50	80	110	150	170	200	220	240	260	280	300
Standard elongation %≤	10.0
Tensile strength at 2% elongation KN/m≥	6	10	12	26	30	39	45	56	59	65	78	84.5	90
Tensile strength at 5% elongation KN/m≥	12	22	28	48	60	77	90	112	120	132	157	170	182
Creep Ultimate Strength KN/m≥	11	15	21	30.2	41	49	57	64	71.5	79	86	91.5	100
Width (m)	1～3
