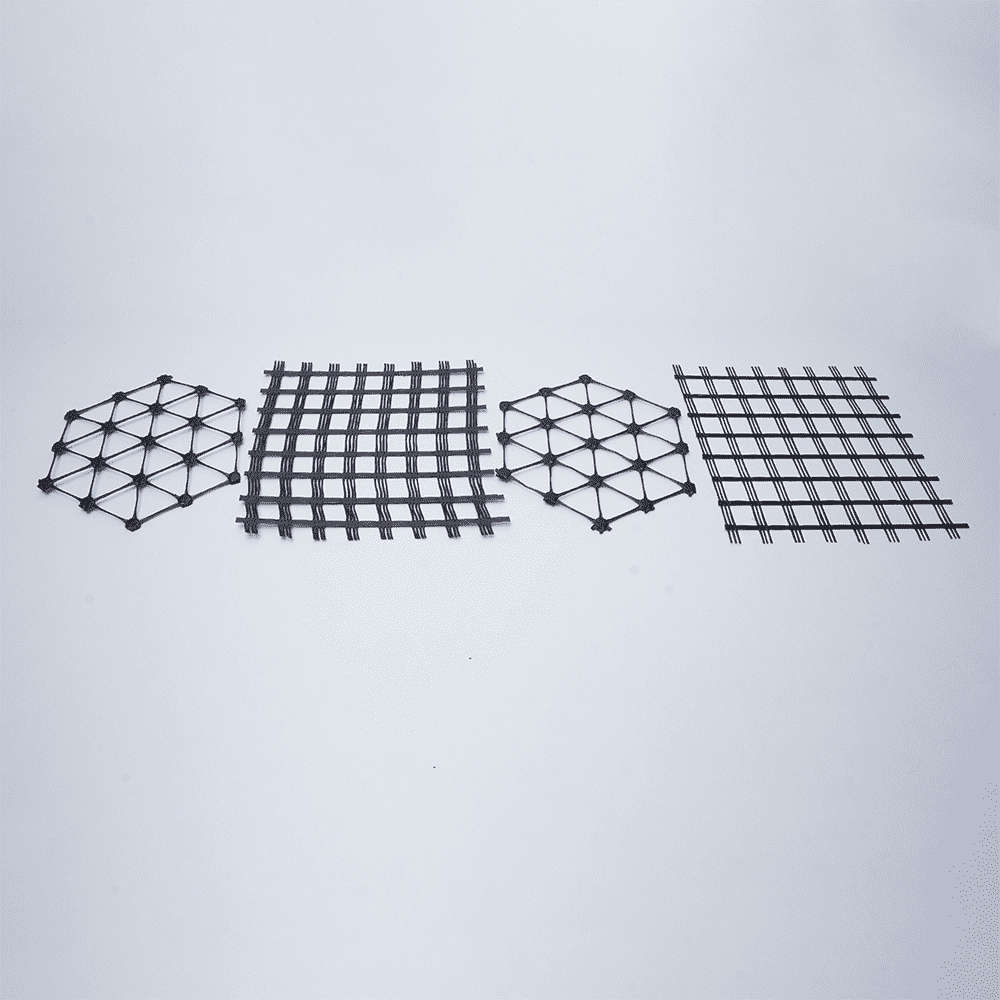

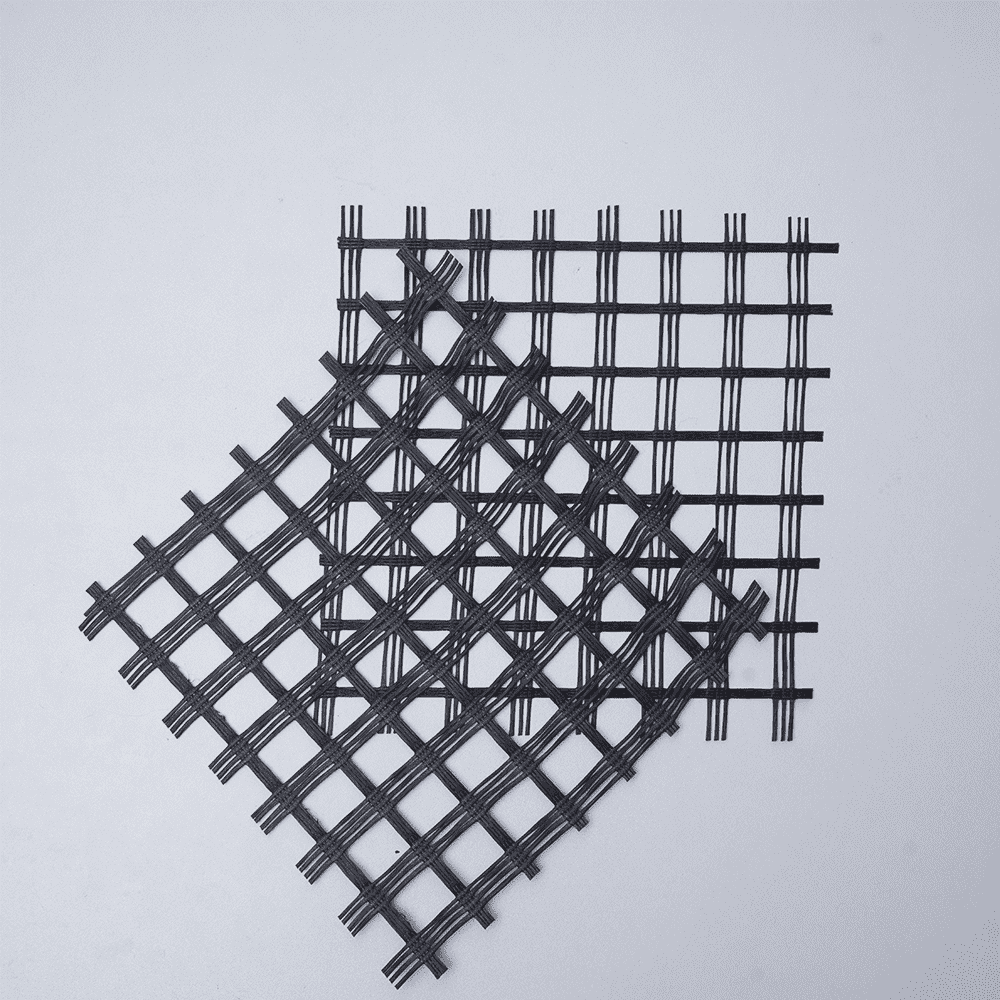

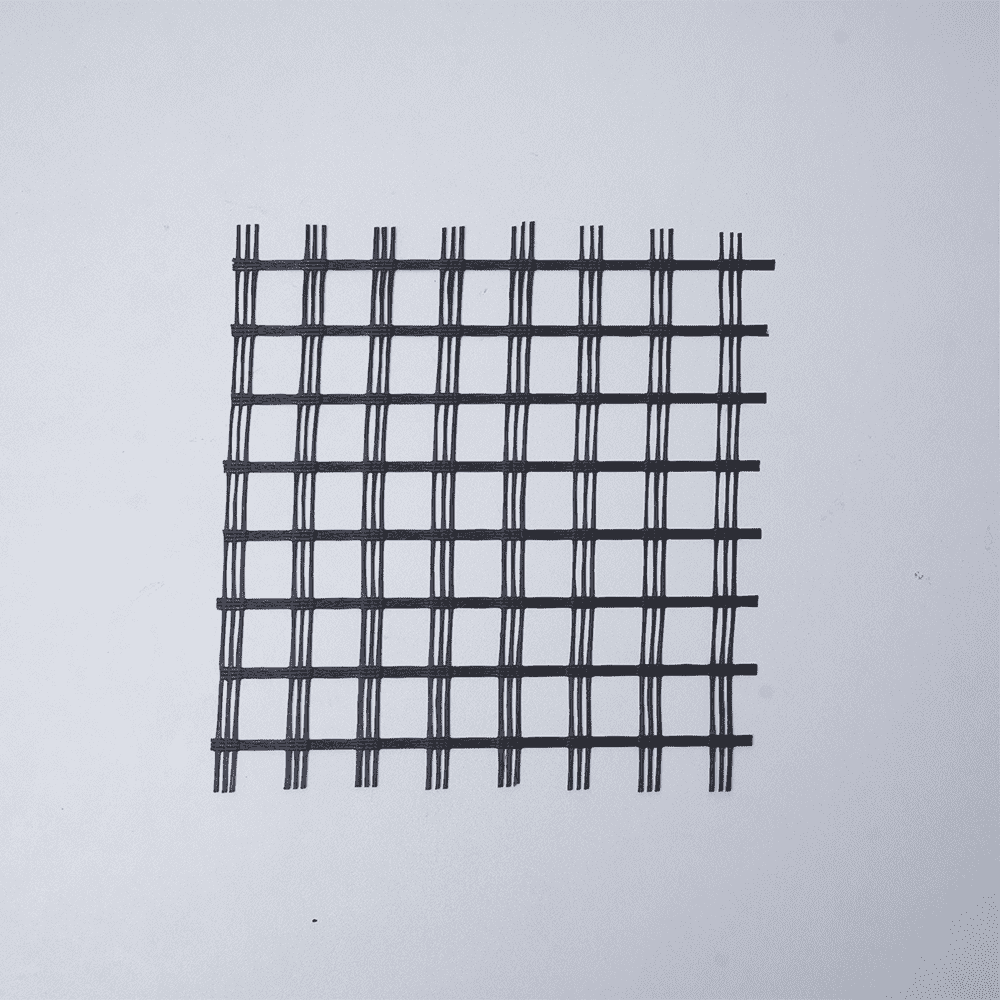

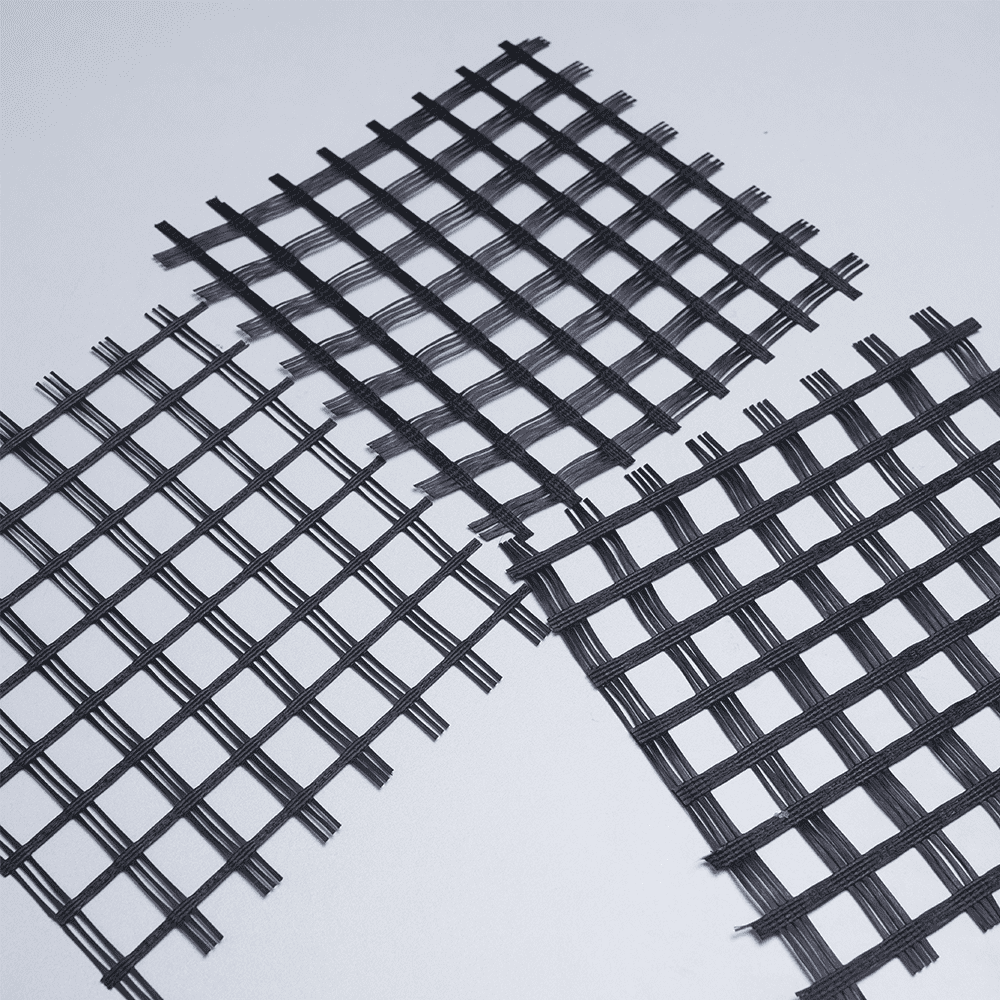

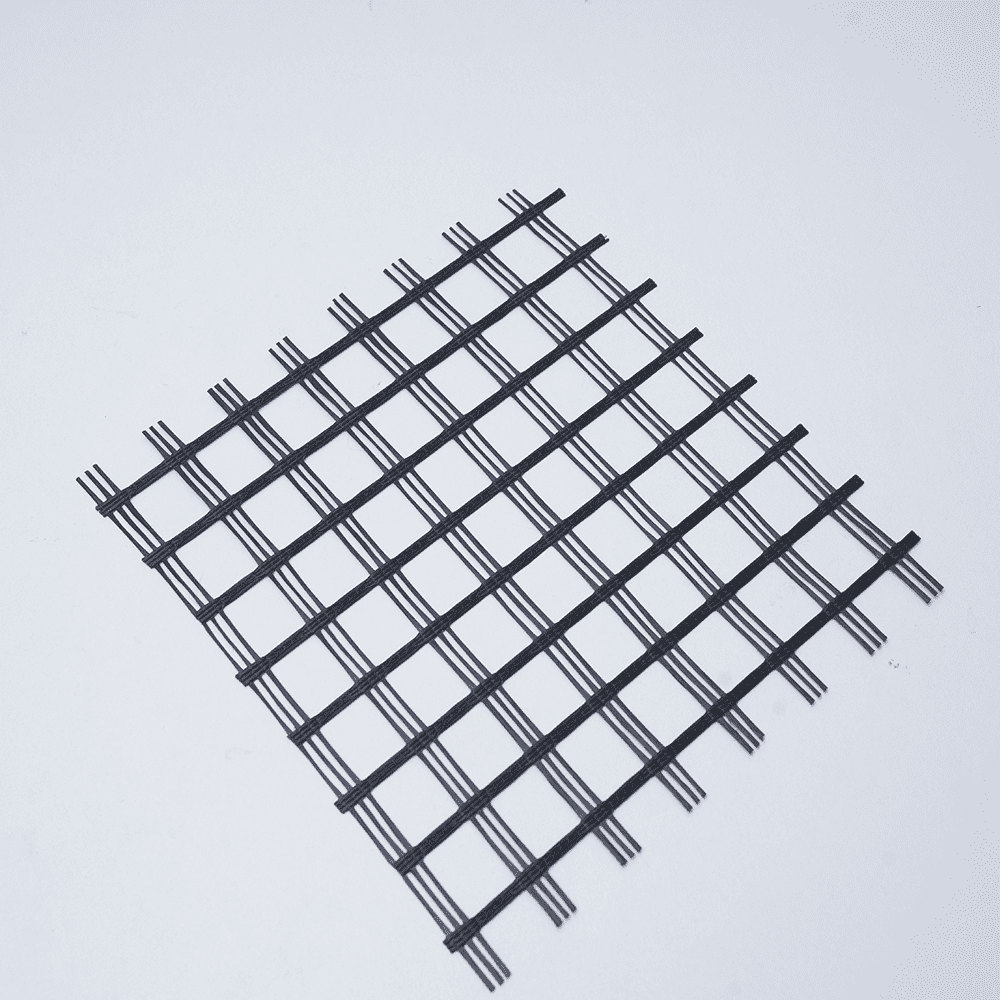

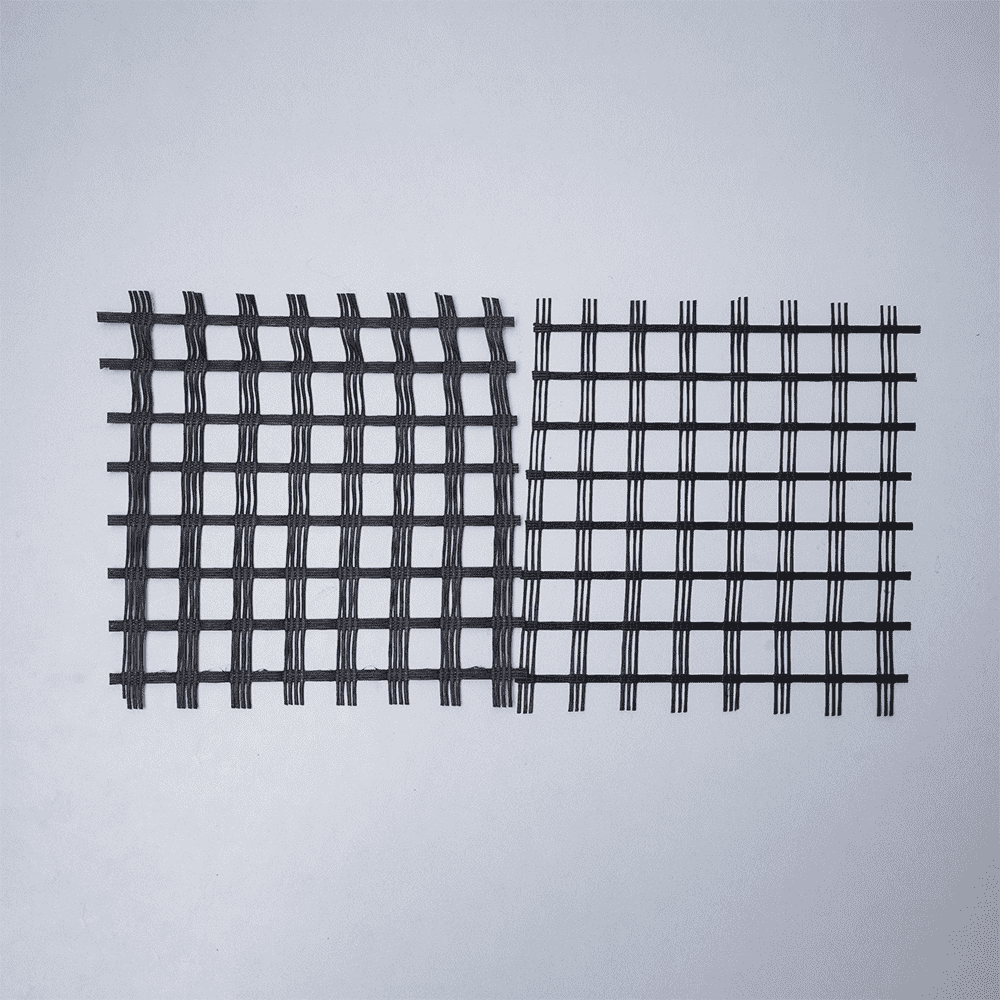

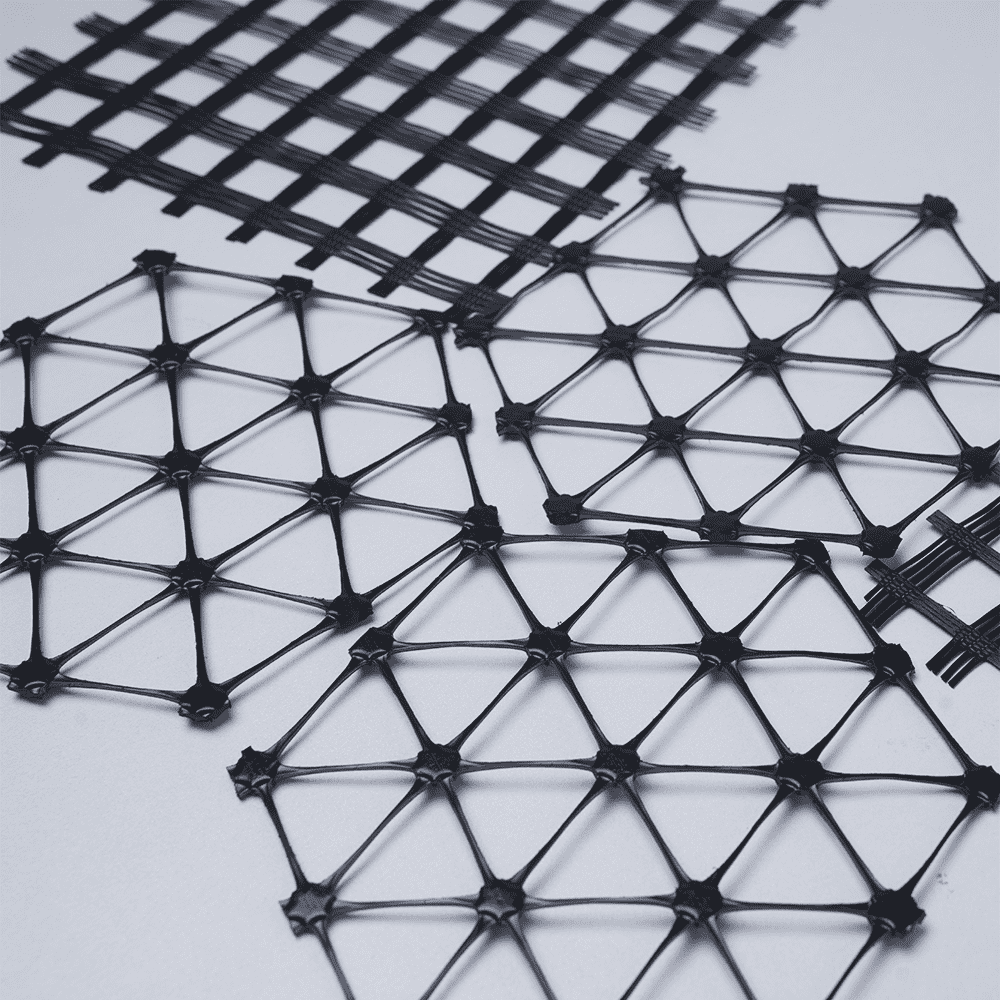

Strengthening the Highway with Retaining Wall and Roadbed Geogrid Mesh
Geogrids are divided into
1.There are four major categories of plastic geogrids, steel plastic geogrids, glass fiber geogrids, and polyester warp knitted polyester geogrids.
2.Grille is a two-dimensional grid or three-dimensional grid with a certain height formed by thermoplastic or molded high polymer materials such as polypropylene and polyvinyl chloride.
Strengthening the Highway with Retaining Wall and Roadbed Geogrid Mesh
Product specifications: TGDG35,TGDG50,TGDG80, TGDG120,TGDG160.TGDG260,TGDG300. etc., Width 1~3meters.
Features:
1. Enhance the roadbed, enhance the steadiness and bearing capacity, and face up to larger alternating loads
2 Prevent roadbed deformation and cracking brought about with the aid of the loss of roadbed materials!
3. The filling ability of the filling at the back of the keeping wall can be improved. and the engineering price can be saved.
Application : lt is suitable for roadbed reinforcement such as highways, municipal roads, railways, and airstrips; dams forrivers and seas are strengthened; fences for orchards, vegetable plots, livestock, land, etc. are applicable to highways, municipalroads. railways. and airplanes. Reinforcement of the reinforced earth retaining wall of the runway and river dam.
One-way Stretch Plastic Geogrid GB/T17689-1999 | |||||||||||||
Item | Specification | ||||||||||||
TGDG25 | TGDG35 | TGDG50 | TGDG80 | TGDG110 | TGDG150 | TGDG170 | TGDG200 | TGDG220 | TGDG240 | TGDG260 | TGDG280 | TGDG300 | |
Tensile strength KN/m≥ | 25 | 35 | 50 | 80 | 110 | 150 | 170 | 200 | 220 | 240 | 260 | 280 | 300 |
Standard elongation %≤ | 10.0 | ||||||||||||
Tensile strength at 2% elongation KN/m≥ | 6 | 10 | 12 | 26 | 30 | 39 | 45 | 56 | 59 | 65 | 78 | 84.5 | 90 |
Tensile strength at 5% elongation KN/m≥ | 12 | 22 | 28 | 48 | 60 | 77 | 90 | 112 | 120 | 132 | 157 | 170 | 182 |
Creep Ultimate Strength KN/m≥ | 11 | 15 | 21 | 30.2 | 41 | 49 | 57 | 64 | 71.5 | 79 | 86 | 91.5 | 100 |
Width (m) | 1～3 | ||||||||||||
Packing of One-way Stretch Plastic Geogrid
One-way Stretch Plastic Geogrid GB/T17689-1999 | |||||||||||||
Item | Specification | ||||||||||||
TGDG25 | TGDG35 | TGDG50 | TGDG80 | TGDG110 | TGDG150 | TGDG170 | TGDG200 | TGDG220 | TGDG240 | TGDG260 | TGDG280 | TGDG300 | |
Tensile strength KN/m≥ | 25 | 35 | 50 | 80 | 110 | 150 | 170 | 200 | 220 | 240 | 260 | 280 | 300 |
Standard elongation %≤ | 10.0 | ||||||||||||
Tensile strength at 2% elongation KN/m≥ | 6 | 10 | 12 | 26 | 30 | 39 | 45 | 56 | 59 | 65 | 78 | 84.5 | 90 |
Tensile strength at 5% elongation KN/m≥ | 12 | 22 | 28 | 48 | 60 | 77 | 90 | 112 | 120 | 132 | 157 | 170 | 182 |
Creep Ultimate Strength KN/m≥ | 11 | 15 | 21 | 30.2 | 41 | 49 | 57 | 64 | 71.5 | 79 | 86 | 91.5 | 100 |
Width (m) | 1～3 | ||||||||||||
