HDPE Geocell-Cellular confinement system
HDPE Geocell-Cellular confinement system- The reason why geocells have attracted the attention of engineering circles due to their excellent efficacy should start from their basic principles. Foreign literature called it "a three-dimensional cellular confinement system, which can significantly improve the performance of general fill material erosion control insect hosts and applications over a wide range." Its the key principle is three-dimensional confinement. . We all know that when a car drives on the desert, two deep ruts will be formed. The pressed part is deeply sunken, and the sides of the rut will be raised high. If the vehicle behind continues to advance along the rut, the sunken part will sink further, and the raised part will rise further, until the raised part rubs against the chassis of the vehicle, and the sunken rut buries most of the wheels, making it impossible to move forward. The reason for this is that when the external load acts on the surface of the foundation, according to Prandell's theory and Taylor's theory: under the action of the concentrated load, the active zone 1 sinks under compression, and decomposes and transmits the force to both sides to the The transition zone 2, the transition zone 2 passes to the passive zone 3 again, and the passive zone will be deformed and uplifted without restriction.
HDPE Geocell-Cellular confinement system

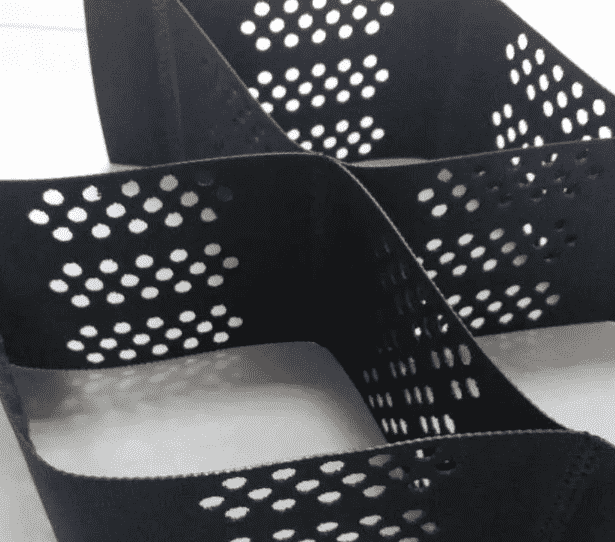

Geocell is a three-dimensional mesh cell structure formed by reinforced HDPE sheet material through high-strength welding. Generally, it is made by ultrasonic needle welding. Due to engineering needs, some holes are punched on the diaphragm.

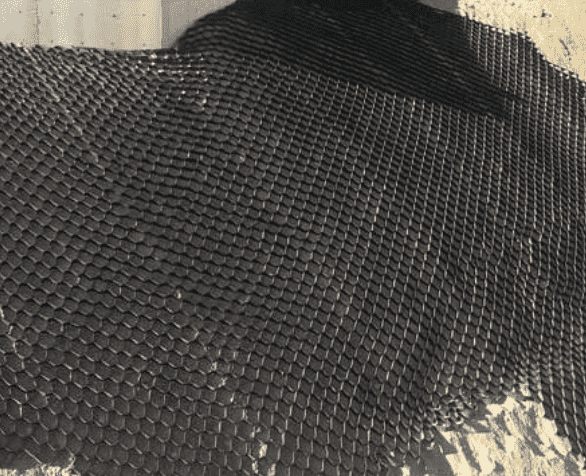

It can be stretched freely, can be collapsed during transportation, and can be stretched into a net shape during construction, and filled with loose materials such as soil, gravel, concrete, etc., to form a structure with strong lateral restrictions and high rigidity.
The material is light, wear-resistant, stable in chemical properties, resistant to light and oxygen aging, acid and alkali resistant, suitable for different soils and deserts and other soil conditions.
High lateral restriction and anti-slip, anti-deformation, effectively enhance the bearing capacity of the subgrade and disperse the load.
Changing geocell height, welding distance and other geometric dimensions can meet different engineering needs.
Free expansion and contraction, small transportation volume; convenient connection and fast construction speed.
HDPE Geocell-Cellular confinement system Features:
It can be stretched freely, can be collapsed during transportation, and can be stretched into a net shape during construction, and filled with loose materials such as soil, gravel, concrete, etc., to form a structure with strong lateral restrictions and high rigidity.
The material is light, wear-resistant, stable in chemical properties, resistant to light and oxygen aging, acid and alkali resistant, suitable for different soils and deserts and other soil conditions.
High lateral restriction and anti-slip, anti-deformation, effectively enhance the bearing capacity of the subgrade and disperse the load.
Changing geocell height, welding distance and other geometric dimensions can meet different engineering needs.
Flexible expansion and contraction, small transportation volume, convenient connection and fast construction speed. That is to say, once the load acts on the subgrade, a tapered active area will be formed under the load, which will be squeezed through the transition area, thereby causing the passive area to bulge.
| Product Specifications and Performance Parameters | ||||
| Product number | High(cm) | Riveting point distance(mm) | Square per piece(m2) | Pieces per piece |
| 50-500 | 50 | 500 | 50 | 71 |
| 100-500 | 100 | 500 | 50 | 71 |
| 150-500 | 150 | 500 | 50 | 71 |
| 200-500 | 200 | 500 | 50 | 71 |
| Remarks: Other specifications can be produced according to contracts and agreements. | ||||
Packaging of the HDPE Geocell-Cellular confinement system
You can freely choose Strips packaging or Pallet Packaging
Company strength
The company specializes in the production and operation of geosynthetics. It has first-class machinery and equipment, experienced technicians and a large production team. The annual output is 30 million square meters of geotextile, 50 million square meters of geomembrane and 30 million square meters of geocell. Products are widely used in cushions to deal with the increased bearing capacity of weak foundations, subways, basements, expressways, railways, tunnels and other projects. field, and was recognized as a high-quality material supplier by the national authority, and sold overseas.
| Product Specifications and Performance Parameters | ||||
| Product number | High(cm) | Riveting point distance(mm) | Square per piece(m2) | Pieces per piece |
| 50-500 | 50 | 500 | 50 | 71 |
| 100-500 | 100 | 500 | 50 | 71 |
| 150-500 | 150 | 500 | 50 | 71 |
| 200-500 | 200 | 500 | 50 | 71 |
| Remarks: Other specifications can be produced according to contracts and agreements. | ||||
