Non-toxic HDPE Geomembrane

HDPE geomembrane ；
Product specifications; Thickness; 0.3-3.0mm, width 1-8 meters, helps customization
Product characteristics; HDPE geomembrane has proper resistance to environmental stress cracking, big company temperature (-60-+60), and prolonged service existence (≥50 years)
Application scope; Merit in water conservancy, aquaculture, fish ponds, and so forth

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Introduction:

HDPE geomembrane is widely used in various engineering fields. It is mainly used for anti-seepage, anti-corrosion, waterproofing, etc. It can effectively protect engineering structures, extend service life and reduce maintenance costs.

Features:

1, HDPE geomembrane has top chemical steadiness and can withstand the corrosion of sturdy acid, sturdy alkali and oil, which is a desirable anti-corrosion material;

2, HDPE geomembrane has excessive tensile strength, which makes it capable to meet the wishes of high-standard engineering projects;

3. HDPE geomembrane has robust climate resistance and anti-aging properties, and can be used for long-term publicity whilst preserving its authentic performance;

4. The complete overall performance of HDPE geomembrane. HDPE geomembrane has robust tensile energy and elongation at break, which makes HDPE geomembrane can be used in a range of harsh geological and climatic conditions. It is adaptable to uneven geological agreement and has excessive pressure resistance!

Non-toxic HDPE Geomembrane

Application:

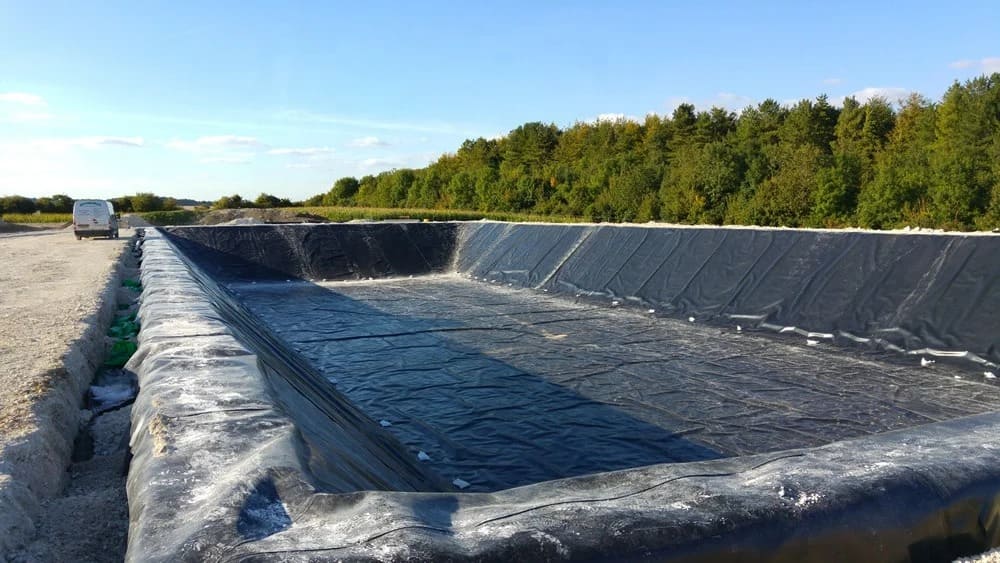

1. HDPE geomembrane is suitable for environmental security and health: such as landfills, sewage cure plants, electricity plant regulating ponds, industrial and fitness facilities to stabilize waste;

2, HDPE geomembrane is relevant to water conservancy engineering: such as rivers, lakes, reservoirs, dams seepage control, plugging, reinforcement, waterway seepage control, vertical coronary heart wall, berms and so on;

3. HDPE geomembrane is used in municipal engineering: subway, subway engineering duties of buildings, planting rooftops, roof gardens, sewage pipe seepage control;

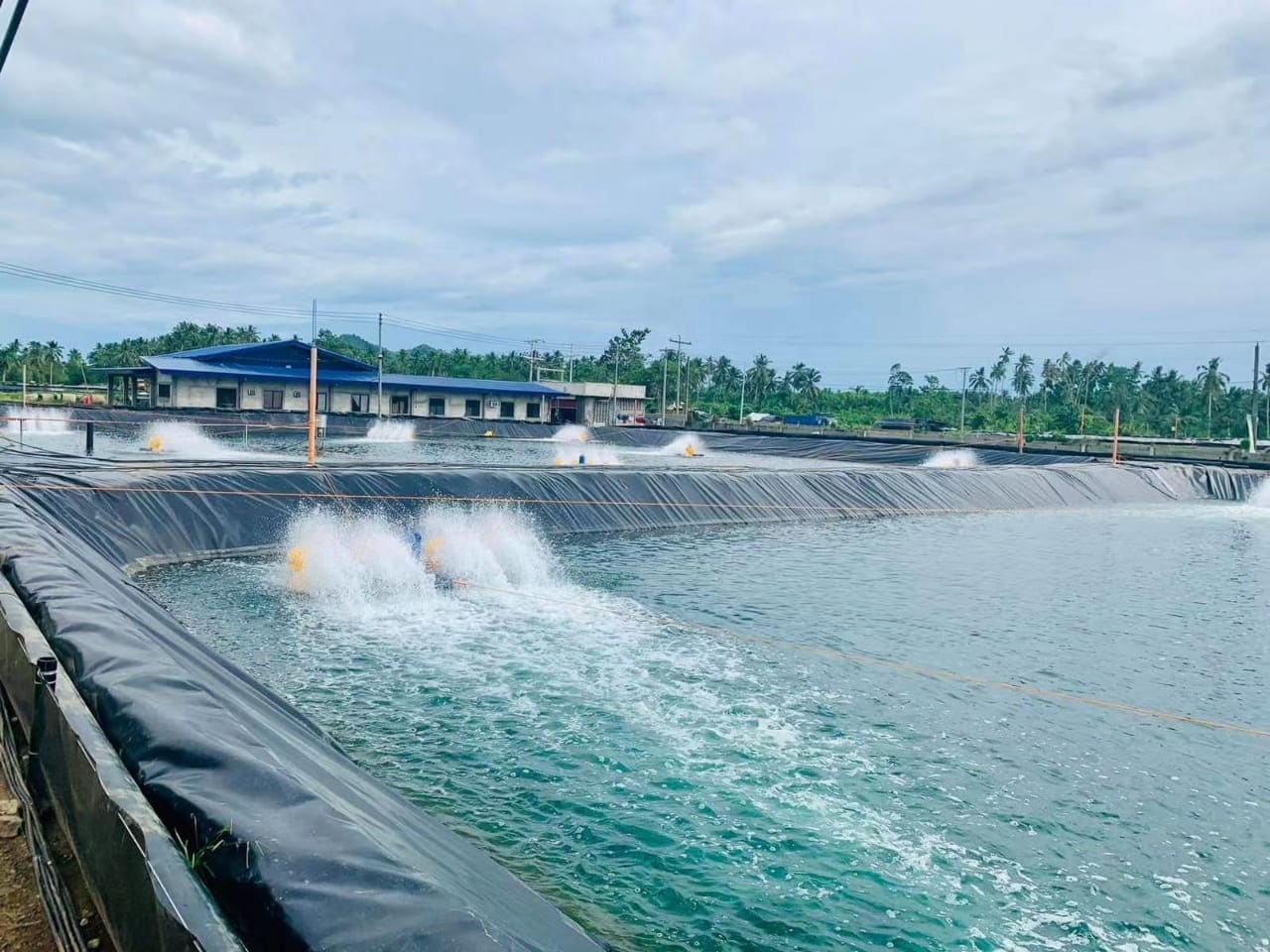

4, HDPE geomembrane is relevant to aquaculture: intensive, manufacturing unit farming ponds, fish ponds, shrimp pond lining, sea cucumber circle slope protection, etc.;

5. Polyethylene impermeable membrane for gardening: synthetic lakes, rivers, reservoirs, golf route pool bottom, berms, inexperienced lawns and so on;

Product Implementation Standards: ASTM Standard

HDPE Geomembrane Technical Parameter (GRI GM13 ASTM Standard)
Spec Properties	Test method ASTM	GMS0.5	GMS0.75	GMS1.0	GMS1.25	GMS1.5	GMS2.0	GMS2.5
Thickness	D5199	0.5mm	0.75mm	1.00mm	1 .25mm	1.50mm	2.00mm	2.50mm
Density (≥ g/cc)	D1505	0.940	0.940	0.940	0.940	0.940	0.940	0.940
Tensile Properties (Each direction)(≥) • yield strength • break strength • yield elongation • break elongation	D6693 Type IV	8 kN/m 14 kN/m 12% 700%	11 kN/m 20 kN/m 12% 700%	15 kN/m 27 kN/m 12% 700%	18 kN/m 33 kN/m 12% 700%	22 kN/m 40 kN/m 12% 700%	29kN/m 53 KN/m 12% 700%	37kN/m 67kN/m 12% 700%
Tear Resistance (≥)	D 1004	64N	93N	125 N	156N	187N	249 N	311 N
Puncture Resistance(≥)	D 4833	160N	240N	320 N	400 N	480N	640 N	800 N
Stress Crack Resistance (≥)	D 5397	300 hr	300 hr	300 hr	300 hr	300 hr	300 hr	300 hr
Carbon Black Content	D 1603	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%
Carbon Black Dispersion	D 5596	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)
Oxidative Induction Time(OIT)(≥) (a)Standard OIT ——or—— (b)High Pressure OIT	D 3895 D 5885	100 min 400 min	100 min 400 min	100 min 400 min	100 min 400 min	100 min 400 min	100 min 400 min	100 min 400 min
