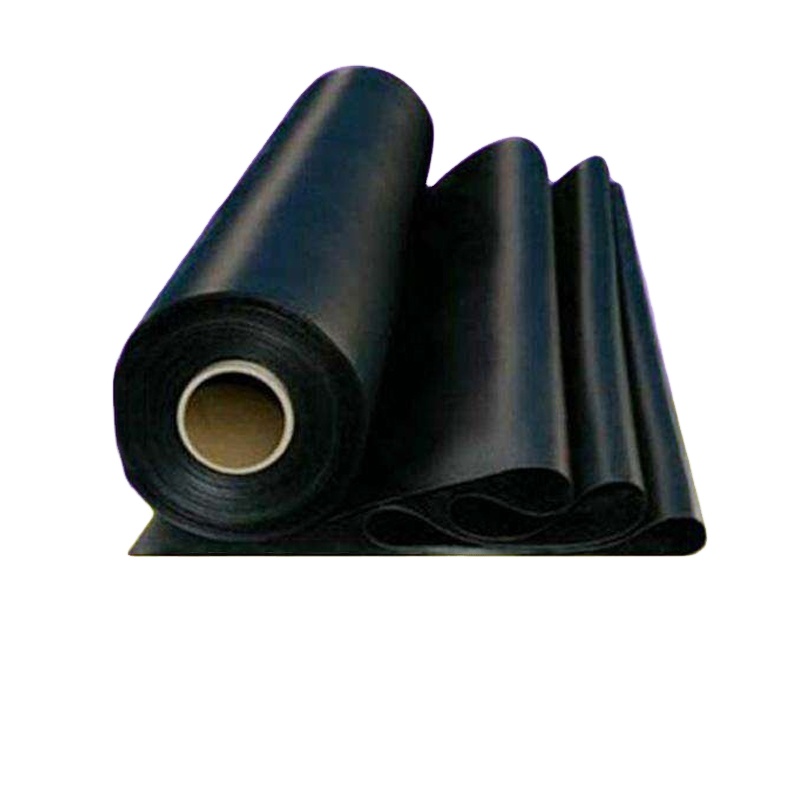

Special Geomembrane for Landfill Plants HDPE Geomembrane

High anti-seepage coefficient, desirable chemical stability, anti-aging performance, anti-plant root system.

Good financial efficiency, quick construction, environmental protection, and non-toxicity.

Special Geomembrane for Landfill Plants HDPE Geomembrane Thickness: 1.0-2.0mm; Width: 4-8 meters. Customization Available

High carrier temperature (-60℃ ~ +60℃) and lengthy carrier lifestyles (50 years).

Contact Now E-Mail Telephone WhatsApp

Product Details

Special Geomembrane for Landfill Plants HDPE Geomembrane :Thickness: 1.0-2.0mm; Width: 4-8m size in accordance to consumer requirements.

Features:HDPE geomembrane has gorgeous environmental stres:s crack resistance, giant working temperature (-60 +60) andlong provider lifestyles (50 years).

Application: Environmental safety engineering, water conservancy geotechnical engineering. municipal engineering. landscaping. petrochemical. Mining, transportation amenities engineering, agriculture, aquaculture (fish ponds, linings of shrimp ponds, etc.)

Special Geomembrane for Landfill Plants HDPE Geomembrane

Product Implementation Standards: America GRI GM-13 Standard

HDPE Geomembrane Technical Parameter (GRI GM13 ASTM Standard)
Spec Properties	Test method ASTM	GMS0.5	GMS0.75	GMS1.0	GMS1.25	GMS1.5	GMS2.0	GMS2.5
Thickness	D5199	0.5mm	0.75mm	1.00mm	1 .25mm	1.50mm	2.00mm	2.50mm
Density (≥ g/cc)	D1505	0.940	0.940	0.940	0.940	0.940	0.940	0.940
Tensile Properties (Each direction)(≥) • yield strength • break strength • yield elongation • break elongation	D6693 Type IV	8 kN/m 14 kN/m 12% 700%	11 kN/m 20 kN/m 12% 700%	15 kN/m 27 kN/m 12% 700%	18 kN/m 33 kN/m 12% 700%	22 kN/m 40 kN/m 12% 700%	29kN/m 53 KN/m 12% 700%	37kN/m 67kN/m 12% 700%
Tear Resistance (≥)	D 1004	64N	93N	125 N	156N	187N	249 N	311 N
Puncture Resistance(≥)	D 4833	160N	240N	320 N	400 N	480N	640 N	800 N
Stress Crack Resistance (≥)	D 5397	300 hr	300 hr	300 hr	300 hr	300 hr	300 hr	300 hr
Carbon Black Content	D 1603	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%
Carbon Black Dispersion	D 5596	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)
Oxidative Induction Time(OIT)(≥) (a)Standard OIT ——or—— (b)High Pressure OIT	D 3895 D 5885	100 min 400 min	100 min 400 min	100 min 400 min	100 min 400 min	100 min 400 min	100 min 400 min	100 min 400 min

Packing of HDPE Geomembrane

Special Geomembrane for Landfill Plants HDPE Geomembrane

Equipment of HDPE Geomembrane

Special Geomembrane for Landfill Plants HDPE Geomembrane

Special Geomembrane for Landfill Plants HDPE Geomembrane

Special Geomembrane for Landfill Plants HDPE Geomembrane

HDPE Geomembrane Technical Parameter (GRI GM13 ASTM Standard)
Spec Properties	Test method ASTM	GMS0.5	GMS0.75	GMS1.0	GMS1.25	GMS1.5	GMS2.0	GMS2.5
Thickness	D5199	0.5mm	0.75mm	1.00mm	1 .25mm	1.50mm	2.00mm	2.50mm
Density (≥ g/cc)	D1505	0.940	0.940	0.940	0.940	0.940	0.940	0.940
Tensile Properties (Each direction)(≥) • yield strength • break strength • yield elongation • break elongation	D6693 Type IV	8 kN/m 14 kN/m 12% 700%	11 kN/m 20 kN/m 12% 700%	15 kN/m 27 kN/m 12% 700%	18 kN/m 33 kN/m 12% 700%	22 kN/m 40 kN/m 12% 700%	29kN/m 53 KN/m 12% 700%	37kN/m 67kN/m 12% 700%
Tear Resistance (≥)	D 1004	64N	93N	125 N	156N	187N	249 N	311 N
Puncture Resistance(≥)	D 4833	160N	240N	320 N	400 N	480N	640 N	800 N
Stress Crack Resistance (≥)	D 5397	300 hr	300 hr	300 hr	300 hr	300 hr	300 hr	300 hr
Carbon Black Content	D 1603	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%
Carbon Black Dispersion	D 5596	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)
Oxidative Induction Time(OIT)(≥) (a)Standard OIT ——or—— (b)High Pressure OIT	D 3895 D 5885	100 min 400 min	100 min 400 min	100 min 400 min	100 min 400 min	100 min 400 min	100 min 400 min	100 min 400 min
