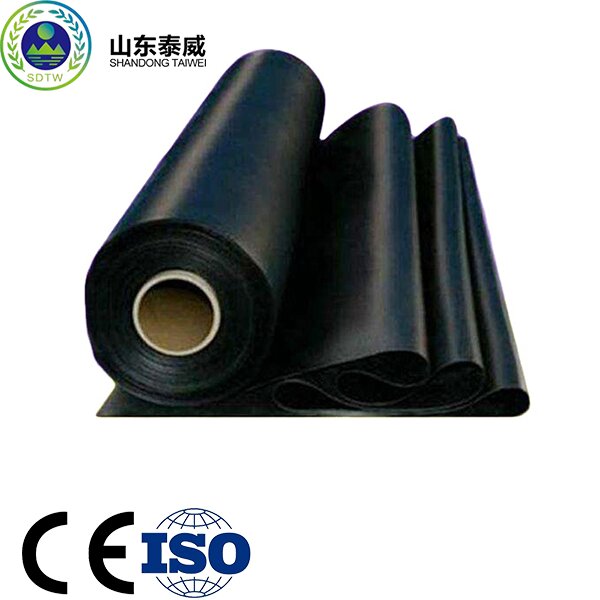

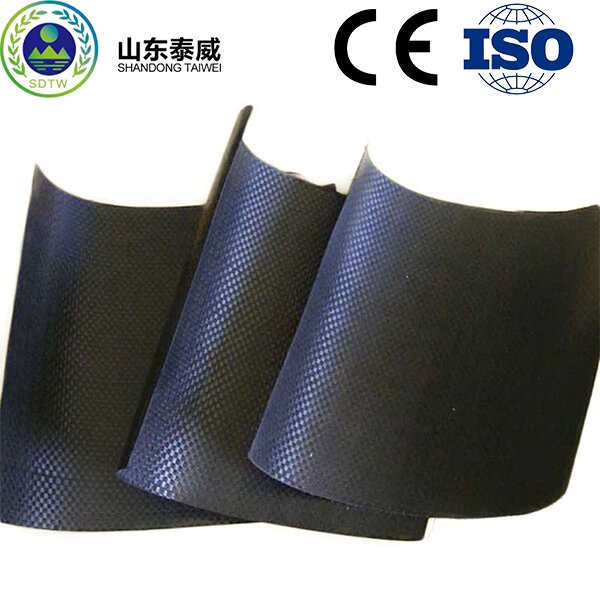

Composite Geomembrane
Non-woven geotextile is used as the substrate, and polyethylene, polyvinyl chloride and other materials are used asthe membrane. The composite geotextile of the non-woven fabric, has one fabric with one membrane,two fabric with one membrane, two menbrane with one fabric ect.
Thickness: 0.3-3mm;
Width: 4-8m size in accordance to person requirements.
Product specifications:
One layer fabric with one layer membrane: fabric uint weight100~800gsm, membrane thickness: 0.l~l.0m
Two laver fabric with one laver membrane: fabric uint weiht 100~400gsm.membrane thickness: 0.2~1.0mm
One layer fabric with two layer membrane: fabric uint weight 100~800gsm , membrane thickness: 0.1~0.8mm
Features: good flexibility, in addition to the role of geotextile isolation, drainage reinforcement, protection, etc.there is also a closed (anti-seepage)function.
Application : lt is an ideal anti-seepage material, which is widely used in water conservancy and trafic tunnel projects such as channels.guarding, plain reservoirs, anti-seepage reinforcement of reservoirs and anti-seepage of rockfill dams.
Product implementation standards:
Composite Geomembrane Technical Specification | ||||||||||
Item | Index | |||||||||
1 | Nominal breaking strength / ( kN / m ) | 5 | 7.5 | 10 | 12 | 14 | 16 | 18 | 20 | |
2 | Longitudinal and transverse rupture strength /( kN / m )≥ | 5.0 | 7.5 | 10 | 12 | 14 | 16 | 18 | 20 | |
3 | Vertical and horizontal standard strength corresponding to elongation /% | 30-100 | ||||||||
4 | CBR bursting strength /kN ≥ | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3.0 | 3.2 | |
5 | Vertical and horizontal tear strength / kN ≥ | 0.15 | 0.25 | 0.32 | 0.40 | 0.48 | 0.56 | 0.62 | 0.70 | |
8 | Vertical Permeability Index / ( cm / s) | According customer needs | ||||||||
9 | Width deviation /% | -1.0 | ||||||||
Item | Membrane thickness/mm | |||||||||
0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 1.0 | |||
Hydrostatic pressure resistance / MPa | 1 fabric with 1 membrane | 0.4 | 0.5 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 | |
2 fabric with 1 membrane | 0.5 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 | 1.8 | ||
Packing of Composite Geomembrane
Usage Scenarios of Composite Geomembrane
Composite Geomembrane Technical Specification | ||||||||||
Item | Index | |||||||||
1 | Nominal breaking strength / ( kN / m ) | 5 | 7.5 | 10 | 12 | 14 | 16 | 18 | 20 | |
2 | Longitudinal and transverse rupture strength /( kN / m )≥ | 5.0 | 7.5 | 10 | 12 | 14 | 16 | 18 | 20 | |
3 | Vertical and horizontal standard strength corresponding to elongation /% | 30-100 | ||||||||
4 | CBR bursting strength /kN ≥ | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3.0 | 3.2 | |
5 | Vertical and horizontal tear strength / kN ≥ | 0.15 | 0.25 | 0.32 | 0.40 | 0.48 | 0.56 | 0.62 | 0.70 | |
8 | Vertical Permeability Index / ( cm / s) | According customer needs | ||||||||
9 | Width deviation /% | -1.0 | ||||||||
Item | Membrane thickness/mm | |||||||||
0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 1.0 | |||
Hydrostatic pressure resistance / MPa | 1 fabric with 1 membrane | 0.4 | 0.5 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 | |
2 fabric with 1 membrane | 0.5 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 | 1.8 | ||
Composite Geomembrane Technical Specification | ||||||||||
Item | Index | |||||||||
1 | Nominal breaking strength / ( kN / m ) | 5 | 7.5 | 10 | 12 | 14 | 16 | 18 | 20 | |
2 | Longitudinal and transverse rupture strength /( kN / m )≥ | 5.0 | 7.5 | 10 | 12 | 14 | 16 | 18 | 20 | |
3 | Vertical and horizontal standard strength corresponding to elongation /% | 30-100 | ||||||||
4 | CBR bursting strength /kN ≥ | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3.0 | 3.2 | |
5 | Vertical and horizontal tear strength / kN ≥ | 0.15 | 0.25 | 0.32 | 0.40 | 0.48 | 0.56 | 0.62 | 0.70 | |
8 | Vertical Permeability Index / ( cm / s) | According customer needs | ||||||||
9 | Width deviation /% | -1.0 | ||||||||
Item | Membrane thickness/mm | |||||||||
0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 1.0 | |||
Hydrostatic pressure resistance / MPa | 1 fabric with 1 membrane | 0.4 | 0.5 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 | |
2 fabric with 1 membrane | 0.5 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 | 1.8 | ||
