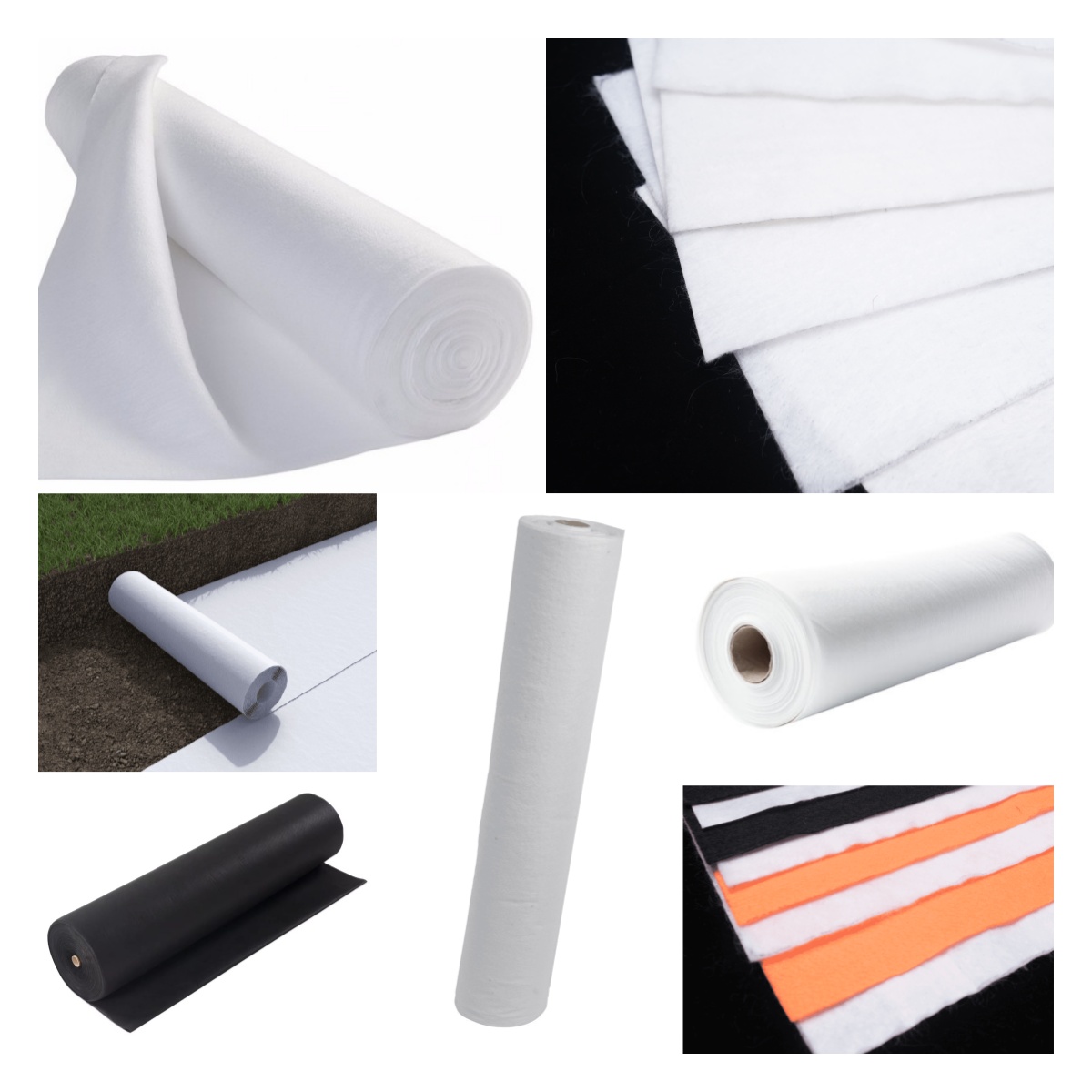

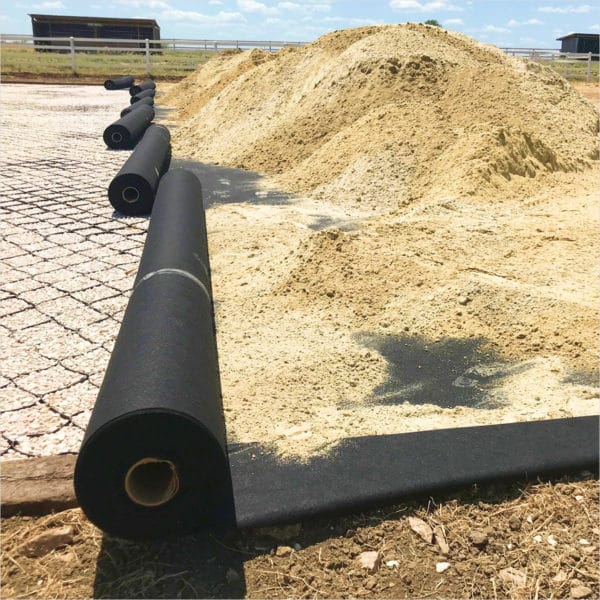

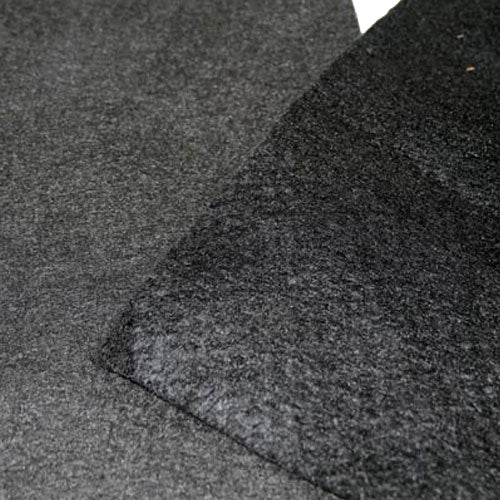

Black high strength polypropylene drainage nonwoven geotextile
PP non-woven geotextile is a non-woven material made of polypropylene fiber and is generally used in civil engineering, gardening and environmental protection fields. Compared with frequent geotextiles, PP non-woven geotextiles have increased strength, greater water and air permeability.
Product descriptions from the supplier
:
:
:
: PP (Polypropylene)
:
1m-6m(Customizable) :
50m-200m/Roll (Customizable) :
:
:
: ISO9001/ISO14001/ISO45001/CE-CCSD23010543609/CRCC
: Within 10 years (Based on actual product conditions)
: Online technical support, installation training, on-site guidance..
Product Features
1. High strength: PP geotextiles have excessive tensile electrical energy and tear resistance, which can correctly adorn the steadiness of soil.
2. Corrosion resistance: Due to the use of polypropylene material, PP geotextile has sturdy corrosion resistance and is high-quality for a extensive range of environmental conditions.
3. Aging resistance: PP geotextile has advantageous anti-aging performance and can hold steady ordinary ordinary overall performance for a extended time.
4. Water and air permeability: It has a positive diploma of water permeability and air permeability, which is truely really helpful to soil moisture steadiness and drainage.
5. Environmental protection: PP geotextile is a inexperienced and environmentally quality material, has no air air air pollution to the surroundings and meets the necessities of sustainable development.

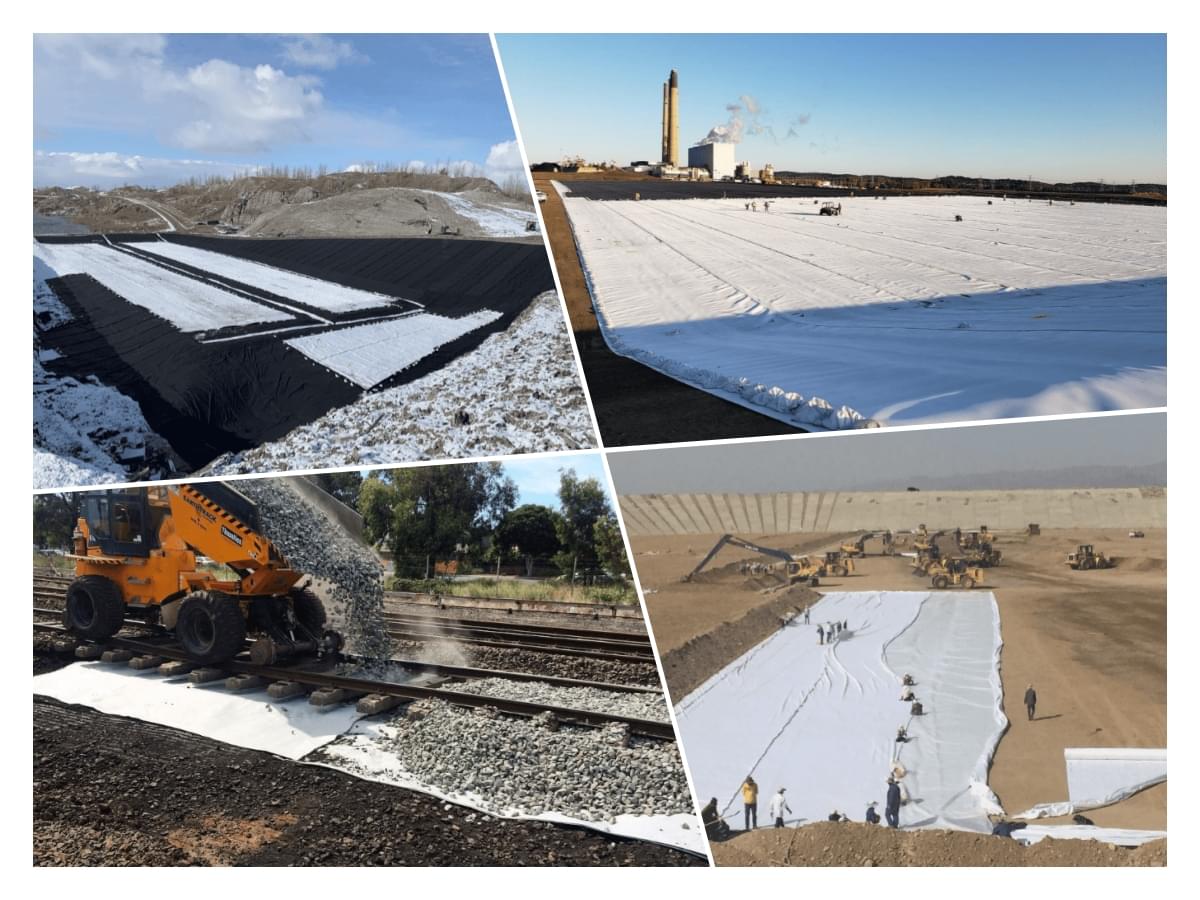

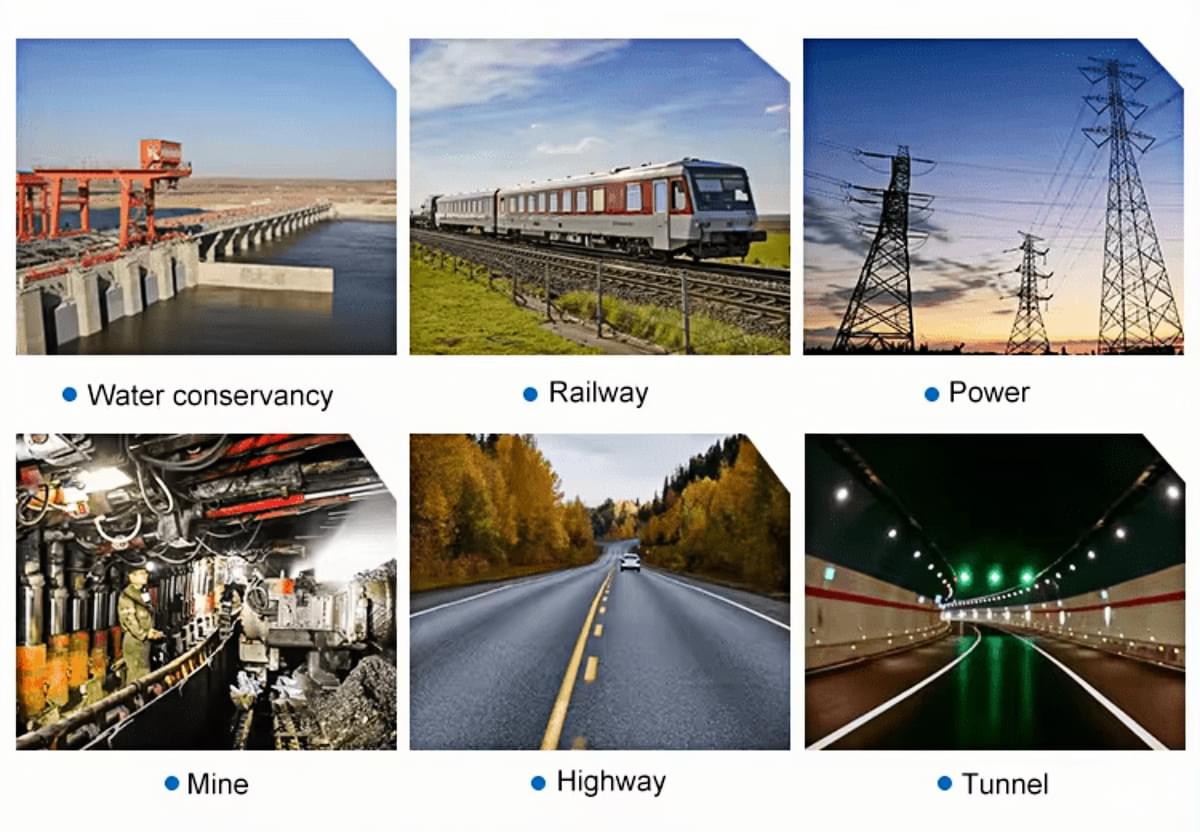

Product Application
1. Road engineering: PP geotextile can be used to aid and drain the avenue base, cease roadbed deformation or settlement, and decorate the load-bearing performance and steadiness of the road.
2. Water conservancy projects: In water conservancy projects, PP geotextiles are oftentimes used to aid dams, end river economic crew erosion, end leakage at the backside of reservoirs, and improve soil and water conservation.
3. Environmental safety projects: PP geotextile can be used in environmental safety obligations such as the anti-seepage layer of landfills and the defending layer of compost net web sites to end seepage and guard soil and water sources.
4. Construction projects: In enchancment projects, PP geotextiles can be used as groundwork load-bearing reinforcement materials, wall water resistant materials, basement anti-seepage materials, etc. to enhance the steadiness and sturdiness of the setting up structure.
5. Garden projects: PP geotextile can be used in landscaping initiatives as a soil protecting layer or planting layer to assist soil safety and plant growth.
Product indicators
Properties | Test Method | Unit | TW-DP 100 | TW-DP 150 | TW-DP 200 | TW-DP 250 | TW-DP 300 | TW-DP 350 | TW-DP 400 | TW-DP 500 | TW-DP 600 | TW-DP 700 | TW-DP 800 |
Tensile Strength (MD/TD) | ASTM D4595 | kN/m | 6 | 9.5 | 13 | 17 | 19 | 23 | 26 | 34 | 38 | 42 | 48 |
Tensile Elongation (MD/TD) | ASTM D4595 | % | 50 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
Grab Tensile Strength (MD/TD) | ASTM D4632 | N | 450 | 550 | 730 | 1000 | 1100 | 1400 | 1700 | 2000 | 2500 | 2700 | 3000 |
Grab Elongation (MD/TD) | ASTM D4632 | % | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 70 | 70 |
Trapezoidal Tear Strength (MD/TD) | ASTM D4533 | N | 220 | 270 | 330 | 430 | 450 | 540 | 610 | 770 | 810 | 900 | 1000 |
CBR Burst Strength | ASTM D6241 | N | 1250 | 1800 | 2300 | 2800 | 3200 | 3600 | 4500 | 5600 | 6400 | 7500 | 8000 |
Pore Size O90 | ASTM D4751 | µm | 110 | 110 | 110 | 100 | 100 | 90 | 80 | 70 | 70 | 70 | 70 |
Water Flow Q100 | ASTM D4491 | L/m2/s | 250 | 235 | 210 | 190 | 170 | 160 | 125 | 100 | 80 | 60 | 60 |
U.V. Resistance | ASTM D4355 | %@500h | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
Thickness | ASTM D5199 | mm | 1 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.4 | 4.2 | 4.6 | 5 |
Weight | ASTM D5261 | g/m2 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 700 | 800 |
Roll Width | - | m | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Roll Length | - | m | 250 | 250 | 150 | 150 | 100 | 100 | 100 | 75 | 50 | 50 | 50 |

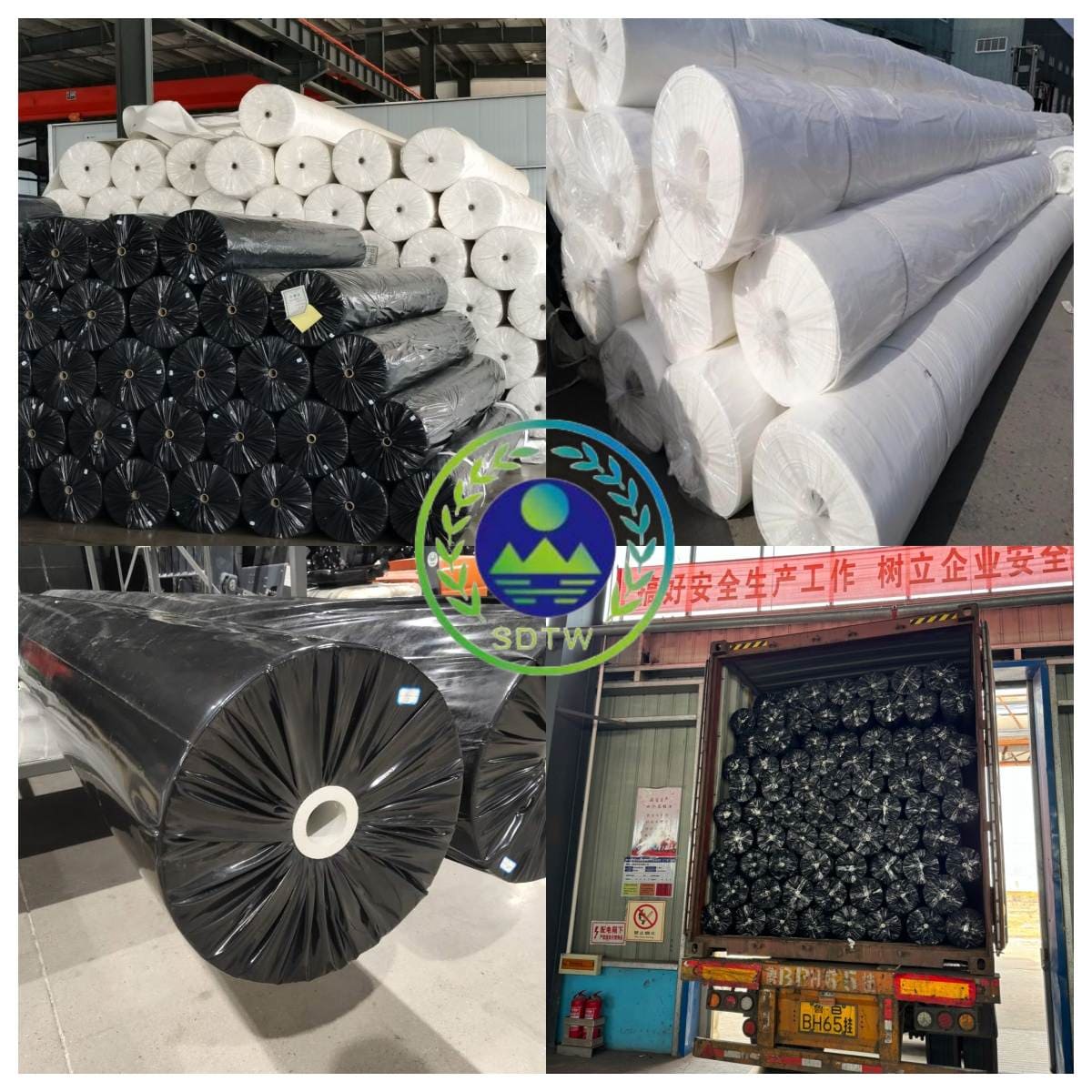

Packaging and Transportation
Company Introduction
FAQ
Can you design for us?
We have a professional design team to help our clients with their design work.
Do you accept processing orders?
We provide OEM and ODM services to customers.
Can we get the sample from your factory?
We can provide you with samples for free, but you need to pay the express fee before the first cooperation.
Can you have our brand printed on your products?
Yes. If you can meet our MOQ, we can print your logo on the product and packaging.
How do you guarantee the quality of the product for us?
We have a professional quality control team, and each product is strictly inspected before shipment.
How long is your delivery time?
Small orders take about one week, large orders need to be negotiated based on factory orders.
What is your method of payment?
We accept T/T, L/C, Western Union or negotiation. Don't worry about anything, if you have any questions please feel free to contact us.
