Good Tensile Strength PP Geotextile

Spunbonded nonwoven

Material: PP

Colors: white, black, green, orange, personalized for statistical coloring

Specification: 100g-800g

Length: 50-200m

Certificate: CE/ISO9001

Support personalized hues and width lengths. Please inform purchaser carrier if there are any different necessities


Contact Now E-Mail Telephone WhatsApp
Product Details

Product introduction:

Short fiber geotextile is a type of geosynthetic material usually used in civil engineering and geotechnical applications. It is made from synthetic fibers that are mechanically bonded or needle-punched together to structure a constant cloth structure.


Product characteristics:

1.Filtration: The material shape of rapid fiber geotextile approves water to pass over by using potential of way of performance of by means of the usage of way of at the equal time as maintaining soil particles. This filtration property makes it really helpful in sides such as drainage constructions and erosion control, the place it helps in stopping the clogging of soils and marketing and advertising and advertising and marketing splendid water flow.

2.Separation: Short fiber geotextile acts as a separator between distinctive soil layers or property with one-of-a-kind characteristics. By stopping the mixing of these layers, it continues their persona integrity and enhances frequent stability. Common examples consist of its use in avenue construction, the vicinity it separates the subgrade from the asphalt or concrete layers.

3.Reinforcement: The excessive tensile electrical energy of speedy fiber geotextile offers reinforcement to soil and organising materials. It will make greater their load-bearing attainable and helps in controlling settlements or deformations. This property is in the predominant actually encouraged in sides such as slope stability, maintaining walls, and landfill liners.

4.Protection: Short fiber geotextile can be used to defend geomembranes, waterproofing layers, and great sensitive sources from mechanical injury at some stage in enchancment or long-term use. It acts as a cushioning layer, stopping punctures or abrasions.

5.Durability: Made from artificial fibers, quick fiber geotextile affords resistance to degradation from UV radiation, chemicals, and herbal factors. It has a extended lifespan that ensures its effectiveness over time.

  Good Tensile Strength PP Geotextile Good Tensile Strength PP Geotextile

Application scope:

1、Highway and railroad construction: It is used as isolation and filtration layer in the grass-roots stage of toll highway, roadbed and railroad mattress system.
2、Erosion prevention and control: used for shoreline protection, river embankment and steep slope stabilization, terminate soil erosion and promote vegetation growth.
3. Drainage systems: mixed with underground drainage systems, septic tank drain fields, and stormwater administration planning to attain drainage and filtration of water round the human body.
4. Landfill and Waste Management: Used as a protection barrier in landfill liners, capping and waste manipulate constructions to quit soil contamination.
5. Landscaping and Agriculture: Used in landscaping for weed control, soil stabilization and reinforcement. Used in agriculture for erosion control, irrigation laptop computer filtration and pond liner safety.

Good Tensile Strength PP Geotextile Good Tensile Strength PP Geotextile



Specifications


Staple Fiber Needled Non-woven Geotextile Technical  Specifications ( GB/T17638-1998)

No.

Item

Specifications

Note

100

150

200

250

300

350

400

450

500

600

800

1

Unit area mass  deviation

-8

-8

-8

-8

-7

-7

-7

-7

-6

-6

-6


2

Thickness mm≥

0.9

1.3

1.7

2.1

2.4

2.7

3.0

3.3

3.6

4.1

5.0

3

Width deviation

-0.5

4

Breaking strength

2.5

4.5

6.5

8.0

9.5

11

12.5

14.0

16.0

19.0

25.0

Vertical and horizontal

5

Elongation at break %

20-100

6

CBR bursting strength

0.3

0.6

0.8

1.2

1.4

1.8

2.1

2.4

2.7

3.2

4.0


7

Equivalent aperture

0.07-0.2


8

Vertical permeability  coefficient

K*(10-1~10-3

K=1.0-9.9

9

Tear strength

0.08

0.12

0.16

0.20

0.24

0.28

0.33

0.38

0.42

0.46

0.6

Vertical and  horizontal

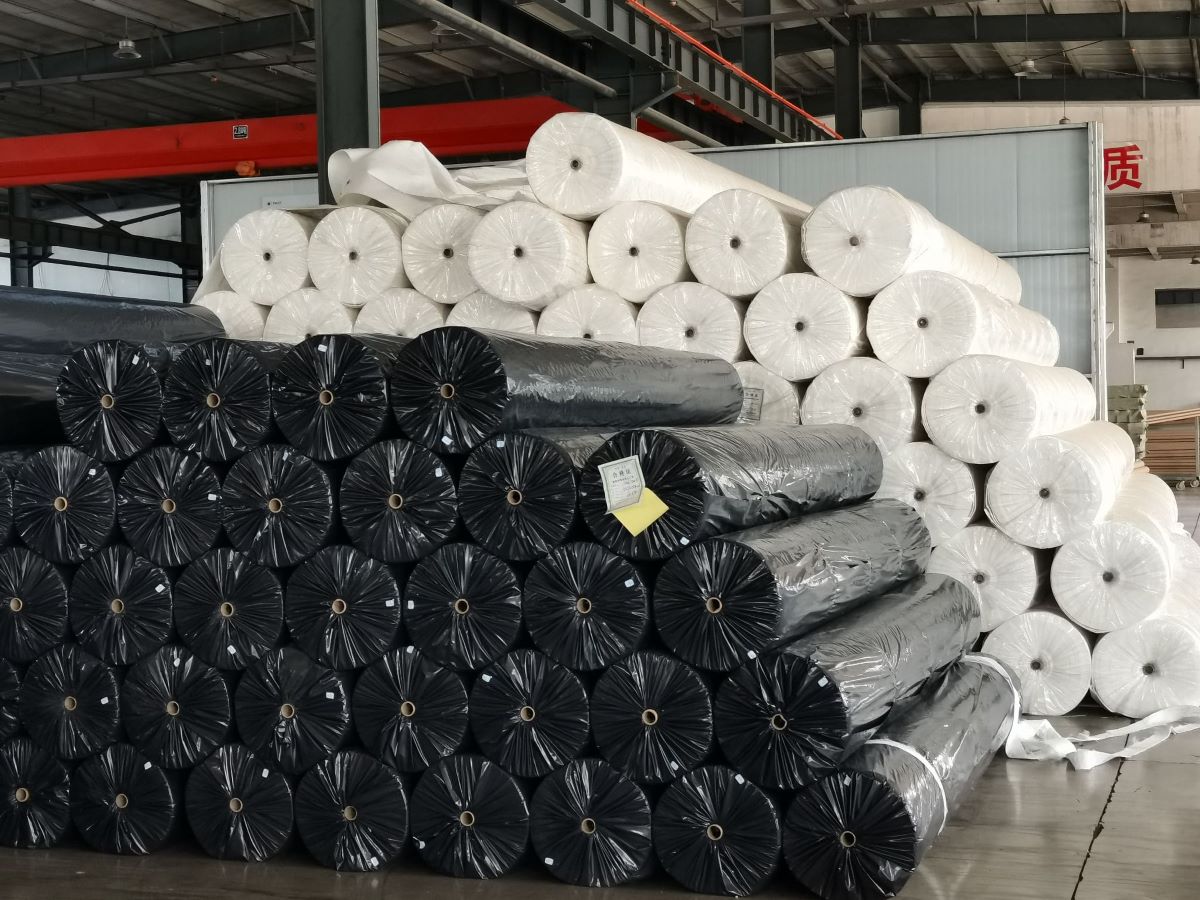

Packing of Top Quality Nonwoven Polypropylene Geotextile Price

You can freely choose PE film or PP woven bag for outer packaging, and there are paper tubes of different sizes inside the product for you to choose freely.
