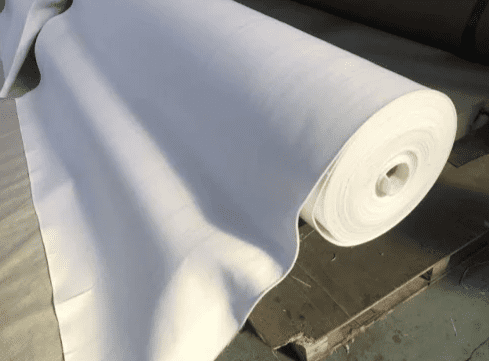

Short Fiber PP Non-woven Geotextile for Water Conservancy Engineering
Spunbonded nonwoven
Material: PET/PP
Colors: white, black, green, orange, personalized for statistical coloring
Specification: 100g-800g
Length: 50-200m
Certificate: CE/ISO9001
Support personalized hues and width lengths. Please inform purchaser carrier if there are any different necessities
Product introduction:
Short fiber geotextile is a type of geosynthetic material usually used in civil engineering and geotechnical applications. It is made from synthetic fibers that are mechanically bonded or needle-punched together to structure a constant cloth structure.
Product characteristics:
1.Filtration: The cloth structure of speedy fiber geotextile approves water to miss by means of way of functionality of by using way of at the equal time as preserving soil particles. This filtration property makes it advisable in facets such as drainage constructions and erosion control, the region it helps in stopping the clogging of soils and advertising and marketing and advertising tremendous water flow.
2.Separation: Short fiber geotextile acts as a separator between special soil layers or property with one-of-a-kind characteristics. By stopping the mixing of these layers, it continues their persona integrity and enhances common stability. Common examples consist of its use in avenue construction, the place it separates the subgrade from the asphalt or concrete layers.
3.Reinforcement: The immoderate tensile electricity of fast fiber geotextile gives reinforcement to soil and organising materials. It will make bigger their load-bearing achievable and helps in controlling settlements or deformations. This property is in the predominant really recommended in facets such as slope stability, preserving walls, and landfill liners.
4.Protection: Short fiber geotextile can be used to protect geomembranes, waterproofing layers, and wonderful touchy sources from mechanical damage at some stage in enchancment or long-term use. It acts as a cushioning layer, stopping punctures or abrasions.
5.Durability: Made from synthetic fibers, fast fiber geotextile affords resistance to degradation from UV radiation, chemicals, and natural factors. It has a prolonged lifespan that ensures its effectiveness over time.
Application scope:

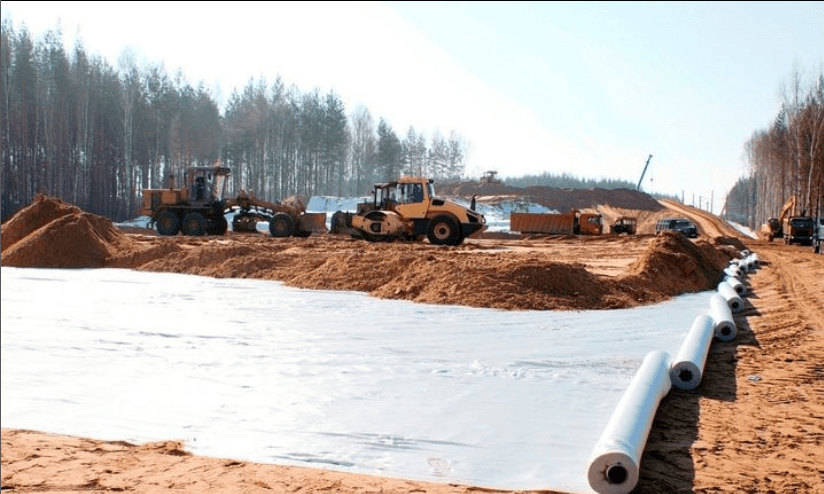

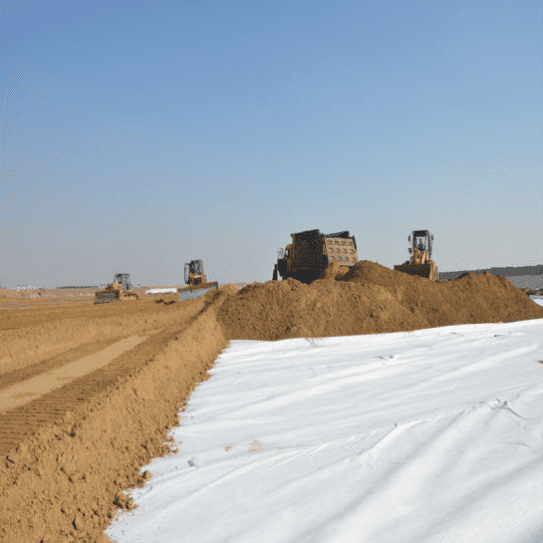

1. Highway and railway construction: used as isolation and filtering layers in the toll motorway base, roadbed, and railway ballast systems.
2. Erosion prevention and control: Used for shoreline protection, river embankment and steep slope stabilization, to stop soil erosion and promote vegetation growth.
3. Drainage system: Combined with the underground drainage system, septic tank drainage field, and rainwater administration planning, the drainage and filtration of the surrounding water our bodies can be achieved.
4. Landfill and Waste Management: Used as protecting limitations in landfill liners, caps, and waste manage constructions to stop soil contamination.

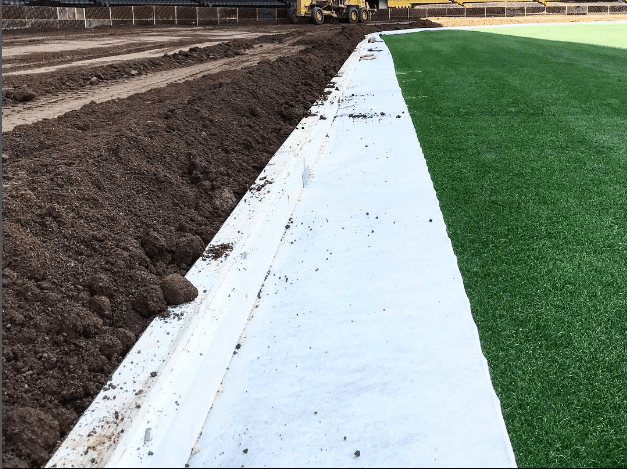

5. Landscaping and Agriculture: Used for weeding, soil stabilization and reinforcement in landscaping. Used in agriculture for erosion control, irrigation laptop filtration and pond liner safety.
Specifications
Staple Fiber Needled Non-woven Geotextile Technical Specifications ( GB/T17638-1998) | |||||||||||||
No. | Item | Specifications | Note | ||||||||||
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |||
1 | Unit area mass deviation | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 |
|
2 | Thickness mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
3 | Width deviation | -0.5 | |||||||||||
4 | Breaking strength | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | Vertical and horizontal |
5 | Elongation at break % | 20-100 | |||||||||||
6 | CBR bursting strength | 0.3 | 0.6 | 0.8 | 1.2 | 1.4 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 |
|
7 | Equivalent aperture | 0.07-0.2 |
| ||||||||||
8 | Vertical permeability coefficient | K*(10-1~10-3) | K=1.0-9.9 | ||||||||||
9 | Tear strength | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Vertical and horizontal |
Packing of Top Quality Nonwoven Polypropylene Geotextile Price
You can freely choose PE film or PP woven bag for outer packaging, and there are paper tubes of different sizes inside the product for you to choose freely.
Staple Fiber Needled Non-woven Geotextile Technical Specifications ( GB/T17638-1998) | |||||||||||||
No. | Item | Specifications | Note | ||||||||||
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |||
1 | Unit area mass deviation | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | 6 | -6 |
|
2 | Thickness mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
3 | Width deviation | -0.5 | |||||||||||
4 | Breaking strength | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | Vertical and horizontal |
5 | Elongation at break % | 20-100 | |||||||||||
6 | CBR bursting strength | 0.3 | 0.6 | 0.8 | 1.2 | 1.4 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 |
|
7 | Equivalent aperture | 0.07-0.2 |
| ||||||||||
8 | Vertical permeability coefficient | K*(10-1~10-3) | K=1.0-9.9 | ||||||||||
9 | Tear strength | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Vertical and horizontal |
