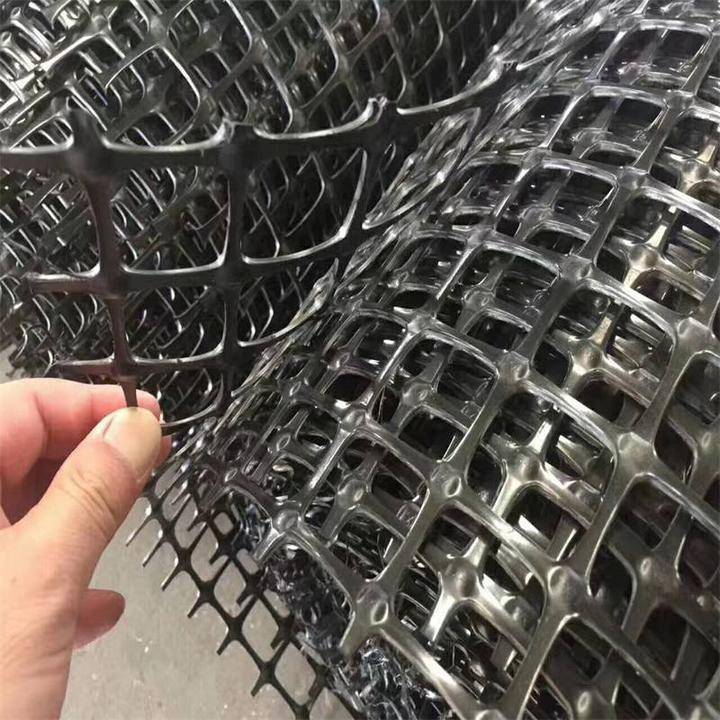

Two-way Plastic Geogrid

Two-way Plastic Geogrid

Plastic two-way grid is a fundamental geosynthetic cloth of two-way geogrid. Compared with different geosynthetic materials, it has special overall performance and efficacy. Bidirectional geogrids are frequently used as reinforcement substances for strengthened soil buildings or reinforcement substances for composite materials. Geogrids are divided into 4 categories: plastic geogrids, steel-plastic geogrids, glass fiber geogrids and glass fiber polyester geogrids.

Features:

1: High strength, small creep, appropriate for a range of environmental soils, and can be used for tall protecting partitions in high-grade highways.

2: It can efficiently enhance the interlocking and occlusion of the bolstered bearing surface, substantially decorate the bearing ability of the foundation, efficiently restrain the lateral displacement of the soil, and decorate the balance of the foundation.

3: Compared with the ordinary grille, it has the traits of excessive strength, robust bearing capacity, corrosion resistance, anti-aging, massive friction coefficient, uniform holes, handy construction, and lengthy carrier life.

4: It is extra appropriate for deep-sea operations, embankment reinforcement, and essentially solves the technical issues of low strength, bad corrosion resistance, and brief provider existence precipitated by using long-term seawater erosion of gabions made of different materials.

5: It can correctly keep away from development harm prompted by way of being overwhelmed and broken through machines and equipment for the duration of the building process.

Application :

Plastic two-way grating is appropriate for reinforcement of a number embankments and roadbeds, slope protection, cave wall reinforcement, basis reinforcement for everlasting masses such as giant airports, parking lots, wharf yards, etc.

1. Increase the bearing ability of the street (ground) basis and lengthen the carrier lifestyles of the avenue (ground) foundation.

2. Prevent the street (ground) floor from subsidence or cracks, and hold the floor lovely and tidy.

3. Convenient construction, saving time and effort, shortening the development length and lowering protection costs.

4. Prevent cracks in culverts.

5. Strengthen the soil slope to forestall soil erosion.

6. Reduce the thickness of the cushion and keep the cost.

7. Support the secure inexperienced surroundings of slope grass planting mat.

8. It can change steel mesh and be used for false roof mesh in coal mines.

Equipment of Two-way Plastic Geogrid

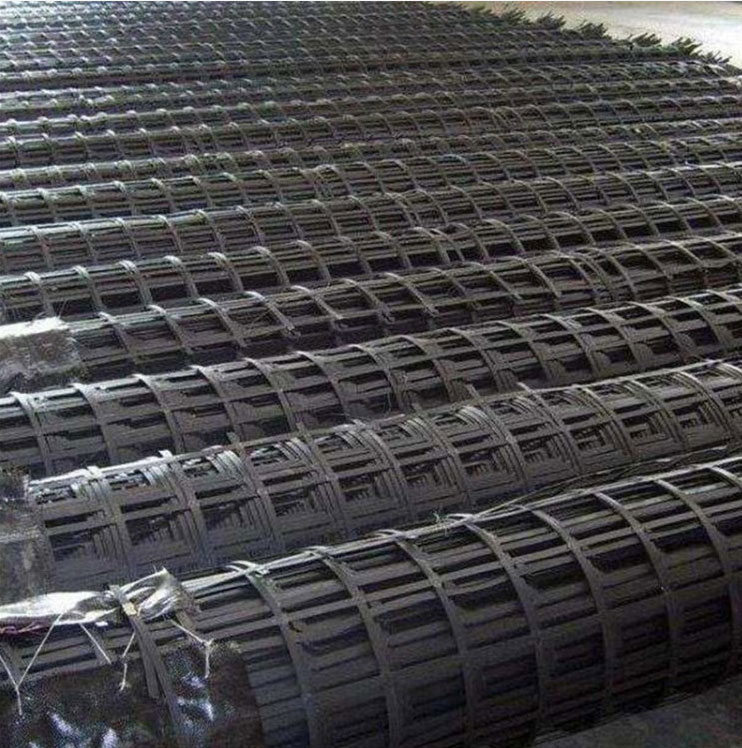

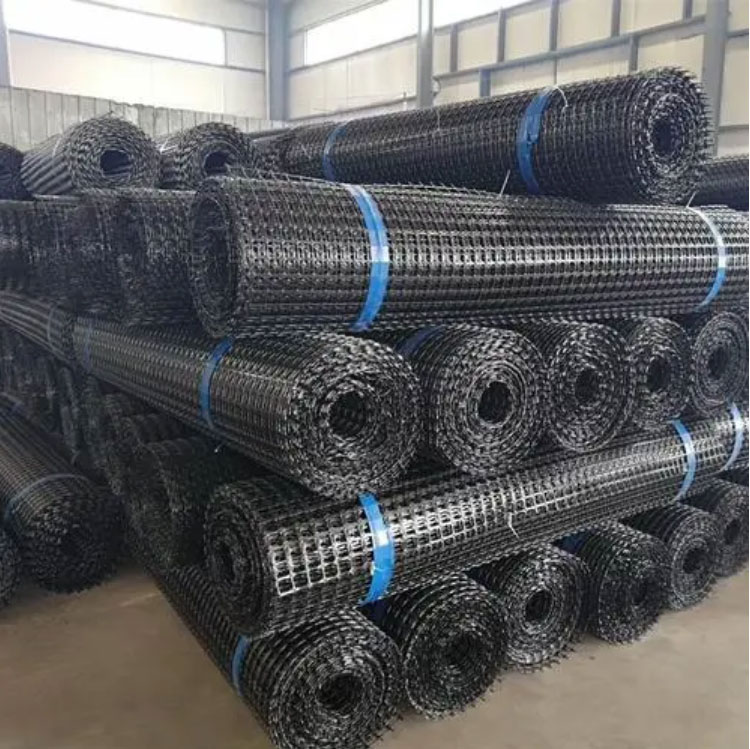

Packing of Two-way Plastic Geogrid

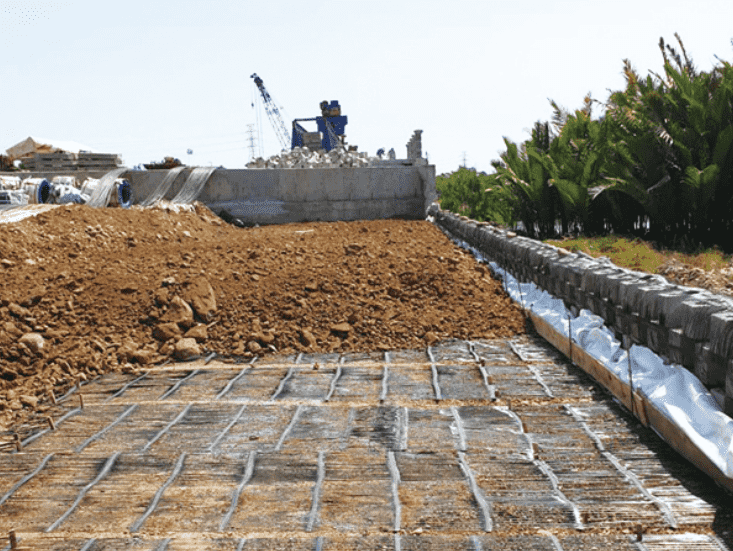

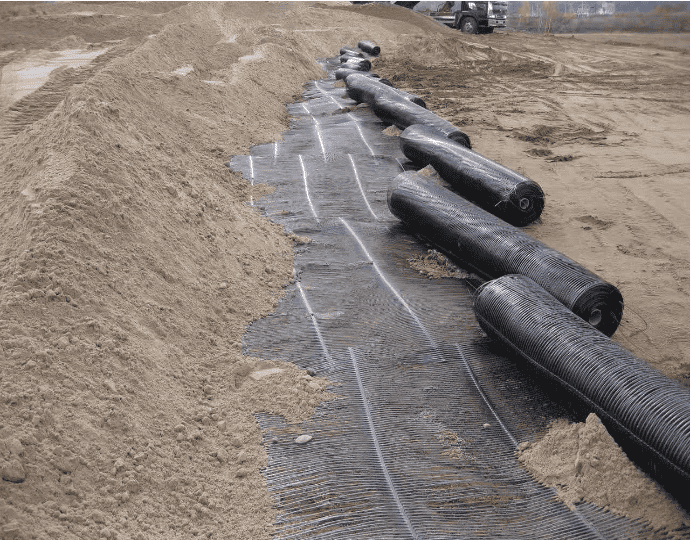

Construction of Two-way Plastic Geogrid

When the plastic two-way grid is used for subgrades and road surfaces, excavate the foundation bed, set up a sand cushion (the height difference is not greater than 10cm), roll it into a platform, and lay the grid. The longitudinal axis should be consistent with the main force direction. Lap 15-20cm, horizontal 10cm, tie the lap with plastic tape, and fix it on the ground with U-shaped nails every 1.5-2m on the laid grid. The laid geogrid should be backfilled with soil materials in time. The number of geogrid layers depends on the technical requirements.
