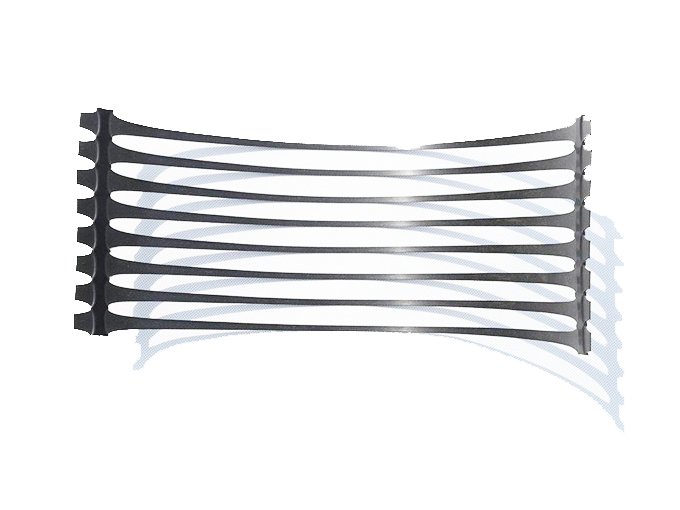

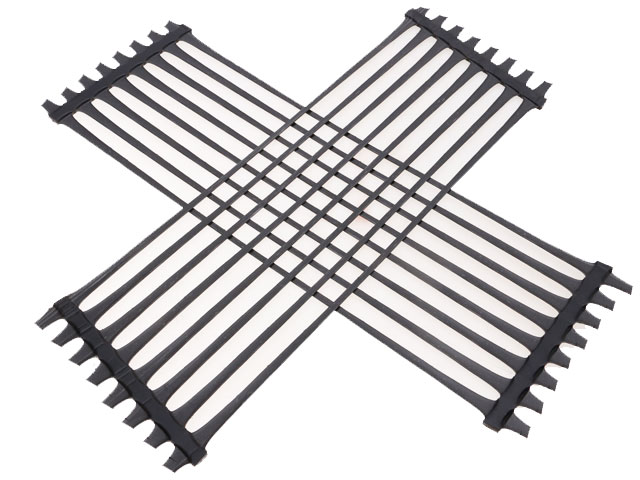

One-way tensile plastic geogrid roadbed reinforcement

Geogrids are divided into

1.There are four major categories of plastic geogrids, steel plastic geogrids, glass fiber geogrids, and polyester warp knitted polyester geogrids.

2.Grille is a two-dimensional grid or three-dimensional grid with a certain height formed by thermoplastic or molded high polymer materials such as polypropylene and polyvinyl chloride.



  Contact Now E-Mail Telephone WhatsApp
Product Details

                                                     Geotechnical materials for road construction reinforcement Geogrid Mesh

Product Introduction:

The Uniaxial Tensile Plastic Geogrid is a flexible and durable soil reinforcement solution designed to enhance the strength and stability of soil structures. This geogrid is widely used in various civil engineering and construction projects to improve soil retention, prevent soil erosion, and provide a stable base for infrastructure development.

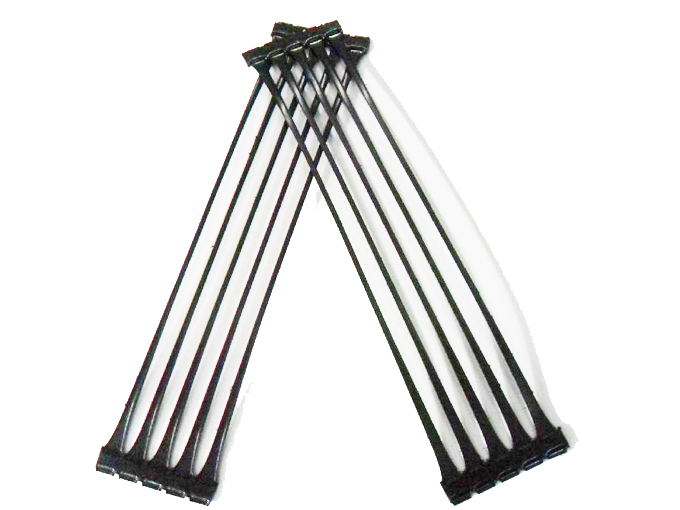

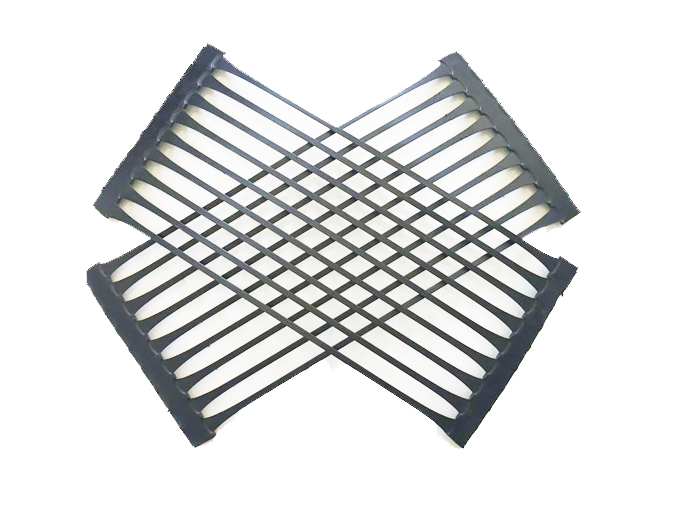

One-way tensile plastic geogrid roadbed reinforcement One-way tensile plastic geogrid roadbed reinforcement

Features:

  1. High Strength: The geogrid is manufactured using high-density polyethylene (HDPE) material, which gives it exceptional tensile strength. It can withstand heavy loads and effectively distribute tension across soil structures.

  2. Uniaxial Tensile Properties: Designed with unidirectional stretching capability, this geogrid is perfect for soil reinforcement in applications that primarily require tensile strength along one direction.

  3. Easy Installation: The lightweight and flexible design of the geogrid allows for easy handling and quick installation. It can be easily unrolled and secured to the soil surface, minimizing labor and installation time.

  4. Chemical and UV Resistance: The HDPE material is chemically inert, making it resistant to degradation caused by chemicals commonly found in soil. Additionally, the geogrid is UV stabilized, ensuring long-term performance even in harsh environmental conditions.

  5. Improved Soil Load Distribution: By interlocking with the soil particles, the geogrid effectively distributes the applied loads, preventing soil settlement and maintaining stability.

  6. Cost-Effective Solution: The use of Uniaxial Tensile Plastic Geogrid reduces the need for excessive excavation and replacement of soil, resulting in cost savings and improved project feasibility.

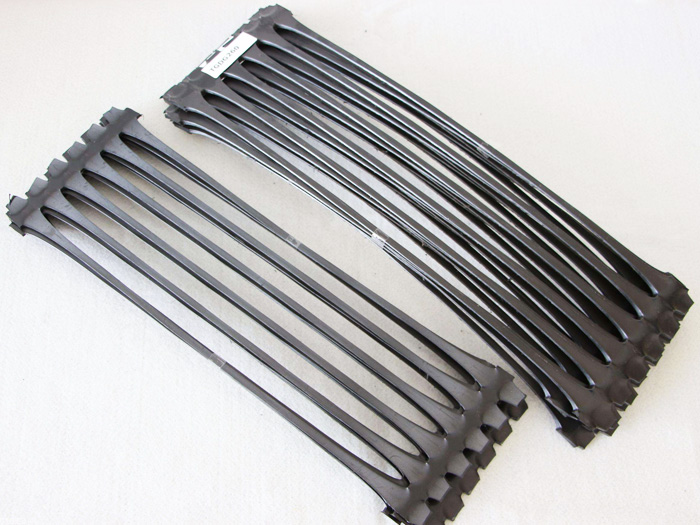

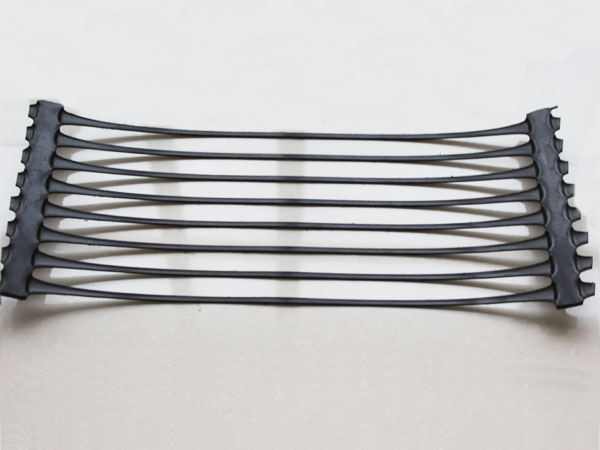

One-way tensile plastic geogrid roadbed reinforcement One-way tensile plastic geogrid roadbed reinforcement

Application :

  1. Retaining Walls: The geogrid can be used to reinforce soil structures in retaining walls, preventing soil movement and maintaining stability.

  2. Slope Stabilization: It is an ideal solution for stabilizing slopes and preventing soil erosion. The geogrid enhances soil shear resistance, minimizing the risk of slope failure.

  3. Road Construction: Used as a reinforcement layer in road construction, the geogrid improves the load-bearing capacity of the soil, reducing deformation and extending the lifespan of roads.

  4. Landfill Systems: The geogrid is widely used in landfill applications to enhance the stability and integrity of liners and caps, preventing soil contamination.

  5. Foundations: It provides additional strength and stability to foundation soils, minimizing settlement and ensuring the structural integrity of buildings and infrastructure.

One-way Stretch Plastic Geogrid GB/T17689-1999

Item

Specification

TGDG25

TGDG35

TGDG50

TGDG80

TGDG110

TGDG150

TGDG170

TGDG200

TGDG220

TGDG240

TGDG260

TGDG280

TGDG300

Tensile strength KN/m≥

25

35

50

80

110

150

170

200

220

240

260

280

300

Standard elongation %≤

10.0

Tensile strength at 2% elongation KN/m≥

6

10

12

26

30

39

45

56

59

65

78

84.5

90

Tensile strength at 5% elongation KN/m≥

12

22

28

48

60

77

90

112

120

132

157

170

182

Creep Ultimate Strength KN/m≥

11

15

21

30.2

41

49

57

64

71.5

79

86

91.5

100

Width (m)

1~3

Packing of One-way Stretch Plastic Geogrid


Geotechnical materials for road construction reinforcement Geogrid Mesh Geotechnical materials for road construction reinforcement Geogrid Mesh

One-way Stretch Plastic Geogrid GB/T17689-1999

Item

Specification

TGDG25

TGDG35

TGDG50

TGDG80

TGDG110

TGDG150

TGDG170

TGDG200

TGDG220

TGDG240

TGDG260

TGDG280

TGDG300

Tensile strength KN/m≥

25

35

50

80

110

150

170

200

220

240

260

280

300

Standard elongation %≤

10.0

Tensile strength at 2% elongation KN/m≥

6

10

12

26

30

39

45

56

59

65

78

84.5

90

Tensile strength at 5% elongation KN/m≥

12

22

28

48

60

77

90

112

120

132

157

170

182

Creep Ultimate Strength KN/m≥

11

15

21

30.2

41

49

57

64

71.5

79

86

91.5

100

Width (m)

1~3
