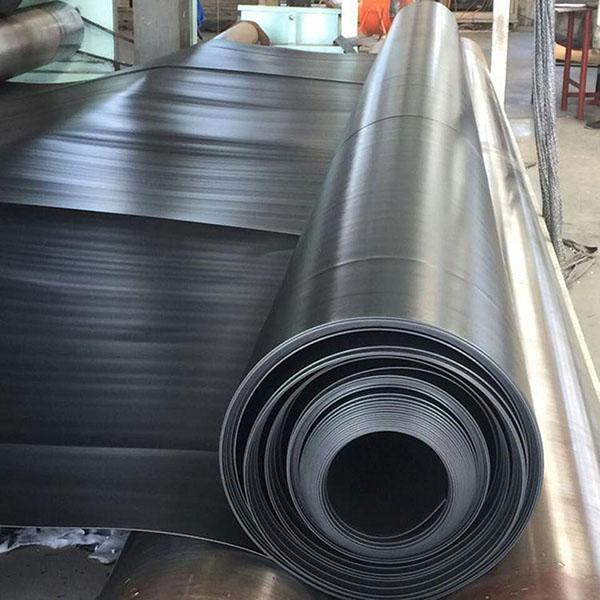

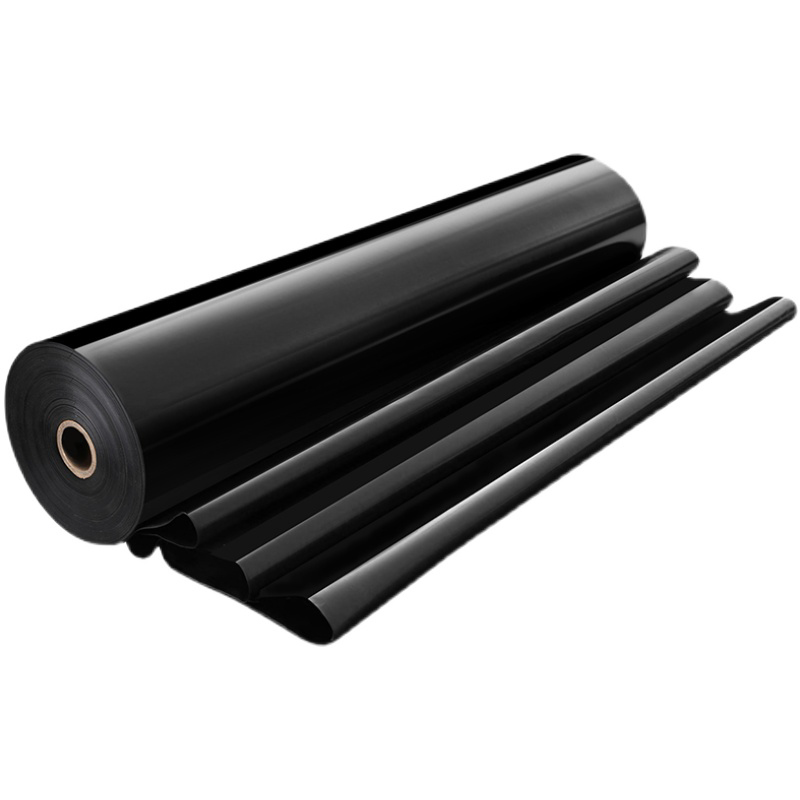

High Quality HDPE Geomembrane Pond Liner

High Quality HDPE Geomembrane Pond Liner-HDPE Geomembrane liner is the preferred product for lining projects. HDPE geomembrane is resistant to many extraordinary solvents and are the most notably used geomembrane liner in the world. Although HDPE geomembrane is lots much less flexible than LLDPE, it offers larger special electrical energy and can stand up to increased temperatures.

High Quality HDPE Geomembrane Pond Liner is extraordinary chemical and ultraviolet resistance residences make it an pretty price range pleasant product.Geomembrane are made of pinnacle fee Polyethylene (HDPE or LLDPE) resins which are specifically processed.

These supplies are first-rate in maintaining water and prevents seepage thru growing an Impermeable Liner. Geomembranes provides an excessive satisfactory and surroundings pleasant reply for waterproofingSave layer on a wide variety applications.


  Contact Now E-Mail Telephone WhatsApp
Product Details

High Quality HDPE Geomembrane Pond Liner

Geomembrane is a geotechnical anti-seepage fabric composed of plastic movie as the anti-seepage base cloth and non-woven fabric. The anti-seepage overall performance of the new fabric geomembrane broadly speaking relies upon on the anti-seepage overall performance of the plastic film. The plastic movies used for anti-seepage at domestic and overseas ordinarily consist of polyvinyl chloride (PVC), polyethylene (PE), EVA (ethylene/vinyl acetate copolymer), and ECB (ethylene vinyl acetate modified asphalt copolymer) is additionally designed for tunnel applications. They are polymer chemical bendy substances with small precise gravity, robust extensibility, excessive adaptability to deformation, corrosion resistance, low temperature resistance, and excellent frost resistance.

Product specification:

Thickness: 0.3-3mm; Width: 4-8m size in accordance to consumer requirements.

Features:

Geomembrane is a water-proof barrier material based totally on excessive molecular polymer.

Main Product: High Density Polyethylene (HDPE) Geomembrane

1. Complete width and thickness specifications.

2. It has super environmental stress cracking resistance and exquisite chemical corrosion resistance.

3. Excellent chemical corrosion resistance.

4. It has a giant running temperature vary and a lengthy provider life.

5. Used in landfills, tailings storage sites, channel anti-seepage, dam anti-seepage and subway projects, etc.

Application:

As a mature anti-seepage technology, polyethylene geomembrane has been broadly used in a number bolstered anti-seepage tasks such as tunnels, airports, metallurgical water conservancy, transportation, mine tailings, rubbish disposal sites, and roof anti-seepage, mainly in water conservancy projects. play an necessary function in the mainstay.

Product Implementation Standards: America GRI GM-13 Standard


HDPE Geomembrane Technical Parameter (GRI GM13 ASTM Standard)

Spec Properties

Test
method ASTM

GMS0.5

GMS0.75

GMS1.0

GMS1.25

GMS1.5

GMS2.0

GMS2.5

Thickness

D5199

0.5mm

0.75mm

1.00mm

1 .25mm

1.50mm

2.00mm

2.50mm

Density (≥ g/cc)

D1505

0.940

0.940

0.940

0.940

0.940

0.940

0.940

Tensile Properties
(Each direction)(≥)
•   yield strength
•   break strength
•   yield elongation
•   break elongation

D6693 Type IV

8 kN/m   14 kN/m 12%    700%

11 kN/m
20 kN/m
12%
700%

15 kN/m
27 kN/m
12%
700%

18 kN/m
33 kN/m
12%    700%

22 kN/m 40 kN/m 12%    700%

29kN/m 53 KN/m 12%    700%

37kN/m 67kN/m 12%    700%

Tear Resistance (≥)

D 1004

64N

93N

125 N

156N

187N

249 N

311 N

Puncture Resistance(≥)

D 4833

160N

240N

320 N

400 N

480N

640 N

800 N

Stress Crack Resistance (≥)

D 5397

300 hr

300 hr

300 hr

300 hr

300 hr

300 hr

300 hr

Carbon Black Content

D 1603

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

Carbon Black Dispersion

D 5596

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Oxidative Induction Time(OIT)(≥)       (a)Standard OIT                  ——or——
(b)High Pressure OIT

D 3895      D 5885

100 min
400 min

100 min
400 min

100 min
400 min

100 min
400 min

100 min
400 min

100 min
400 min

100 min
400 min


Packing of High Quality HDPE Geomembrane Pond Liner

HDPE Geomembrane HDPE Geomembrane


Equipment of High Quality HDPE Geomembrane Pond Liner




Usage Scenarios of High Quality HDPE Geomembrane Pond Liner

HDPE Geomembrane HDPE Geomembrane

HDPE Geomembrane HDPE Geomembrane

Company Profile

The company's primary industries encompass geosynthetics, geotextiles and plastic products, and its merchandise have hooked up a excellent manufacturer photo in home and overseas markets. The organization has best manufacturing equipment, and can grant more than a few geotechnical substances in accordance to consumer requirements, which are divided into various categories: geotextile, geomembrane, geogrid, drainage board, composite geomembrane, bentonite water-resistant blanket, geocell, geotechnical internet etc.
